AGCO DT180A, DT200A, DT220A, DT240A Tractor Workshop Service Manual Workshop Guide

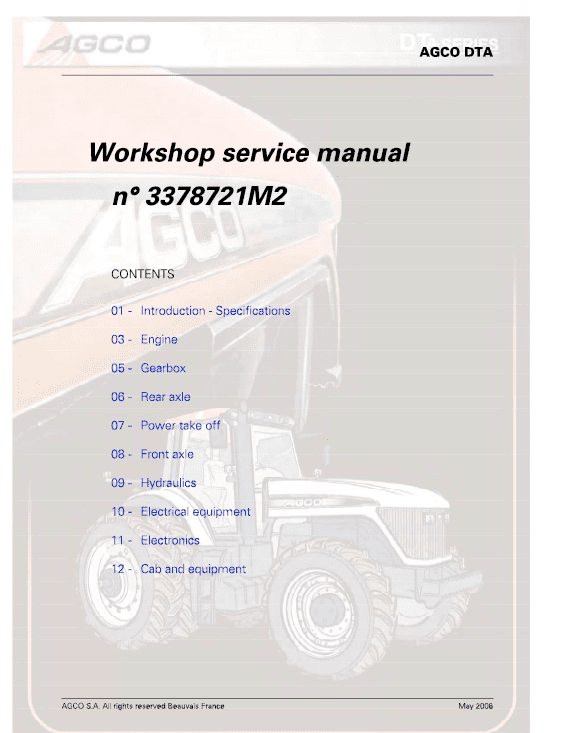

AGCO DT180A, DT200A, DT220A, DT240A Tractor Manual : 1263 Pages AGCO Parts Catalog : 398 Pages Format: PDF Book Number: 3378721M2 English Issued May 2006 Description AGCO DT180A, DT200A, DT220A, DT240A Tractor Manual Manual for: AGCO DTA Tractor Format: PDF Book Number: 3378721M2 English Issued May 2006 AGCO DT180A, DT200A, DT220A, DT240A Tractor Manual : 1263 Pages AGCO Parts Catalog : 398 Pages Manual TABLE OF CONTENTS Introduction Specification Engine Gearbox Rear Axle Power take off Front Axle Hydraulics Electrical Equipment Electronics Cab and equipment DT180A, DT200A, DT220A, DT240A Manual Extract The rear axle final drive units have a separate lubrication system to the rear axle. Tightness between the two parts is ensured by a double lip seal. The brakes are multidisc (6 discs with friction lining and 6 intermediate plates per final drive unit). They operate via a braking mechanism activated by a brake cylinder and a control lever.
