AGCO DT205B, DT225B, DT250B, DT275B, DT300B Tractor Service Manual Workshop Guide

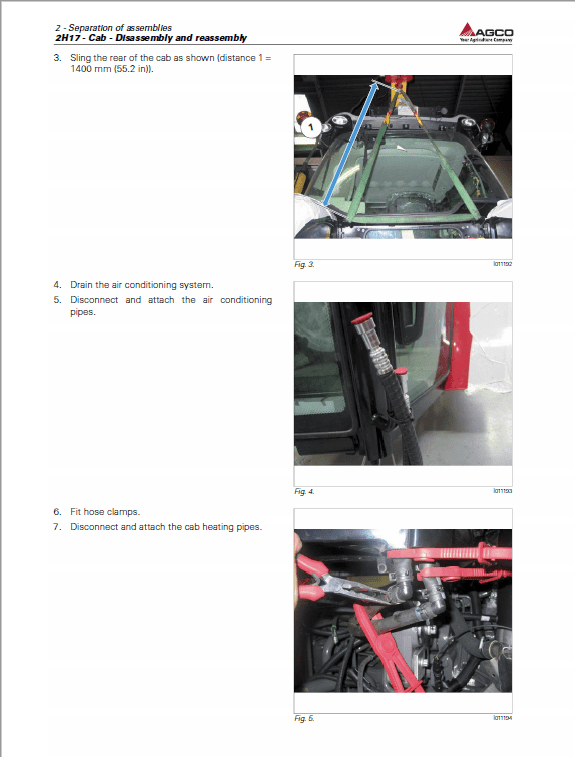

AGCO DT205B, DT225B, DT250B, DT275B, DT300B Tractor Manual : 2630 Pages AGCO DTb series tractors Technical Manual : 312 Pages Spicer Axle Manual: 126 Pages Format: PDF Book Number: 4346275M3 English Issued June 2011 Description AGCO DT205B, DT225B, DT250B, DT275B, DT300B Tractor Manual Manual for: AGCO DTb Tractor Format: PDF Book Number: 4346275M3 English Issued June 2011 AGCO DT205B, DT225B, DT250B, DT275B, DT300B Tractor Manual : 2630 Pages AGCO DTb series tractors Technical Manual : 312 Pages Spicer Axle Manual: 126 Pages Manual TABLE OF CONTENTS Introduction Separation of assemblies Engine Clutch Gearbox Rear Axle Power Take off Front Axle Hydraulics Electrical Electronics Cab Accessories Service Tools DT205B, DT225B, DT250B, DT275B, DT300B Manual Extract General This calibration allows improved precision of forward speed depending on: – the different tyre sizes available – radar (if fitted) Procedure 1. Mark out a 100 m (328 ft) (depending on the unit of measurement selected) on a firm surface. 2. Start up the tractor, and then press and hold the display selector switch (A) for 15 seconds. NOTE: The daily hourmeter resets to 0 after 5 seconds. 3. "CAL" should appear on the screen 4. Drive the tractor forwards at normal working speed. NOTE: The tractor must always be moving before starting out on the measured course; otherwise calibration will be incorrect. 5. Press the display selector switch when crossing the starting line of the 100 m (328 ft) course. 6. "run" should appear on the screen. 7. Press the display selector switch when crossing the finish line of the course. 8. Press the display selector switch; the constant forward speed (theoretical) measured during calibration is displayed. 9. Press the display selector switch again; the actual constant forward speed (radar) measured during calibration is displayed on tractors fitted with radar. 10. Press the display selector switch a final time to return the instrument panel to normal operating mode.
