AGCO LT75A, LT85A, LT90A, LT95A Tractor Workshop Service Manual Workshop Guide

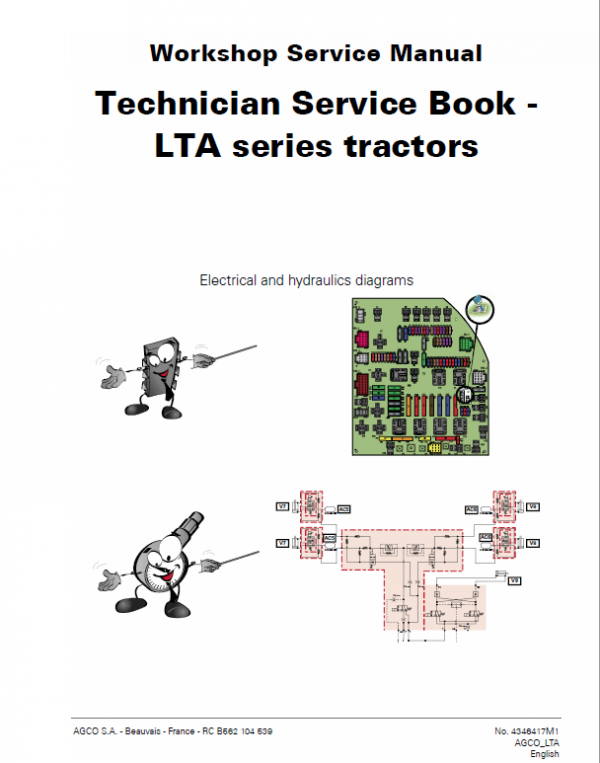

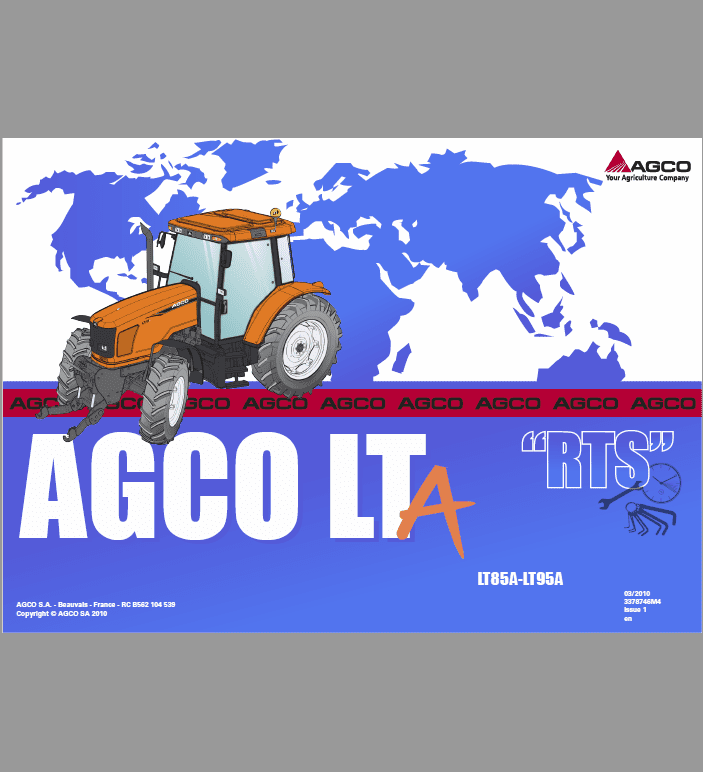

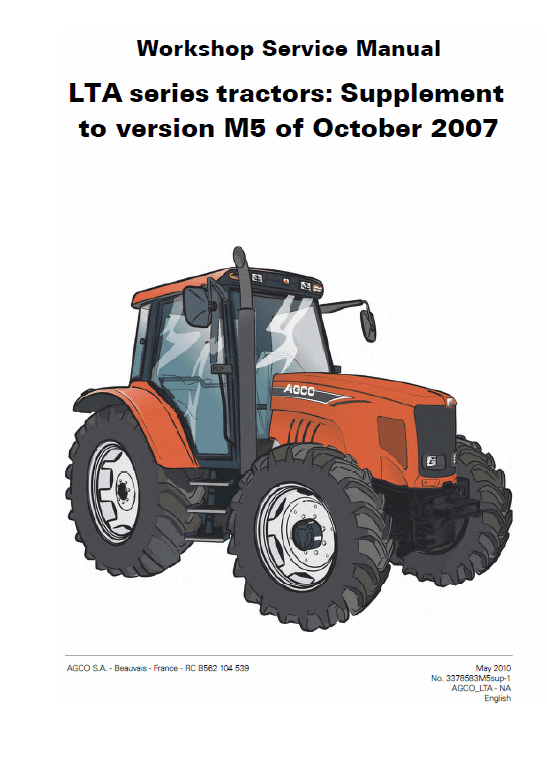

AGCO LT75A, LT85A, LT90A, LT95A Tractor Service Manual : 1959 Pages & 608 Pages (Supplements) AGCO LTA Tractor Technician Manual: 191 Pages AGCO Parts Catalog : 457 Pages Format: PDF 3378583M5sup-1 May 2010 AGCO_LTA – NA English Description AGCO LT75A, LT85A, LT90A, LT95A Tractor Manual Manual for: AGCO LTA Tractor Format: PDF 3378583M5sup-1 May 2010 AGCO_LTA – NA English AGCO LT75A, LT85A, LT90A, LT95A Tractor Service Manual : 1959 Pages & 608 Pages (Supplements) AGCO LTA Tractor Technician Manual: 191 Pages AGCO Parts Catalog : 457 Pages Manual TABLE OF CONTENTS Introduction Specification Splitting the tractor Engine Clutch Gearbox Rear Axle Power take off Front Axle Hydraulics Electrical Equipment Electronics Cab and equipment LT75A, LT85A, LT90A, LT95A Manual Extract The tractors are equipped with a selector cover plate fitted with a single control lever. This lever is located on the rear of the cover plate and is used to select the four basic gears and the Hare/Tortoise (Hi-Lo) function. Hare / Tortoise range shifting is carried out via a pulse button integrated into the transmission lever handle. The action is only validated when the lever is in the Neutral position. A sensor "C" fitted to the selector cover plate buzzes to warn the user that a gear is engaged when the hand brake is on.
