AGCO RT100, RT120, RT135, RT150 PowerMaxx CVT Service Manual Workshop Guide

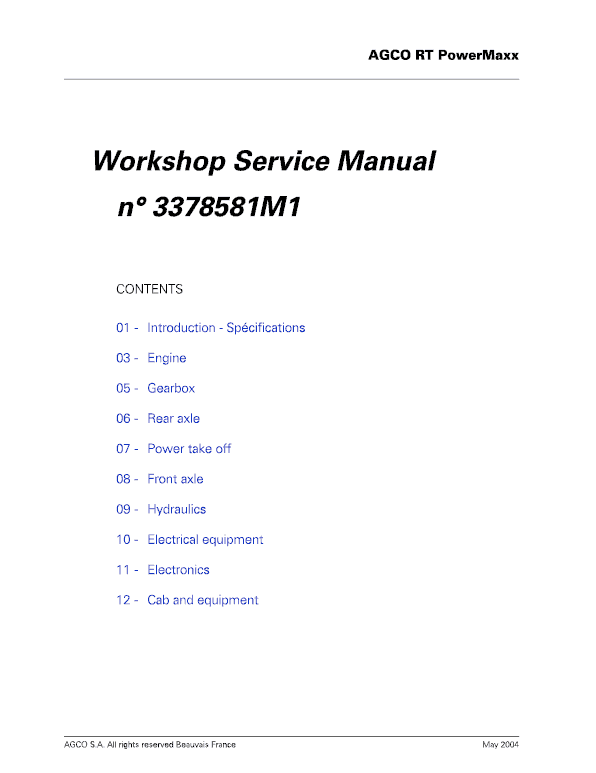

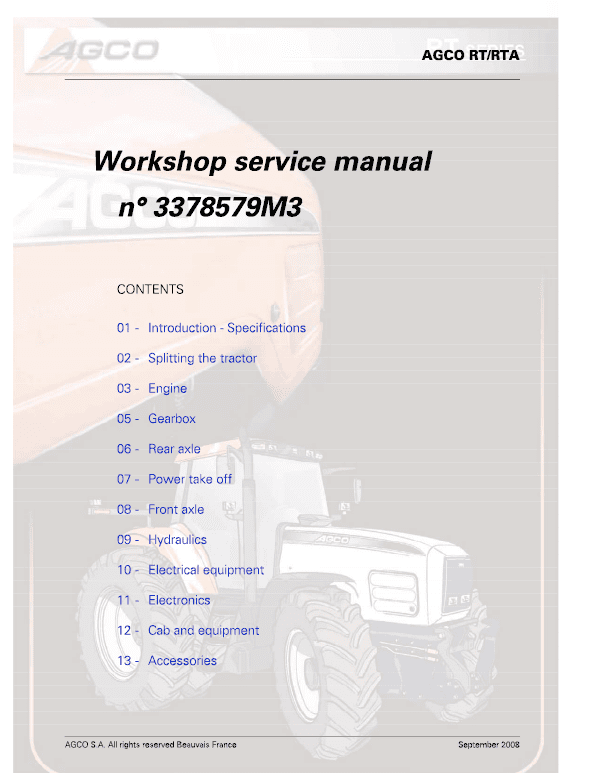

AGCO RT100, RT120, RT135, RT150 Tractor Manual : 3707 Pages & 862 Pages AGCO Parts Catalog : 398 Pages Format: PDF Book Number: 33785881M7 & 33785881M1 English Issued September 2008 Description AGCO RT100, RT120, RT135, RT150 CVT Manual Manual for: AGCO RT Tractor Format: PDF Book Number: 33785881M7 & 33785881M1 English Issued September 2008 AGCO RT100, RT120, RT135, RT150 Tractor Manual : 3707 Pages & 862 Pages AGCO Parts Catalog : 398 Pages Manual TABLE OF CONTENTS Introduction Specification Splitting the tractor Engine Clutch Gearbox Rear Axle Power take off Front Axle Hydraulics Electrical Equipment Electronics Cab and equipment RT100, RT120, RT135, RT150 Manual Extract There are two procedures for disassembling the gearbox and the centre housing, depending on the type of operation to be carried out on the tractor. Disassembling with the cab fixed to the centre housing Accessible elements: • Gearbox output shaft • Creeper unit and creeper gear selection mechanism (depending on option) • Power take-off clutch • Handbrake mechanism (only on tractors with no creeper gears) Disassembling with the cab fixed to the gearbox Accessible element: • Bevel gear Remark Due to the different hydraulic equipment that may be fitted on the tractor, this section describes the general disassembly procedure. Before and during disassembly, check that all connections have been properly separated between the fixed assembly and mobile assembly.
