AGCO RT110A, RT120A, RT140A, RT155A, RT180A Tractor Service Manual Workshop Guide

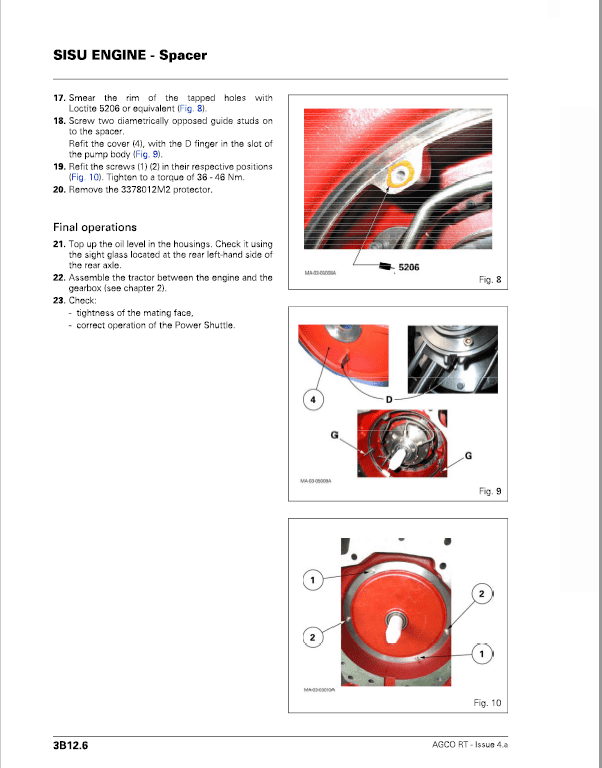

AGCO RT110A, RT120A, RT140A, RT155A, RT180A Tractor Service Manual : 2840 Pages & 3707 Pages AGCO Parts Catalog : 517 Pages Technician Service Book RTA series tractors : 270 Pages & 272 Pages Format: PDF Book Number: 33785881M7 & 3378579M3 English Issued September 2008 Description AGCO RT110A, RT120A, RT140A, RT155A, RT180A PowerMaxx CVT Tractor Manual Manual for: AGCO RTA Tractor Format: PDF Book Number: 33785881M7 & 3378579M3 English Issued September 2008 AGCO RT110A, RT120A, RT140A, RT155A, RT180A Tractor Service Manual : 2840 Pages & 3707 Pages AGCO Parts Catalog : 517 Pages Technician Service Book RTA series tractors : 270 Pages & 272 Pages Manual TABLE OF CONTENTS Introduction Specification Engine Gearbox Rear Axle Power take off Front Axle Hydraulics Electrical Equipment Electronics Cab and equipment RT110A, RT120A, RT140A, RT155A, RT180A Manual Extract Partial kinematics The engine speed is transmitted to the rear PTO clutch located at the front of the centre housing via a shaftline which passes via: – the Power Shuttle, the 4 Speed Powershift and the GTA1040 transmission gearbox; – the Powershift, the Power Shuttle and the GTA1540 transmission gearbox. The intermediate shaft (2) is splined to the layshaft (13) and drives the driving gears (10) (11) and/or (9) depending on the position of the coupler(s). When a gear transmits the movement to the lower shaftline, the other gear(s) is/are passive and turn(s) idle on its/their axis.
