AGCO ST30X, ST32 Tractor Workshop Service Manual Workshop Guide

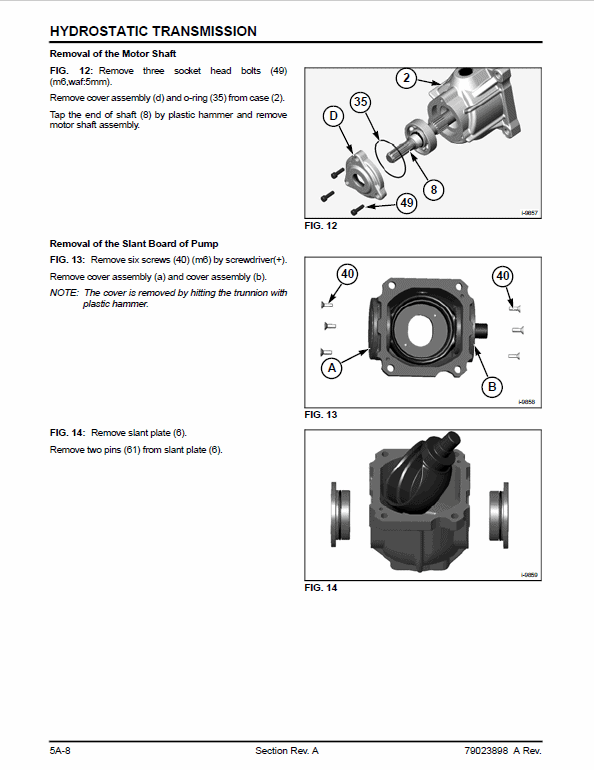

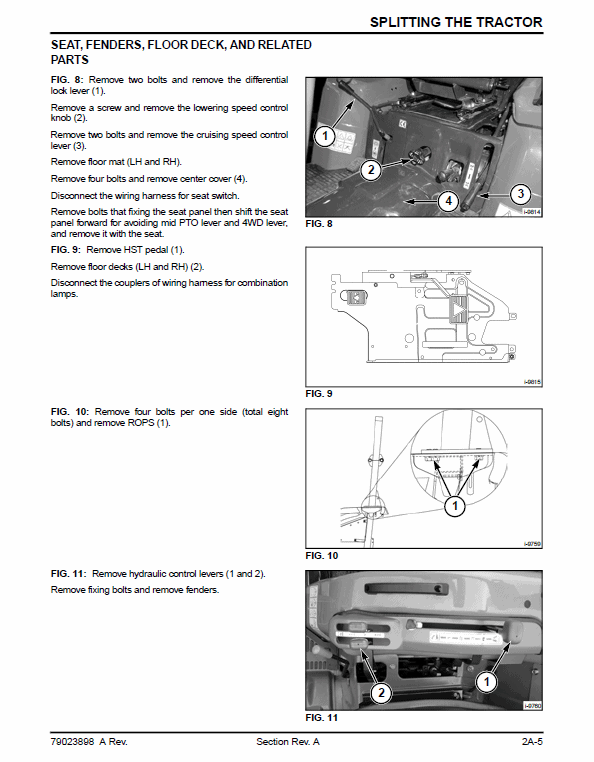

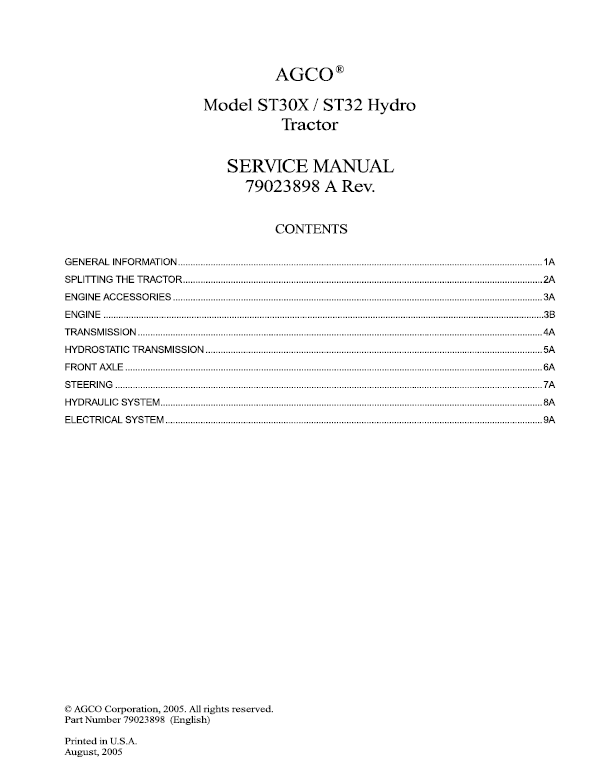

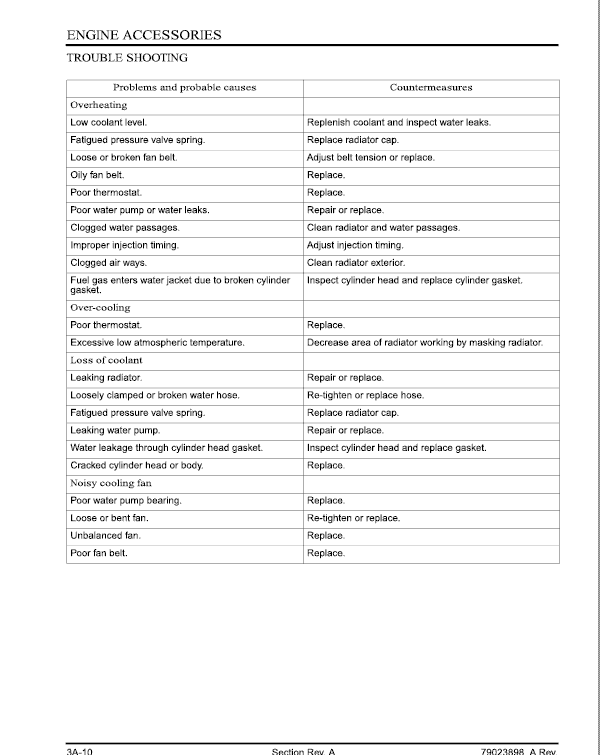

AGCO ST30X, ST32 Tractor Manual (Prior to "L" S/N) and Hydro : 139 Pages & 186 Pages AGCO ST30X, ST32 Tractor Manual (After to "L" S/N) : 154 Pages Format: PDF Book Number: 79021617 & 79023898 English Issued August 2005 Description AGCO ST30X, ST32 Tractor Workshop Manual Service Manual for: AGCO Tractor Format: PDF Book Number: 79021617 & 79023898 English Issued August 2005 AGCO ST30X, ST32 Tractor Manual (Prior to "L" S/N) and Hydro : 139 Pages & 186 Pages AGCO ST30X, ST32 Tractor Manual (After to "L" S/N) : 154 Pages Manual TABLE OF CONTENTS GENERAL INFORMATION ………………………………………………………………………………………………………………………………. 1A SPLITIING THE TRACTOR …………………………………………………………………………………………………………………………….. 2A ENGINE ACCESSORIES ………………………………………………………………………………………………………………………………… 3A ENGINE …………………………………………………………………………………………………………………………………………………………. 38 TRA NSMISSION …………………………………………………………………………………………………………………………………………….. 4A HYDROSTATIC TRA NSMISSION …………………………………………………………………………………………………………………….. SA FRONT AXLE …………………………………………………………………………………………………………………………………………………. 6A STEERING …………………………………………………………………………………………………………………………………………………….. 7A HYDRAULIC SYSTEM …………………………………………………………………………………………………………………………………….. 8A ELECTRICA L SYSTEM …………………………………………………………………………………………………………………………………… 9A ST30X, ST32 Manual Extract – REMOVAL OF POWER STEERING UNIT Remove the floor mat (LH and RH). Remove four bolts and remove the center cover. Remove four screws and remove column cover. Remove six screws and disconnect couplers for related wiring harness. And remove the rear cover. Remove two screws and loosen two bolts. Disconnect the coupler for meter panel and disconnect tachometer cable. Remove front cover. Remove throttle cable. FIG. 58: Disconnect four hydraulic hoses from Orbit roll power steering unit (1). Remove four bolts (2) and remove steering post with Orbit roll power steering unit. Remove bolts (3) and remove the power steering unit from steering post.
