AGCO ST45 Tractor Service Manual Workshop Guide

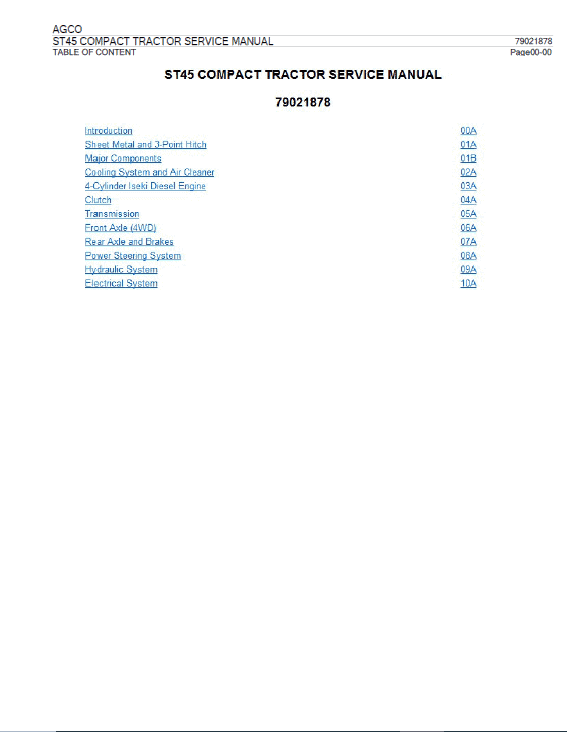

AGCO ST45 Compact Tractor Service Manual  : 461 Pages AGCO ST45 Hydro Tractor Service Manual: 413 Pages Format: PDF Book Number: 79017546 & 79021878 English Description AGCO ST45 Compact Tractor Manual Manual for: AGCO Tractor Format: PDF Book Number: 79017546 & 79021878 English AGCO ST45 Compact Tractor Service Manual  : 461 Pages AGCO ST45 Hydro Tractor Service Manual: 413 Pages Manual TABLE OF CONTENTS Introduction Sheet metal and 3 Point hitch Major Components Cooling System Air Cleaner 4 Cylinder Iseki Dies Engine Manual (Included) Clutch Transmission Front Axle (4WD) Rear Axle and Brakes Power Steering System Hydraulic System Electrical System ST45 Manual Extract HOOD SIDE PANELS Remove and Installation To access radiator, battery and engine components, right and left hood side panels can be easily removed. To remove; turn locking lever, 1, downward to unlock. Pull outward on bottom edge, at points indicated and then lift side panel upward to disengage and remove. Reinstall in reverse order making sure top edge of side panel engages correctly. Push inward on bottom edge and turn lever, 1, rearward to lock. FRONT GRILL Remove and Installation To permit battery removal and power steering filter servicing, front grille should be removed. To remove, turn locks, 2, one-quarter turn counterclockwise. Tip top of grille outward and disconnect headlight wiring couplers, 3. Lift grille upward to disengage lower hooks and remove from Tractor. Reinstall in reverse order making sure lower hooks engage on pins. It will be necessary to push inward on locks, 2, and then turn one-quarter turn clockwise to secure. HOOD Remove and Installation To remove hood proceed as follows: Remove hood side panels. Remove front grille. Remove fuse box and set it back in console area. Disconnect wiring attached to hood. Loosen clamp and remove exhaust pipe, (if vertical exhaust is used) Remove bolts holding hood in position and remove hood. Reverse procedures to install hood.
