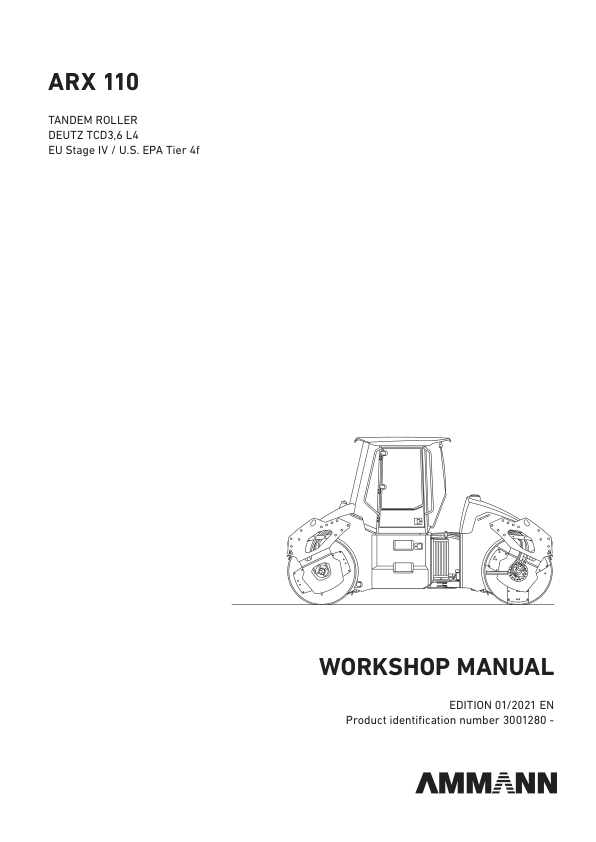

Ammann ARX 110, ARX 110 HF, ARX 110 K Heavy Tandem Roller Workshop Repair Manual Workshop Guide

Manual Included: Workshop Repair Manual: 438 Pages Operation Manual: 220 Pages Spare Parts Catalog: 506 Pages Deutz Engine TC/TCD 3.6 L4 Operation and Spare Parts Manual are also included. Specifications: Brand: Ammann Model: ARX 110, ARX 110 HF, ARX 110 K Type: Heavy Tandem Roller Manuals: Workshop, Repair, Operation and Parts Manual Language: English Format: PDF Description Table of Content – Ammann ARX 110, ARX 110 HF, ARX 110 K Heavy Tandem Roller Repair Manual 1 Introduction 2 Safety measures and instructions 3 Machine description 4 Specification manual 5 Media specification 6 Lubrication and Maintenance Chart 7 Engine 8 Steering 9 Travel 10 Vibration 11 Cooling 12 Cab and platform 13 Fuel tank Removal 14 Sprinkling 15 Oscillation Drum Belt Replacement 16 Electrical installation 17 Attachments About this workshop manual This workshop manual is intended for service technicians in the field and a workshop who are authorized by the user to perform servicing and maintenance. The purpose of this workshop manual is to provide instructions for optimal use and safe operation of the roller, while ensuring the following processes: Maintenance Repairs This manual applies to the following models: ARX 110, ARX 110 HF, ARX 110 K Because the roller can be fitted with various optional equipment, some illustrations or descriptions in this manual may differ from those of your particular machine. Repairs on this machine must only be performed by qualified, professionally trained, and experienced personnel, or by service staff from our authorized dealerships. Always consult this workshop manual before commencing any repair work. Individual chapters include special instructions and guidelines for disassembly and assembly tasks.
