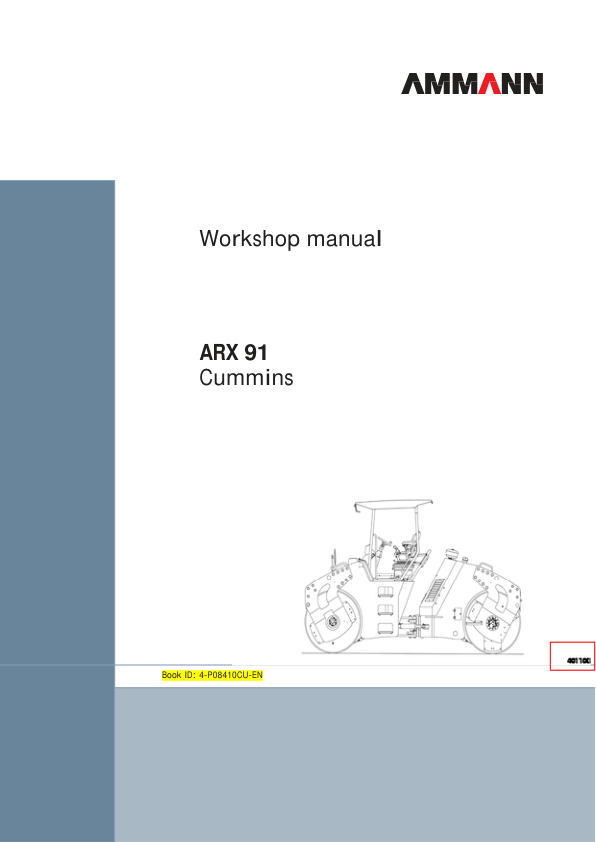

Ammann ARX 91 Heavy Tandem Roller Workshop Repair Manual (Cummins Engine) Workshop Guide

Manual Included: Workshop Repair Manual: 159 Pages Operation Manual: 150 Pages Spare Parts Catalog: 132 Pages Specifications: Brand: Ammann Model: ARX 91 (Equip with Cummins Engine) Type: Heavy Tandem Roller Manuals: Workshop, Repair, Operation and Parts Manual Language: English Format: PDF Description Table of Content – Ammann ARX 91 Heavy Tandem Roller Repair Manual Contents 1. INTRODUCTION 2. SAFETY PRECAUTIONS AND INSTRUCTIONS 3. SPECIFICATION MANUAL 4. MEDIA SPECIFICATION 5. LUBRICATION AND MAINTENANCE CHART 6. DRUM 7. KNUCKLE STEERING 8. HYDRAULICS 9. REMOVING HYDROMOTORS FOR STEERING 13. CABIN 14. WIRING 15. ANNEXES About this workshop manual This workshop manual is intended for service technicians in the field and a workshop who are authorized by the user to perform servicing and maintenance. The purpose of this workshop manual is to provide instructions for optimal use and safe operation of the roller, while ensuring the following processes: Maintenance Repairs This manual applies to the following models: ARX 91 Because the roller can be fitted with various optional equipment, some illustrations or descriptions in this manual may differ from those of your particular machine. Repairs on this machine must only be performed by qualified, professionally trained, and experienced personnel, or by service staff from our authorized dealerships. Always consult this workshop manual before commencing any repair work. Individual chapters include special instructions and guidelines for disassembly and assembly tasks.
