Ammann AV 130 X Heavy Tandem Roller Workshop Repair Manual Workshop Guide

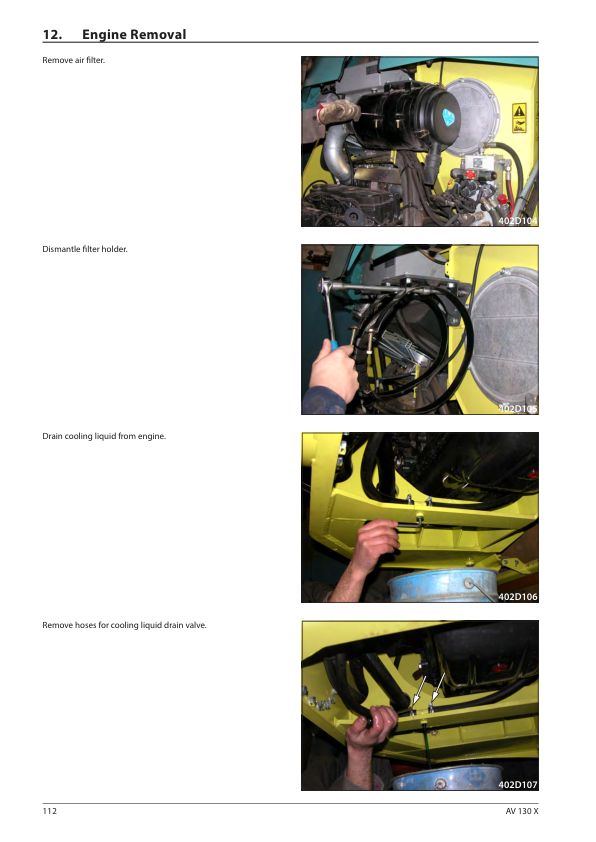

Manual Included: Workshop Repair Manual: 228 Pages Operation Manual: 184 Pages Spare Parts Catalog: 244 Pages Cummins Engine QSB4.5 Operation and Spare Parts Manual are also included. Specifications: Brand: Ammann Model: AV 130 X Type: Heavy Tandem Roller Manuals: Workshop, Repair, Operation and Parts Manual Language: English Format: PDF Description Table of Content – Ammann AV 130 X Heavy Tandem Roller Repair Manual 1 Introduction 2 Safety precautions and instructions 3 Machine Description 4 Specification Manual 5 Lubrication and Maintenance Chart 6 Drum 7 Knuckle Steering 9 Hydraulics 10 Removing Hydromotors for Steering and Crab 11 Bonnet Removal 12 Engine Removal 13 Removal of Coolers 14 Cabin 15 Wiring 16 Annexes About this workshop manual This workshop manual is intended for service technicians in the field and a workshop who are authorized by the user to perform servicing and maintenance. The purpose of this workshop manual is to provide instructions for optimal use and safe operation of the roller, while ensuring the following processes: Maintenance Repairs This manual applies to the following models: AV 130 X Because the roller can be fitted with various optional equipment, some illustrations or descriptions in this manual may differ from those of your particular machine. Repairs on this machine must only be performed by qualified, professionally trained, and experienced personnel, or by service staff from our authorized dealerships. Always consult this workshop manual before commencing any repair work. Individual chapters include special instructions and guidelines for disassembly and assembly tasks.
