Ammann AV 70 X Heavy Tandem Roller Workshop Repair Manual Workshop Guide

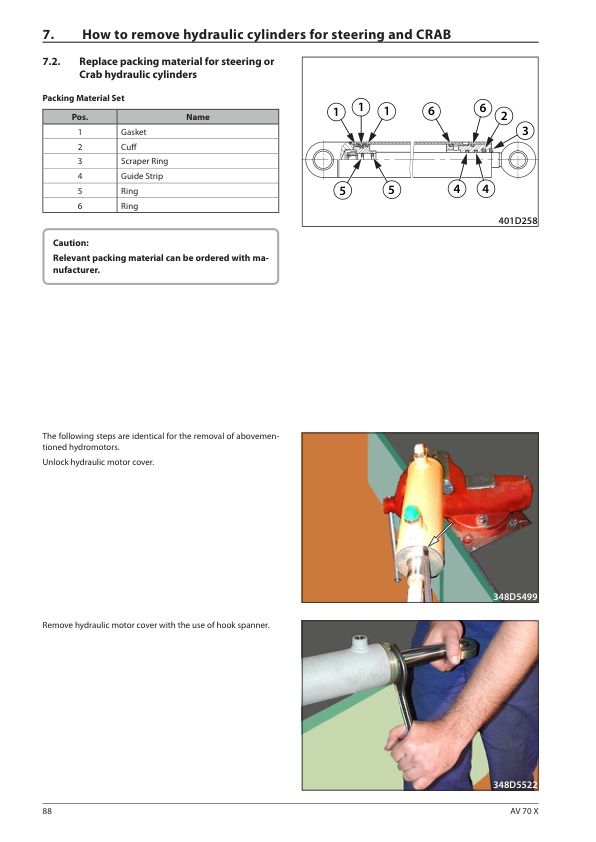

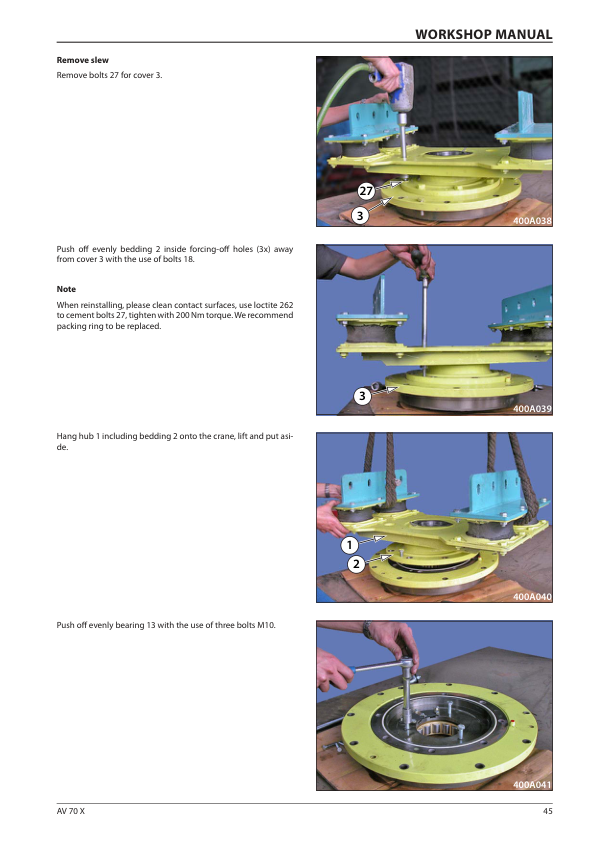

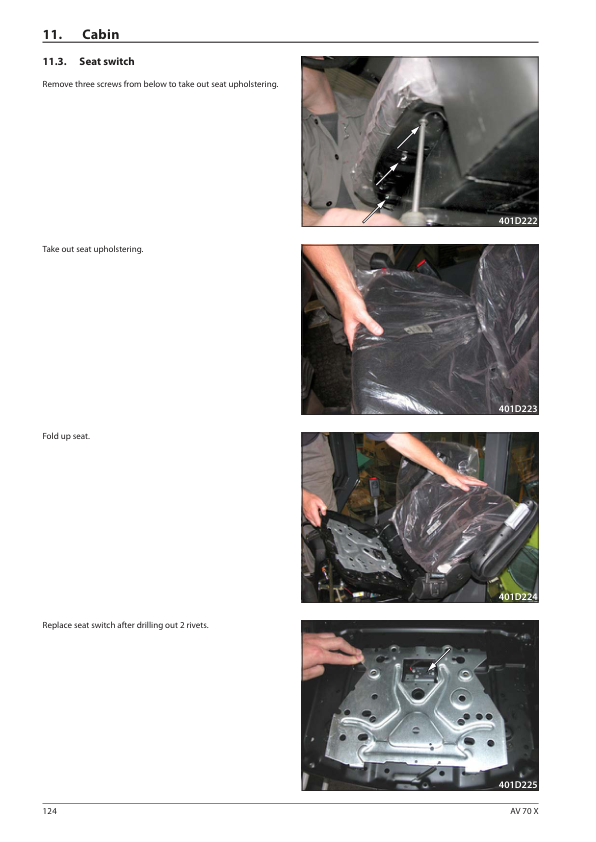

Manual Included: Workshop Repair Manual: 174 Pages Operation Manual: 164 Pages Spare Parts Catalog: 244 Pages Specifications: Brand: Ammann Model: AV 70 X (Equip with Cummins Engine) Type: Heavy Tandem Roller Manuals: Workshop, Repair, Operation and Parts Manual Language: English Format: PDF Description Table of Content – Ammann AV 70 X Heavy Tandem Roller Repair Manual Contents 1. INTRODUCTION 2. SAFETY PRECAUTIONS AND INSTRUCTIONS 3. MACHINE DESCRIPTION 4. DRUM 5. STEERING JOINT 6. HYDRAULICS 7. HOW TO REMOVE HYDRAULIC CYLINDERS FOR STEERING AND CRAB 8. HOW TO REMOVE BONNET 9. HOW TO REMOVE ENGINE 13. HOW TO REMOVE COOLER 14. CABIN 15. WIRING 15. ANNEXES About this workshop manual This workshop manual is intended for service technicians in the field and a workshop who are authorized by the user to perform servicing and maintenance. The purpose of this workshop manual is to provide instructions for optimal use and safe operation of the roller, while ensuring the following processes: Maintenance Repairs This manual applies to the following models: AV 70 X Because the roller can be fitted with various optional equipment, some illustrations or descriptions in this manual may differ from those of your particular machine. Repairs on this machine must only be performed by qualified, professionally trained, and experienced personnel, or by service staff from our authorized dealerships. Always consult this workshop manual before commencing any repair work. Individual chapters include special instructions and guidelines for disassembly and assembly tasks.
