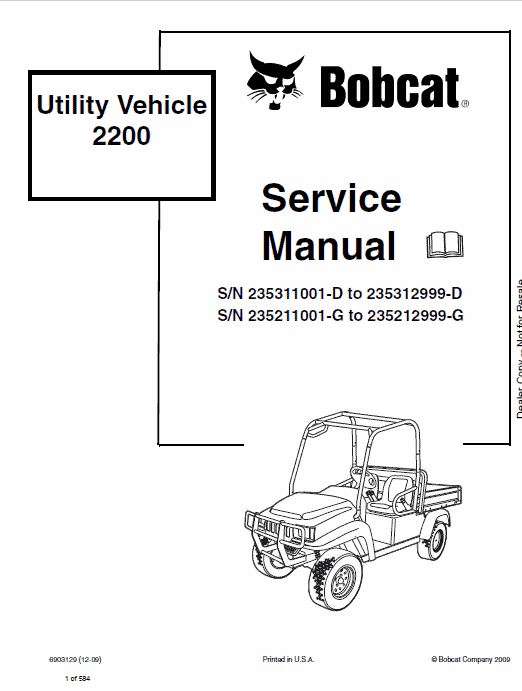

Bobcat 2200, 2200S, 2300 (G Series & D Series) Utility Vehicle Service Manual Workshop Guide

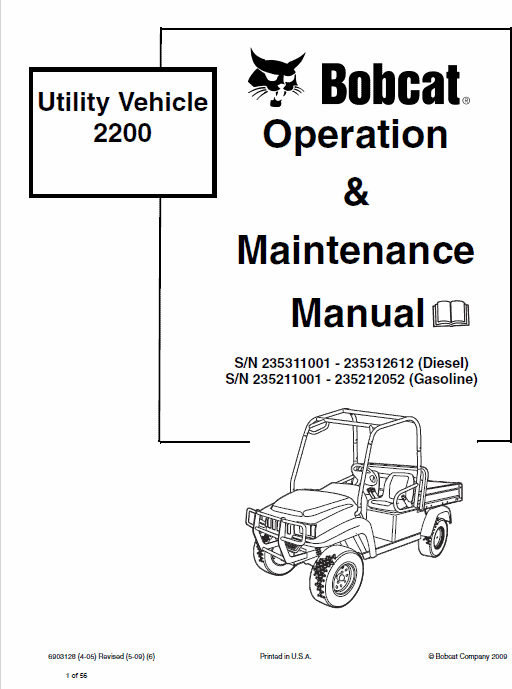

Language English Format: PDF S/N 235311001 to 235312999 (D-Series) S/N 235211001 to 235212999 (G-Series) S/N A59Z11001 & ABOVE (2200 DIESEL) S/N A5KR11001 & ABOVE (2200 DIESEL) HOM. S/N A59Y11001 & ABOVE (2200 GASOLINE) S/N A5A111001 & ABOVE (2200S DIESEL) S/N A5A011001 & ABOVE (2200S GASOLINE) S/N A59W11001 & ABOVE (2300 DIESEL) Bobcat 2200, 2200S, 2300 (G Series & D Series) Utility Vehicle Service Manual – 892 Pages & 584 Pages Bobcat 2200, 2200S, 2300 (G Series & D Series) Utility Vehicle Operating Manual – 56 Pages & 66 Pages Wiring Electrical Schematics and Hydraulic Schematics are included in the Service Manual Description Bobcat 2200, 2200S, 2300 (G Series & D Series) Utility Vehicle Service Manual These service manual contains all the information required to assist you or a trained service engineers with all work, repairs and maintenance on this Utility Vehicle. Language English Format: PDF S/N 235311001 to 235312999 (D-Series) S/N 235211001 to 235212999 (G-Series) S/N A59Z11001 & ABOVE (2200 DIESEL) S/N A5KR11001 & ABOVE (2200 DIESEL) HOM. S/N A59Y11001 & ABOVE (2200 GASOLINE) S/N A5A111001 & ABOVE (2200S DIESEL) S/N A5A011001 & ABOVE (2200S GASOLINE) S/N A59W11001 & ABOVE (2300 DIESEL) Bobcat 2200, 2200S, 2300 (G Series & D Series) Utility Vehicle Service Manual – 892 Pages & 584 Pages Bobcat 2200, 2200S, 2300 (G Series & D Series) Utility Vehicle Operating Manual – 56 Pages & 66 Pages Wiring Electrical Schematics and Hydraulic Schematics are included in the Service Manual CONTENTS: SECTION_1 SAFETY SECTION_2 VEHICLE SPECIFICATIONS SECTION_3 GENERAL INFORMATION SECTION_4 BODY AND TRIM SECTION_5 ACCELERATOR AND BRAKE PEDAL ASSEMBLIES SECTION_6 HYDRAULIC AND PARK BRAKE SYSTEMS SECTION_7 STEERING AND FRONT SUSPENSION SECTION_8 WHEELS AND TIRES SECTION_9 REAR SUSPENSION SECTION_10 PERIODIC MAINTENANCE SECTION_11A TROUBLESHOOTING AND ELECTRICAL SYSTEM: GASOLINE VEHICLES SECTION_11B TROUBLESHOOTING AND ELECTRICAL SYSTEM: DIESEL VEHICLES SECTION_12A ELECTRICAL COMPONENTS: GASOLINE VEHICLES SECTION_12B ELECTRICAL COMPONENTS: DIESEL VEHICLES SECTION_13A GASOLINE ENGINE, MUFFLER, FUEL SYSTEM, AND CLUTCHES SECTION_13B DIESEL ENGINE, MUFFLER, FUEL SYSTEM, AND CLUTCHES SECTION_14 DRIVETRAIN COMPONENTS SECTION_15 RADIATOR AND COOLANT SYSTEM (DIESEL) SECTION_16 TRANSMISSION MODELS 420317 AND 420682 SECTION_17 FRONT DIFFERENTIAL MODELS 6203-01-139-S AND 6203-01-189-S SECTION_18 REAR DIFFERENTIAL MODELS 420366 AND 420851 SECTION_19 KUBOTA D722 DIESEL ENGINE MANUAL SECTION_20 HONDA GX 620 GASOLINE ENGINE MANUAL SECTION_i INDEX Bobcat vehicles are designed and built to provide the ultimate in performance efficiency; however, proper maintenance and repair are essential for achieving maximum service life and continued safe and reliable operation. This manual provides detailed information for the maintenance and repair of the Bobcat 2200, 2200S and Bobcat 2300 vehicles, and should be thoroughly reviewed prior to servicing the vehicles. The procedures provided must be properly implemented, and the DANGER, WARNING, and CAUTION statements must be heeded. This manual was written for the trained technician who already possesses knowledge and skills in electrical and mechanical repair. If the technician does not have such knowledge and skills, attempted service or repairs to the vehicle may render the vehicle unsafe. For this reason, Bobcat Company advises that all repairs and/or service be performed by an authorized Bobcat 2200 and 2200S distributor/dealer representative or by a Bobcat factory-trained technician. It is the policy of Bobcat Company to assist its distributors and dealers in continually updating their service knowledge and facilities so they can provide prompt and efficient service for vehicle owners. Regional technical representatives, vehicle service seminars, periodic service bulletins, maintenance and service manuals, and other service publications also represent Bobcat Company's continuing commitment to customer support. This manual covers all aspects of typical vehicle service; however, unique situations sometimes occur when servicing a vehicle. If it appears that a service question is not answered in this manual, you may write to Bobcat.
