BT CBE 1.2F, CBE 1.5F, CBE 1.6F, CBE 1.6FL E Series Forklift Service Manual

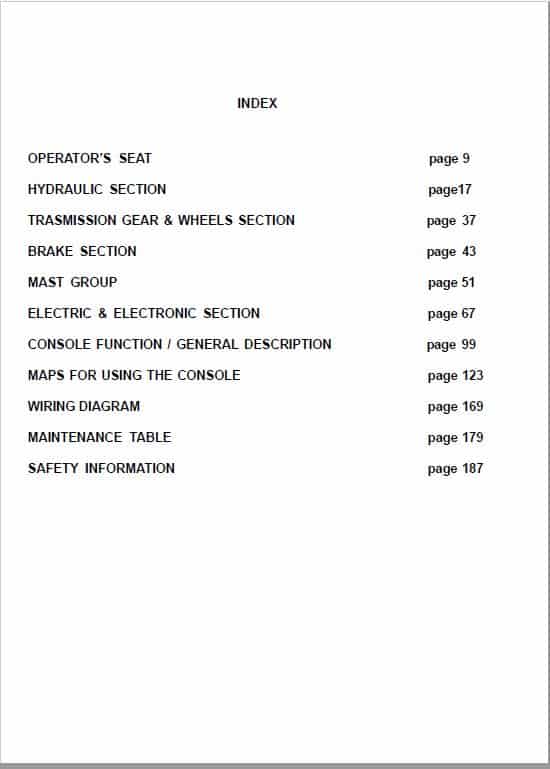

BT CBE 1.2F, CBE 1.5F, CBE 1.6F, CBE 1.6FL E Series Forklift Service Manual: 194 Pages & 104 Pages Parts Manual: 1682 Pages Publication 036-0410-06 English 2004 Format: PDF Description BT CBE 1.2F, CBE 1.5F, CBE 1.6F, CBE 1.6FL E Series Forklift Manual ForkLift Model : CBE 1.2F, CBE 1.5F, CBE 1.6F, CBE 1.6FL Publication 036-0410-06 English 2004 Format: PDF BT CBE 1.2F, CBE 1.5F, CBE 1.6F, CBE 1.6FL E Series Forklift Service Manual: 194 Pages & 104 Pages Parts Manual: 1682 Pages Forklift Manual Table of Content: OPERATOR'S SEAT HYDRAULIC TRANSMISSION GEAR & WHEELS BRAKE SECTION MAST GROUP ELECTRIC & ELECTRONIC CONSOLE FUNCTION / GENERAL DESCRIPTION MAPS FOR USING THE CONSOLE WIRING DIAGRAM MAINTENANCE TABLE SAFETY INFORMATION These service instructions cover descriptions for dismantling and assembling the gear, filling/changing the oil and measures in the event of leakage. Complete overhaul of the gear is such an extensive piece of work that it should be carried out in a workshop by specially trained personnel. 1) Battery status indicator 2) Parking brake ON warning light 3) Brake fluid low level warning light 4) Lifting speed reduction due to flat battery 5) "Dead man device" warning light 6) Drive left motor temperature warning light 7) Drive right motor temperature warning light 8) Lifting motor temperature warning light 9) Electronic hour meter 10) Diagnostic code display (see Alarm function chapter). 11) Selected setting display: L (low), P (programmable), H (high) 12) Low speed light (when the reduction speed is selected the blue light is on) 13) Forward/backwardindication 14) Steeringindication 15) Light sensor HYDRAULIC OIL REPLACING The tank does not have the drain plug. Two different procedures can be used to replace the hydraulic oil: 1) To discharge the hydraulic oil it is possible to use a pump connected to the hole for the oil level rod (point A). 2) It is possible olso to disconnect the drain hose of the control valve from the tank and put it on a external case. By pressing the brake pedal (corrispond to the minimum RpM of the lifting pump) the oil flow out. Pay attention that the pump must not work without oil.
