BT CBE 1.2T, CBE 1.5T, CBE 1.6T, CBE 1.6TL E Series Forklift Service Manual

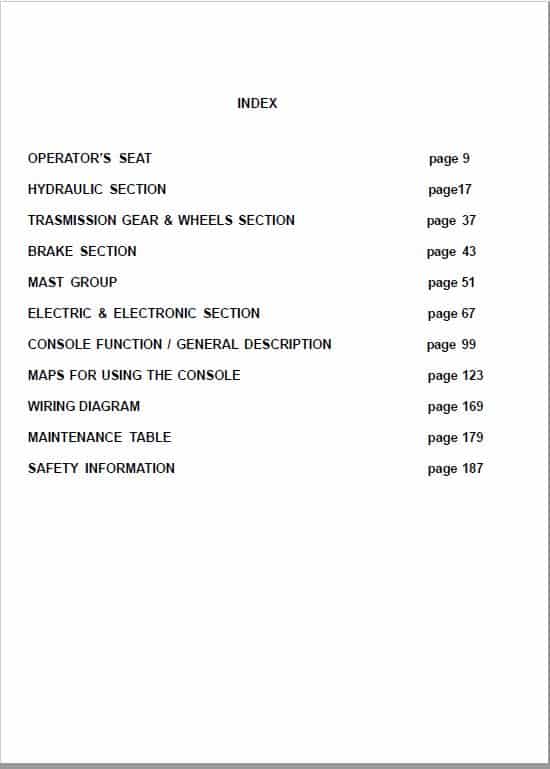

BT CBE 1.2T, CBE 1.5T, CBE 1.6T, CBE 1.6TL E Series Forklift Service Manual: 194 Pages & 104 Pages Parts Manual: 1426 Pages Publication 036-0403-03 English 2003 Format: PDF Description BT CBE 1.2T, CBE 1.5T, CBE 1.6T, CBE 1.6TL E Series Forklift Manual ForkLift Model : CBE 1.2T, CBE 1.5T, CBE 1.6T, CBE 1.6TL Publication 036-0403-03 English 2003 Format: PDF BT CBE 1.2T, CBE 1.5T, CBE 1.6T, CBE 1.6TL E Series Forklift Service Manual: 194 Pages & 104 Pages Parts Manual: 1426 Pages Forklift Manual Table of Content: OPERATOR'S SEAT HYDRAULIC TRANSMISSION GEAR & WHEELS BRAKE SECTION MAST GROUP ELECTRIC & ELECTRONIC CONSOLE FUNCTION / GENERAL DESCRIPTION MAPS FOR USING THE CONSOLE WIRING DIAGRAM MAINTENANCE TABLE SAFETY INFORMATION These service instructions cover descriptions for dismantling and assembling the gear, filling/changing the oil and measures in the event of leakage. Complete overhaul of the gear is such an extensive piece of work that it should be carried out in a workshop by specially trained personnel. Setting selector: at the truck start up the default settingis P (programmable); H (high) or L (low) settings can be selected pulling the push button several times. On the dashboard, three leds, as indicated at page 14 paragraph 11, will show the selected condition. P: – Maximum drive speed. – Acceleration and braking action are optimised for low energy consumption. – Parameter change function enabled. H: – Hight drive speed. – Strong acceleration and braking action. – Parameter change function disabled. L: – Reduced drive speed. – Soft acceleration and braking action. – Parameter change function disabled. N) Low speed selector: it limits the maximum drive speed of the truck by the set percentage ( from 10% up to 90% ). See on page 103 and 129 (Parameter change function, DualAC2 traction unit) paragraph "CUTBACK SPEED".
