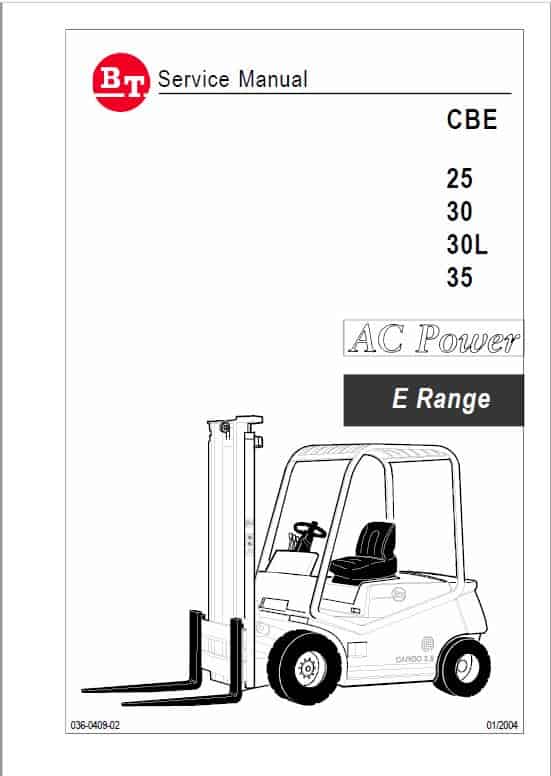

BT CBE 2.5, CBE 3.0, CBE 3.0L, CBE 3.5 E Range Forklift Service Manual

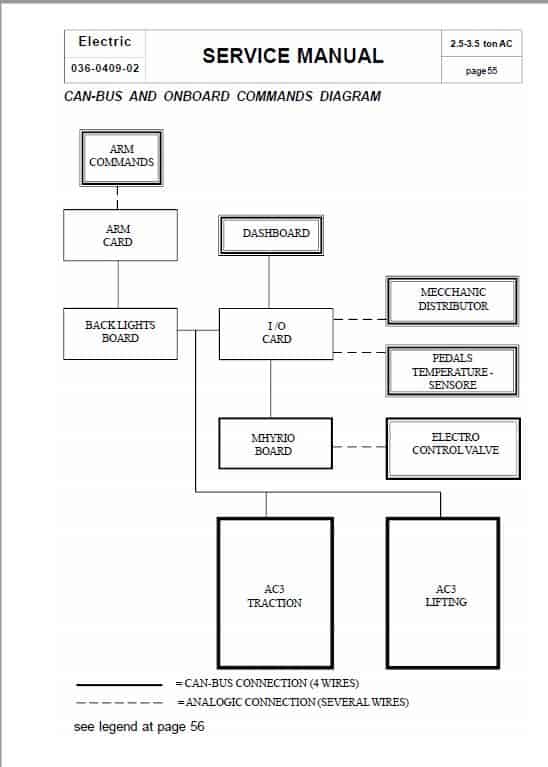

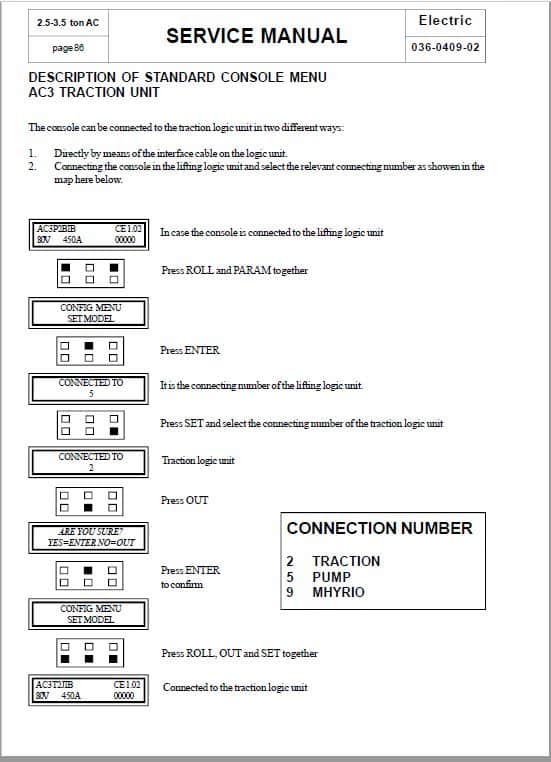

BT CBE 2.5, CBE 3.0, CBE 3.0L, CBE 3.5 E Series Forklift Service Manual: 170 Pages & 62 Pages Parts Manual: 692 Pages Publication 036-0409-02 English 2004 Format: PDF Description BT CBE 2.5, CBE 3.0, CBE 3.0L, CBE 3.5 E Series Forklift Manual ForkLift Model : CBE 2.5, CBE 3.0, CBE 3.0L, CBE 3.5 Publication 036-0409-02 English 2004 Format: PDF BT CBE 2.5, CBE 3.0, CBE 3.0L, CBE 3.5 E Series Forklift Service Manual: 170 Pages & 62 Pages Parts Manual: 692 Pages Forklift Manual Table of Content: OPERATOR'S SEAT HYDRAULIC TRANSMISSION GEAR & WHEELS BRAKE SECTION MAST GROUP ELECTRIC & ELECTRONIC CONSOLE FUNCTION / GENERAL DESCRIPTION MAPS FOR USING THE CONSOLE WIRING DIAGRAM MAINTENANCE TABLE SAFETY INFORMATION These service instructions cover descriptions for dismantling and assembling the gear, filling/changing the oil and measures in the event of leakage. Complete overhaul of the gear is such an extensive piece of work that it should be carried out in a workshop by specially trained personnel. Disassemble the reduction unit – Park the lift truck on a level ground. Engage the parking brake and disconnect the battery; – Disassemble the mast; – Lift the front part of the lift truck and set the special shims under the side panels of the chassis; – Remove the front wheels; – Disconnect the tie rods of the parking brake, the service brake oil pipe, the motor cables etc; – Keep the reduction unit in lifted position; – Remove the fastening screws located on the chassis (tightening torque setting of 45 daNm).
