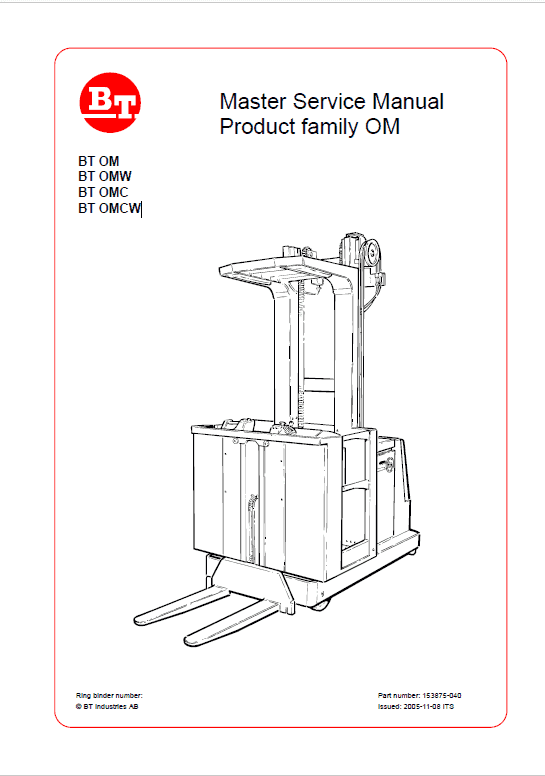

BT OM, OMW, OMC, OMCW Pallet Truck Service Manual

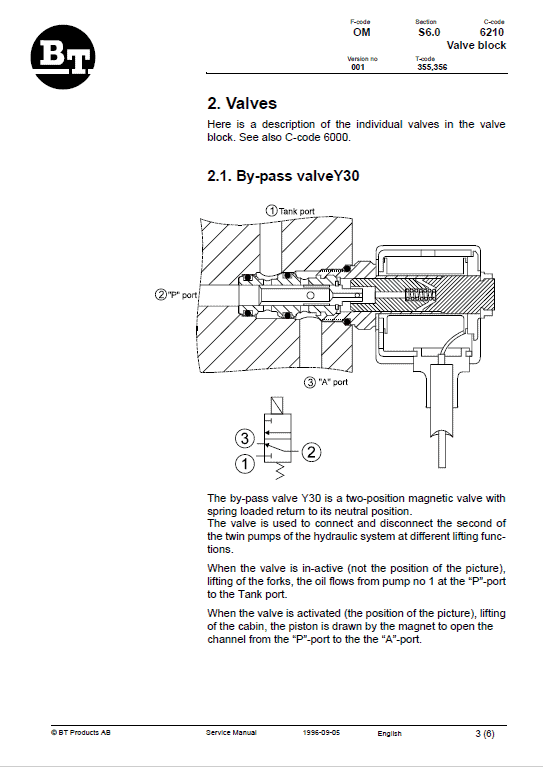

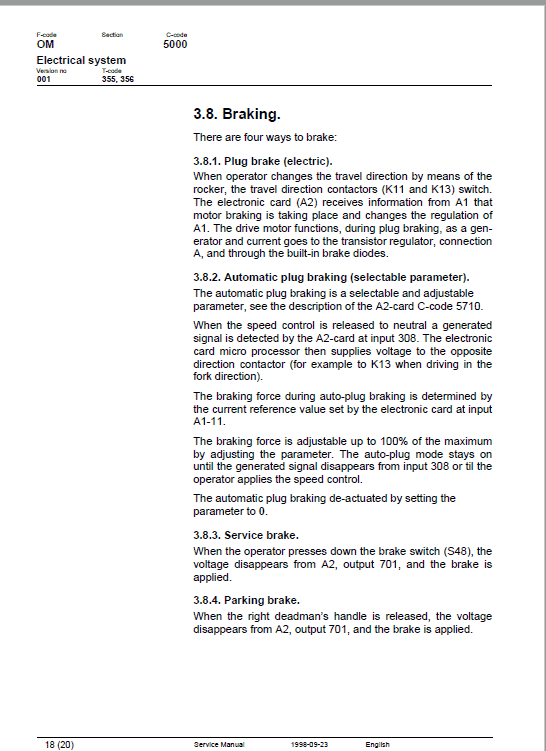

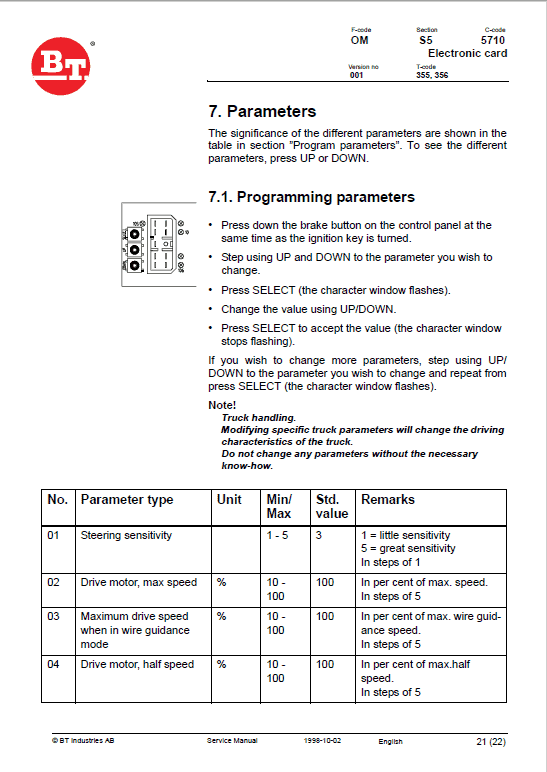

BT OM, OMW, OMC, OMCW Pallet Truck Service Manual: 369 Pages Publication 153875-040 English 2005 Format: PDF Description BT OM, OMW, OMC, OMCW Pallet Truck Manual Pallet Truck Model : OM, OMW, OMC, OMCW Publication 153875-040 English 2005 Format: PDF BT OM, OMW, OMC, OMCW Pallet Truck Service Manual: 369 Pages Note: This is applicable for the OME100M, OME100, OME100MW, OME100W as well. Pallet Truck Manual Table of Content: Introduction Technical data Maintenance Oil and Grease Drive unit Tranmission Brake Electrical System Hydraulic Valve Lift Cylinder Getting the truck in order • Cut away the band (a, pic. 1) holding the forks onto the pallet. Take out the forks. • Remove the battery hatches. • Remove the carton of accessories and the can of oil. • Cut away the two bands holding the truck to the pallet (b, pic. 1) at the mast. Leave in place the two bands by the battery compartment. • Remove the boards between the cabin and the mast, one from each side of the cabin (c, pic. 1). • Remove the supports from under the mast's cross and top joists and at the mast's shaft pins (d, pic. 1). • Remove the pallets stacked under the mast. • Affix a hawser to the upper section of the frame. See pic. 2. • Affix two hawsers behind the support arm wheels. • Cut away the two bands holding the truck to the pallets at the battery compartment (e, pic. 1). • Lift the truck using a truck and an overhead crane. • Remove the double bands and boards from the cabin. (f, pic. 1). • Fill the hydraulic system with the accompanying hydraulic fluid. • Fit the rollers for the battery compartment conveyor. • Connect the battery Lift the fork yoke at the top and fit the forks. • Execute preventative maintenance as per instructions for the 250-hour service interval. See section P2. • Try, if possible, to re-use the pallets and other packing as much as possible.
