BT VCE150A, VCE150AC, VCE125ASF, VCE125ACSF, C15 Vector Truck Manual

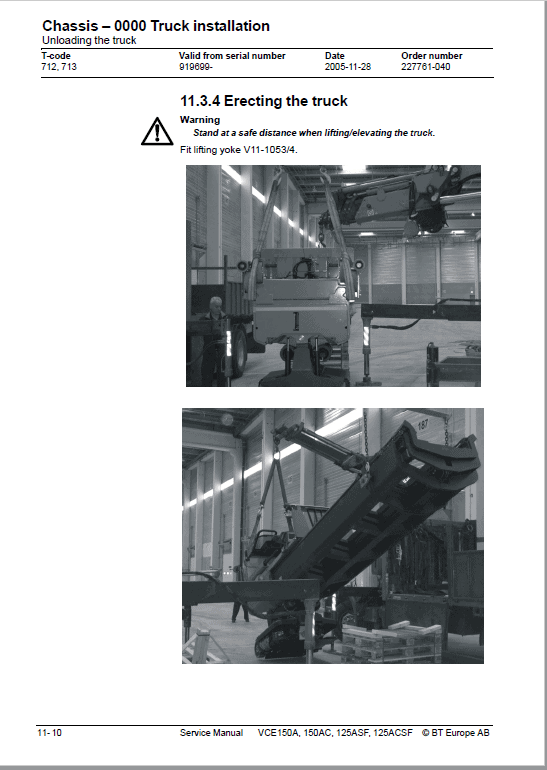

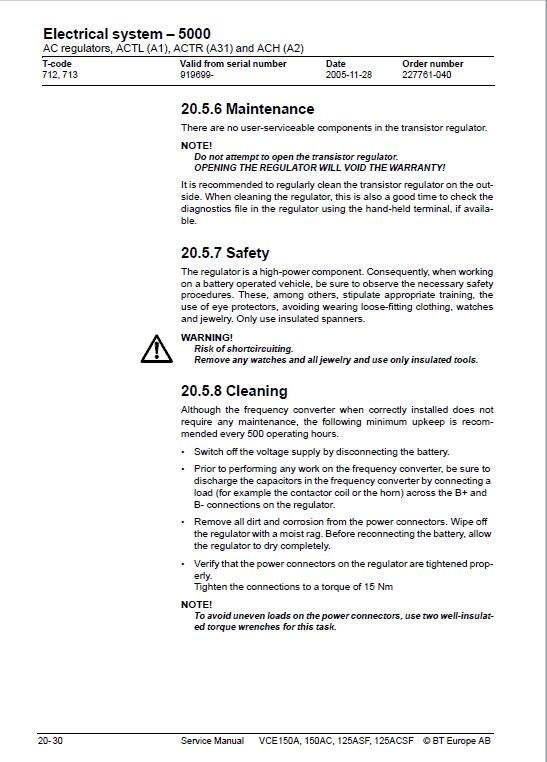

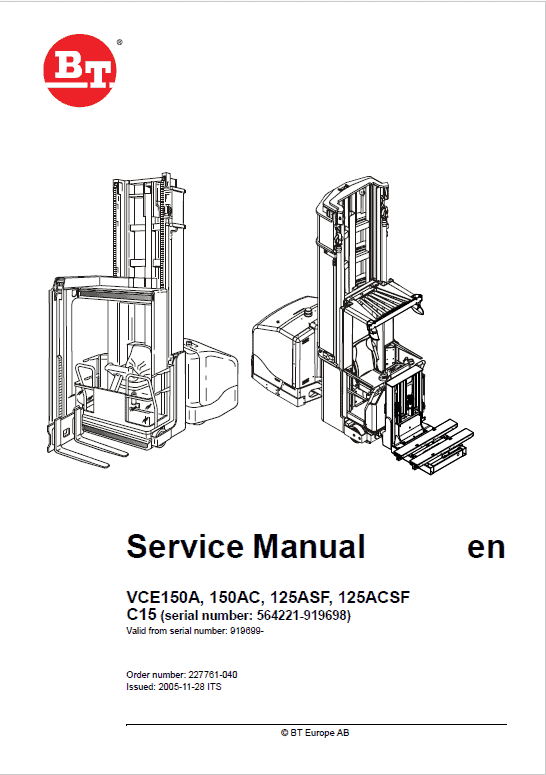

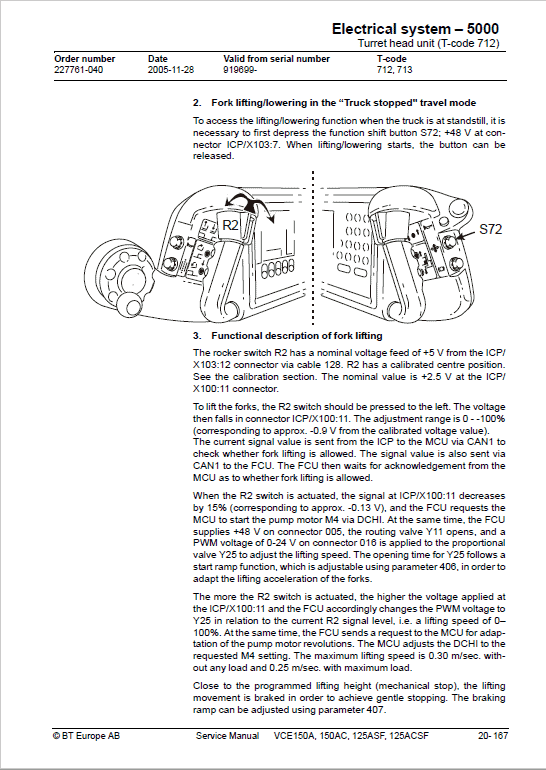

BT VCE150A, VCE150AC, VCE125ASF, VCE125ACSF, C15 Vector Truck Service Manual: 608 Pages C15 Only Parts Manual : 229 Pages Publication 227761-040 English 2005 Format: PDF Description BT VCE150A, VCE150AC, VCE125ASF, VCE125ACSF, C15 Vector Truck Manual Vector Truck Model : VCE150A, VCE150AC, VCE125ASF, VCE125ACSF, C15 Publication 227761-040 English 2005 Format: PDF BT VCE150A, VCE150AC, VCE125ASF, VCE125ACSF, C15 Vector Truck Service Manual: 608 Pages C15 Only Parts Manual : 229 Pages Vector Truck Manual Table of Content: General product information Technical data Maintenance Oil and Grease Drive unit Brake Display Hydraulic Wheels Steering Electrical The information in this Service Manual covers models RRX35, RRX45, RDX30, RSX40, and RSX50. This Service Manual is not a training manual. The information contained in this service manual is intended as a guide to help trained, qualified, and authorized technicians safely service the truck. The RRX35/45 are battery powered reach trucks. The RDX30 is a battery powered deep reach truck. The RSX40/50 are battery powered straddle arm trucks. These trucks are intended solely to be operated handling pallets or similar load carriers indoors. The trucks are equipped with a steering wheel with all the controls for operating within easy access. The trucks have various maximum lifting capacities (review data plate on the truck to note the maximum lifting capacity) and are equipped with a 24V or 36V electrical system. Speed of the truck is regulated by means of a transistor controller to provide infinite control of acceleration and speed while driving. The forks and auxiliary functions are controlled by means of a transistor controller. Control of the lift and auxiliary functions are done electrically with the levers on the control pod. Control of the speed and positioning of the forks when stacking is done by the position of the levers. The trucks can be fitted with different accessories including sideshifter, warning light, lights/fan package, travel alarm, and adjustable driving lights. The trucks can be specially equipped to work in cold conditions.
