Cameco 2254 Loader Repair Service Manual Workshop Guide

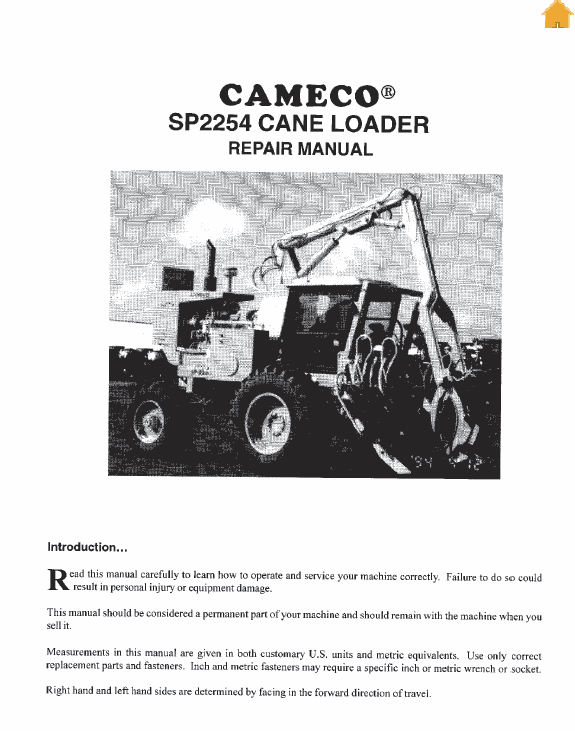

Brand: Cameco Model: 2254 Format: PDF Language: English Type: Service Repair Manual Cameco 2254 Loader Service Repair Manual : 304 pages Description Cameco 2254 Loader Repair Service Manual Brand: Cameco Model: 2254 Format: PDF Language: English Type: Repair Service Manual Cameco 2254 Loader Repair Service Manual : 304 pages Read result this in manual carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage. This manual should be considered a permanent part of your machine and should remain with the machine when you sell it. Measurements in this manual are given in both customary U.S. units and metric equivalents. Use only correct replacement parts and fasteners. Inch and metric fasteners may require a specific inch or metric wrench or socket. Right hand and left hand sides are determined by facing in the forward direction of travel. When a service person or mechanic is unfamiliar with all systems on this tractor, extra caution should be used when performing service work. A good working knowledge of the system and its components is important for removal or disassembly. The following is a list of basic precautions that should always be observed. 1. Make sure that you read and understand all warning plates and decals before lubricating or performing other maintenance. 2. Always wear protective glasses and footwear when working. In particular, wear safety glasses when pounding on any part of the machine or attachments with a hammer. Use protective clothing when welding. Do Not wear any loose fitting or torn clothing. Remove all rings from fingers before working on equipment. 3. Before starting work on the machine, disconnect battery and hang this DO NOT START sign in the operation station. Table of Content Sections of the Cameco 2254 Loader Repair Service Manual: Introduction Table of contents Safety recommendations Specifications Capacities Torque specifications Fluid recommendations General information Service points Hydrostatic system Hydrostatic pump Fwd/rev foot pedal Front axle motor Rear motor repair Main hydraulic system Pump repair Directional control valve Cylinder repair Relief valve Steering system Brake system Operator s station Transmission Four wheel torque hub Electrical system Index Two wheel / four wheel drive Control valves
