Case 1085B, 1086B Excavator Service Manual Workshop Guide

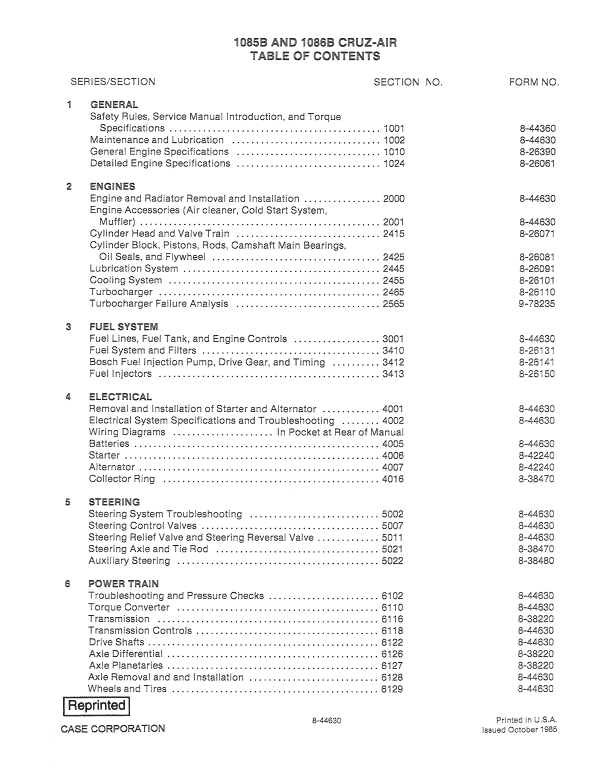

Manual Included: Service Manual: 919 pages Specifications: Brand: Case Model: 1085B and 1086B Type: Excavator Manuals: Service Manual Publication Numbers: 8-44630 (October 1985) Language: English Format: PDF Description Table of Contents General Engines Fuel System Electrical Steering Power Train Brakes Hydraulics Mounted Equipment Schematics Manual Extract The fuel injectors are in the cylinder head. There is one injector for each cylinder. The fuel injector sends a measured amount of fuel to the combustion chamber from the injection pump. Each quantity of fuel must be sent to the combustion chamber in the form of fine particles. This will make sure that there is complete combustion and efficient engine performance. IMPORTANT: The injector tip end and the injector valve are a matched assembly. The two parts are made smooth to fit together with accuracy. The injector tip or the injector valve can not be replaced separately for service. If it is necessary to replace either the valve or tip, replace the complete tip assembly. IMPORTANT: Do not mix tip assemblies and bodies while the injectors are being disassembled.
