Case 110, 115, 120, 130, 140 Maxxum EP Tractor Service Manual Workshop Guide

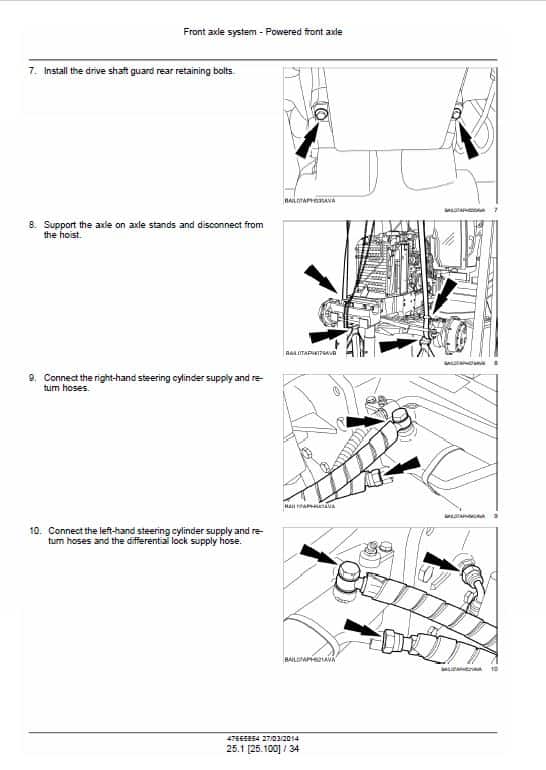

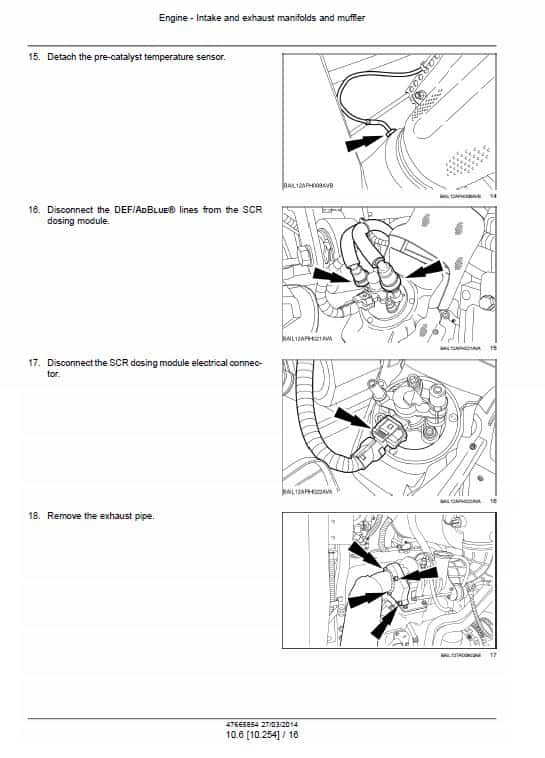

Manual Included: • Service Manual: 6049 pages Specifications: • Brand: Case • Model: 110, 115, 120, 130, 140 Efficient Power (EP) Maxxum • Type: Tractor • Manuals: Service Manual • Publication Number: 47665854 (Mar 2014) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Clutch Transmission Four Wheel Drive 4WD Front Axle System Rear Axle System Power Take Off (PTO) Brakes and Controls Hydraulic Systems Hitches, drawbars and implement couplings Frames and ballasting Steering Wheels Cab Climate Control Electrical System Platform, cab, bodywork and decals Special Tool Index Manual Extract: Differential Prior operation: Assemble the differential, for further information refer to Differential – Assemble (25.102) 1. Clean and degrease the mating surfaces and apply a bead of gasket sealer approximately 2 mm wide along the mating surface as indicated. NOTE: It is advisable that new seals are installed to avoid any leakages after assembly. 2. Install a suitable lifting eye bolt (1) to the pinion shaft. Attach suitable lifting equipment (2) to the lifting eye bolt. 3. Install the differential into the axle housing, making sure that the 2 locating dowels are located correctly. 4. Install the differential housing securing bolts and tighten to 137 Nm (101 lb ft). 5. Using suitable lifting equipment, reposition the front axle on the axle stands. Next operation: Install the axle shafts, for further information refer to Axle shaft – Install (25.108)
