Case 110, 120, 130 Maxxum CVT Tractor Service Manual Workshop Guide

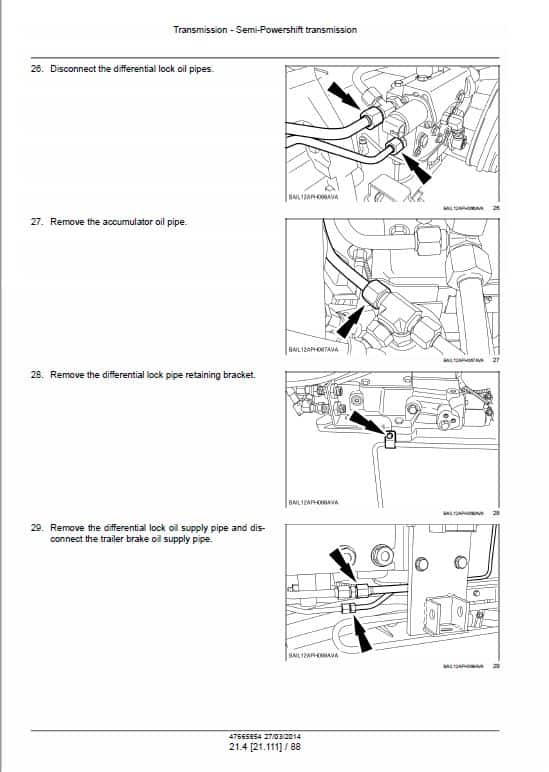

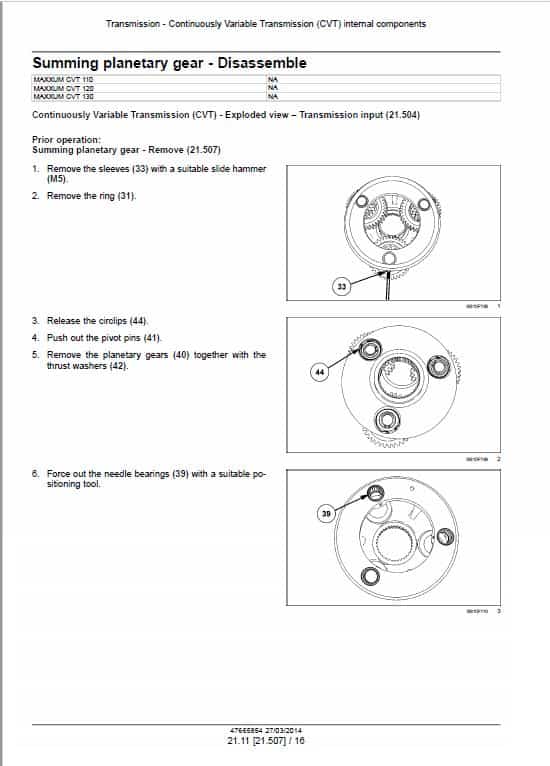

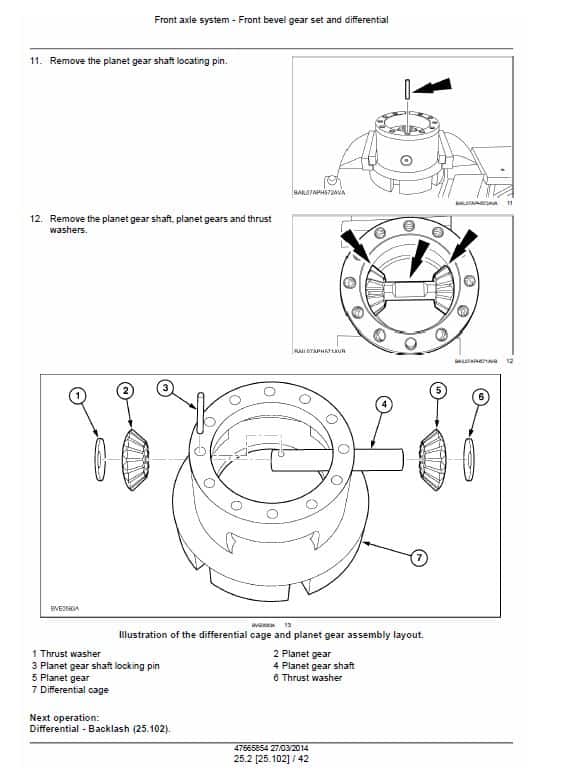

Manual Included: • Service Manual: 6409 pages Specifications: • Brand: Case • Model: 110, 120, 130 Maxxum CVT • Type: Tractor • Manuals: Service Manual • Publication Number: 47665854 (Mar 2014) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Clutch Transmission Four Wheel Drive 4WD Front Axle System Rear Axle System Power Take Off (PTO) Brakes and Controls Hydraulic Systems Hitches, drawbars and implement couplings Frames and ballasting Steering Wheels Cab Climate Control Electrical System Platform, cab, bodywork and decals Special Tool Index Manual Extract: Hydrostat or hydrostatic unit – Static description The hydrostatic unit consists of an electrically controlled variable displacement pump and a fixed displacement motor. The hydrostatic unit also consists of a solenoid valve, two pressure limiter valves, and a flush valve. The variable displacement pump and the fixed displacement motor are in a shared housing. The whole unit is in the flywheel housing. You must insert the hydrostatic unit into the transmission housing from the front. You must use centering pins to center the hydrostatic unit. The hydrostatic unit is a very compact and convenient unit. Hydrostatic pump The hydrostatic pump is an electrically controlled axial piston pump with a swash plate design. The oil flow of the pump can be negative (rotation direction of the motor). Under certain operating conditions, the oil flow of the pump can be positive (rotation direction of the motor). Control of the pump delivery volume There is a single-acting electrical adjustment unit to allow control of the pump delivery volume. You must center the adjustment unit precisely. This means that the pump state is zero delivery at no charge pressure. Hydrostatic motor The motor is a fixed displacement motor. The direction of rotation of the motor can be negative (counter-clockwise) or positive (clockwise).
