Case 1107EX Soil Compactor Service Manual Workshop Guide

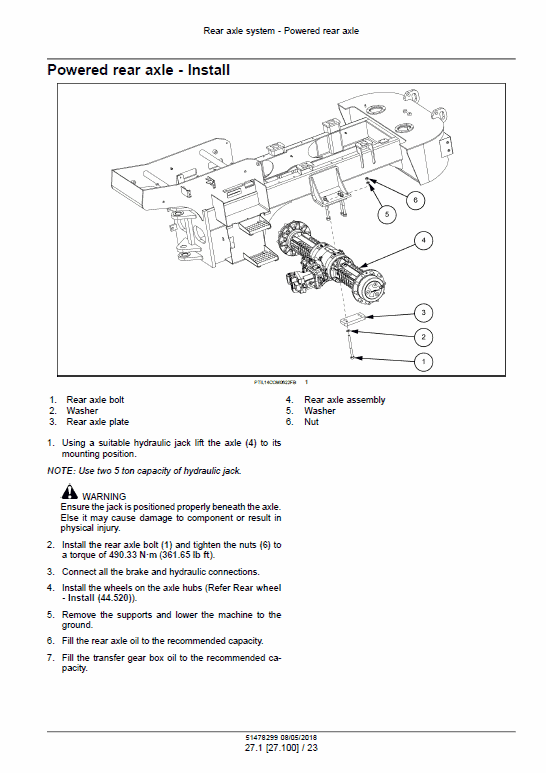

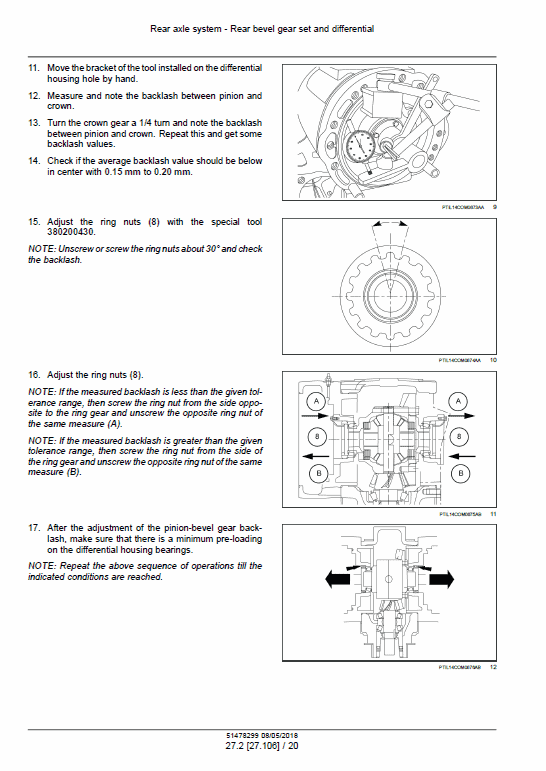

Manual Included: • Service Manual: 505 pages Specifications: • Brand: New Holland • Model: 1107EX • Type: Compactor • Manuals: Service Manual • Publication Numbers: 51478299 (May 2018) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Rear Axle System Hydrostatic Drive Brakes and Controls Hydraulic System Frames and Ballasting Steering Wheels Cab Climate control Electrical System Platform, Cab, Bodywork and Decals Special Tool Index Manual Extract: Axle shaft – Replace – Short half shaft bushing 1. Disassemble the reduction gear group and the short half-shaft from the axle beam and remove the seal ring (3) from the axle beam (5). NOTE: Replace the seal ring (3) if it is damaged. 2. Use a puller and remove the bush (4) from the axle beam (5). 3. Assemble the new bush (4) on the axle beam (5) using the suitable tool and a hammer. 4. Assemble the seal ring (4) to the axle beam (5) and check the correct position of the seal ring after the assembly.
