Case 1150H Crawler Dozer Service Manual Workshop Guide

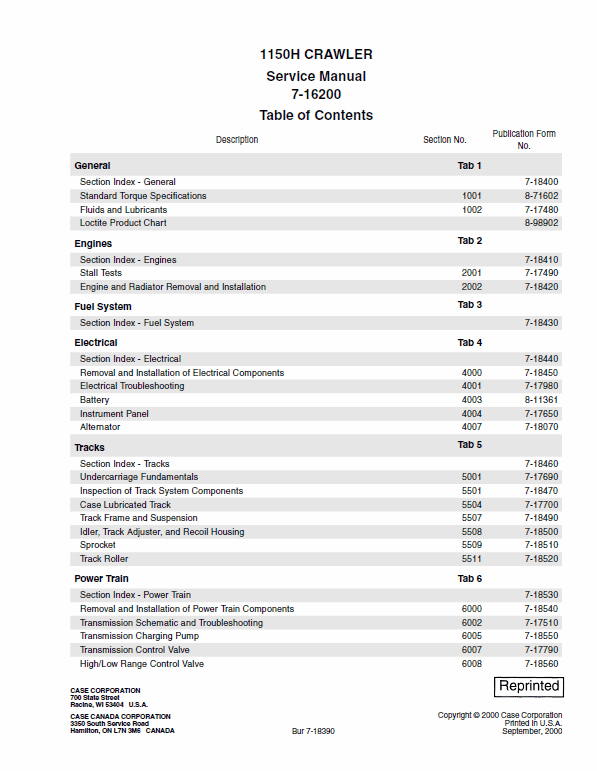

Manual Included: Service Manual: 858 pages Specifications: Brand: Case Model: 1150H Type: Dozer Manuals: Service Manual Publication Numbers: 7-18390 (September 2000) Language: English Format: PDF Description Table of Contents General Engines Fuel System Electrical System Track System Power Train Brakes Hydraulic System Mounted Equipment Electrical and Hydraulic Schematics Manual Extract TRANSMISSION CONTROL VALVE Removal 1. Park the machine on a level surface and lower the blade to the ground. 2. Put the master disconnect switch in the OFF position. 3. Remove the seat and the seat plate. 4. Remove the rear door. 5. Disconnect the batteries and remove the battery or batteries. 6. Disconnect the linkage from the spools in the transmission control valve. 7. Tag and disconnect the tubes from the transmission control valve. 8. Remove the bolts that fasten the transmission control valve to the transmission. 9. Remove the transmission control valve.
