Case 2100, 2300 Series Combines Service Repair Manual Workshop Guide

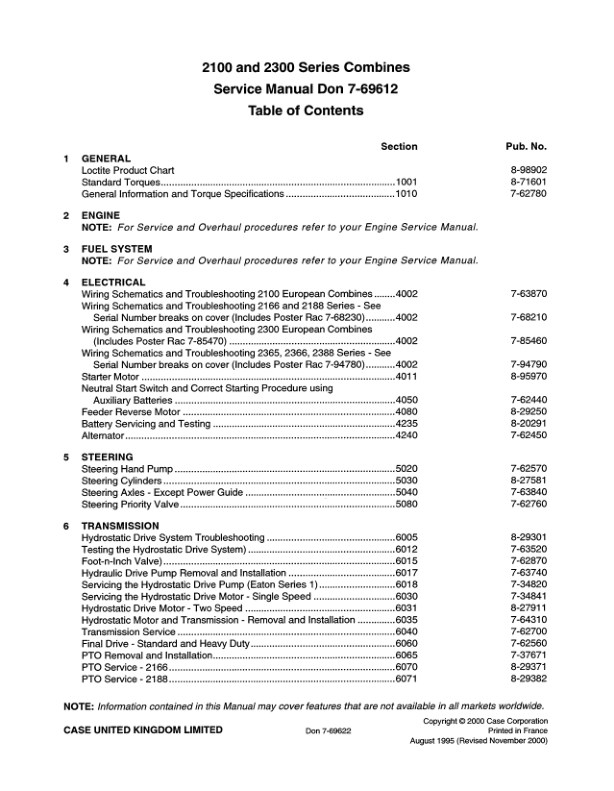

Manual Included: • Service Repair Manual – 1570 Pages Specifications: • Brand: Case • Model: 2100, 2300 Series • Type: Combines • Manuals: Service Repair Manual • Publication Numbers: 7-69612 • Language: English • Format: PDF Description Table of Contents 1. Standard Torques General Information and Torque Specifications …………………………………… 1001 2. Engine NOTE: For Service and Overhaul procedures refer to your Engine Service Manual. 3. Fuel System NOTE: For Service and Overhaul procedures refer to your Engine Service Manual. 4. Electrical Wiring Schematics and Troubleshooting 2100 European Combines ………….. 4002 Wiring Schematics and Troubleshooting 2166 and 2188 Series (See Serial Number breaks on cover, Includes Poster Rae 7-68230) ………… 4002 Wiring Schematics and Troubleshooting 2300 European Combines (Includes Poster Rae 7-85470) ……………………………………………………….. 4002 Wiring Schematics and Troubleshooting 2365, 2366, 2388 Series (See Serial Number breaks on cover, Includes Poster Rae 7-94780) ………… 4002 Starter Motor …………………………………………………………………………….. 4011 Neutral Start Switch and Correct Starting Procedure using Auxiliary Batteries …. 4050 Feeder Reverse Motor ……………………………………………………………….. 4080 Battery Servicing and Testing ……………………………………………………….. 4235 Alternator ………………………………………………………………………………….. 4240 5. Steering Steering Hand Pump …………………………………………………………………. 5020 Steering Cylinders ……………………………………………………………………. 5030 Steering Axles – Except Power Guide …………………………………………… 5040 Steering Priority Valve ……………………………………………………………….. 5080 6. Transmission Hydrostatic Drive System Troubleshooting ……………………………………. 6005 Testing the Hydrostatic Drive System ………………………………………….. 6012 Foot-n-Inch Valve ……………………………………………………………………… 6015 Hydraulic Drive Pump Removal and Installation …………………………… 6017 Servicing the Hydrostatic Drive Pump (Eaton Series 1) …………………. 6018 Servicing the Hydrostatic Drive Motor – Single Speed ………………….. 6030 Hydrostatic Drive Motor – Two Speed ………………………………………….. 6031 Hydrostatic Motor and Transmission – Removal and Installation ……. 6035 Transmission Service ……………………………………………………………….. 6040 Final Drive – Standard and Heavy Duty ………………………………………… 6060 PTO Removal and Installation …………………………………………………….. 6065 PTO Service – 2166 …………………………………………………………………… 6070 PTO Service – 2188 …………………………………………………………………… 6071 7. Brakes Brake Assemblies ……………………………………………………………………. 7010 Master Brake Valve …………………………………………………………………… 7020 European Park Brake ……………………………………………………………….. 7030 8. Hydraulics Accumulator …………………………………………………………………………….. 8005 Hydraulic Schematics and Troubleshooting 2100 Series ……………….. 8011 Hydraulic Schematics and Troubleshooting 2100 Series (See Serial Number Breaks on Section Cover, Includes Poster Rae 7-68240) …… 8011 Hydraulic Schematics and Troubleshooting 2300 Series (Includes Poster Rae 7-85430) ……………………………………………………. 8011 Pressure Regulator Valve ………………………………………………………….. 8015 Auxiliary Gear Pump and PFC Pump ………………………………………….. 8020 Main Hydraulic Valve Stack ……………………………………………………….. 8030 Separator Clutch and Unloading Auger Clutch Valves ………………….. 8050 Separator Drive Test and Troubleshooting (2188) ……………………….. 8051 Hydraulic Cylinders ………………………………………………………………….. 8060 Reel Drive Valve ………………………………………………………………………. 8080 9. Chassis Air Conditioning Troubleshooting – Visual and Operating ……………….. 9010 Air Conditioning Troubleshooting – 2300 Series (See Serial Numbers Breaks on Section Cover) …………………………… 9010 Air Conditioning System Gauges and Testing – For Systems with R-134a Refrigerant ………. 9020 Air Conditioning System Gauges and Testing – For Systems with R-134a Refrigerant (See Serial Numbers Breaks on Section Cover, Includes Poster Rae 7-93040) ………. 9020 Air Conditioning System Service – For Systems with R-134a Refrigerant ………. 9030 Air Conditioning Components Service – For Systems with R-134a Refrigerant ………. 9040 Separator Drive Jackshaft ………………………………………………………….. 9101 Rotor Drive ………………………………………………………………………………. 9102 Rotor Gearbox …………………………………………………………………………. 9103 Feeder and Cleaning Fan Gearbox …………………………………………….. 9105 Cleaning Fan Drive …………………………………………………………………… 9107 Elevator Drive Jackshaft ……………………………………………………………. 9109 Inclined Delivery Auger ……………………………………………………………… 9110 Discharge Beater …………………………………………………………………….. 9111 Unloader Auger System ……………………………………………………………. 9117 Field Tracker ……………………………………………………………………………. 9120 Cross-Flow Fan ………………………………………………………………………… 9121 Straw Chopper Gearbox ……………………………………………………………. 9125 Adjustable Concaves ………………………………………………………………… 9128
