Case 310G, 350 Crawler Dozer Service Manual Workshop Guide

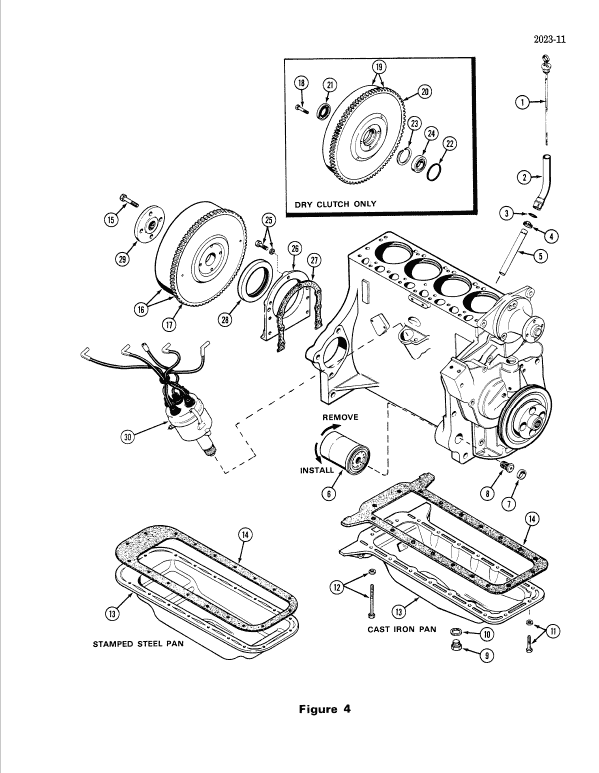

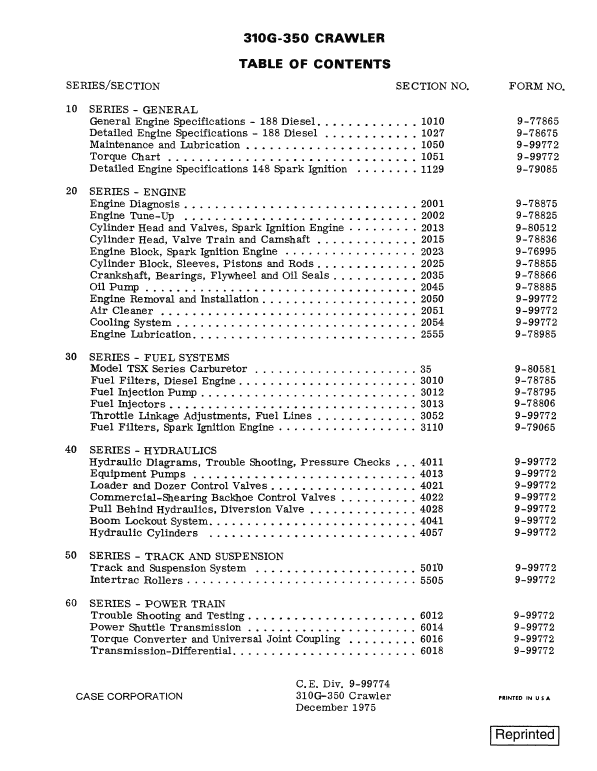

Manual Included: Service Manual: 974 pages Specifications: Brand: Case Model: 310G and 350 Type: Dozer Manuals: Service Manual Publication Numbers: 9-77865 (December 1975) Language: English Format: PDF Description Table of Contents General Engines Fuel System Hydraulic System Track and Suspension Power Train Electrical Mounted Equipment Manual Extract FLYWHEEL, OIL PAN, SEAL RETAINER AND OIL FILTER 1. Remove the oil pan drain plug with gasket to drain the engine and remove the engine oil filter and discard. 2. Remove the oil pan bolts and gasket. Remove all the gasket material from block and oil pan. 3. Remove the dipstick, extension tube, "O" ring and clamp if equipped, and the dipstick socket if it needs replacing. 4. Remove adapter and plug if adapter requires replacement. NOTE: On engines equipped with the timing marks on the flywheel it is advisable to rotate the flywheel until the TDC mark is lined up with timing pointer. Then scribe a mark on the front crankshaft pulley and timing cover. 5. Remove the flywheel mounting bolts or and flywheel assembly and special output hub if equipped. If the ring gear is worn or damaged, it must be driven or broken off the flywheel to be removed. 6. For dry clutch tractor flywheel, Inset A, remove oil seal, snap ring and "O" ring. Press bearing out of flywheel. 7. Remove the rear oil seal retainer and gasket Press seal from retainer. 8. Remove any cup plugs from block that need replacing by drilling a hole in them and pulling them out. 9. Remove the distributor
