Case 380 Tractor Service Manual Workshop Guide

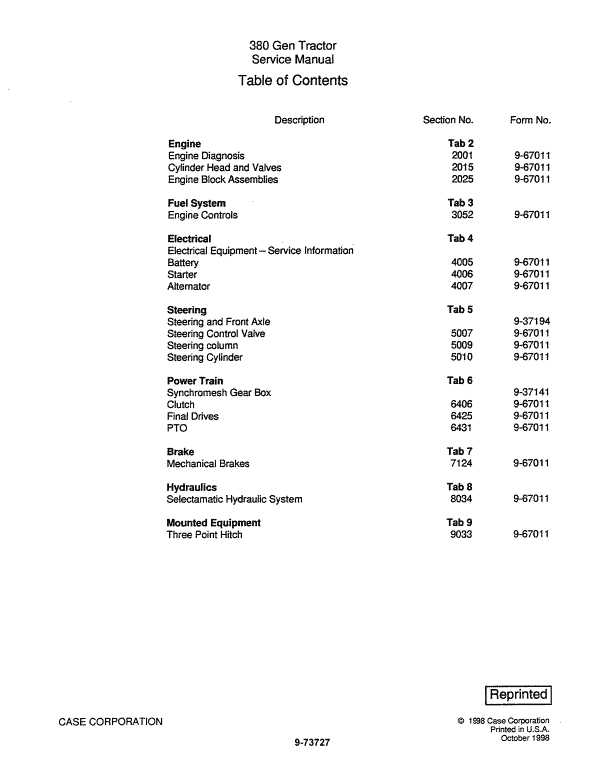

Manual Included: • Service Manual: 367 pages Specifications: • Brand: New Holland • Model: 380 • Type: Tractor • Manuals: Service Manual • Publication Numbers: 9-73727 (Oct 1998) • Language: English • Format: PDF Description Table of Content General Engine Fuel System Electrical Steering Power Train Brakes Hydraulics System Mounted Equipment Manual Extract: ALTERNATOR CHARGING CIRCUIT The alternator charging circuit consists of the battery, alternator with self contained voltage regulator, key switch, alternator warning light, and related wiring. The circuit is schematically illustrated in Figure 1. The alternator components are the front frame assembly, rear frame assembly, rotor, stator, voltage regulator, and rectifier assembly which contains the diodes. When the key switch is turned on, battery current flows through the alternator warning light and through the brushes to the rotor windings. This causes the Case 380 alternator warning light to light and provides initial current to the rotor (field) windings. When the engine is started, the revolving rotor induces current in the stator windings and this is fed into the rotor windings. As increased current through the rotor windings results in a further increase in current generated by the stator windings, a rapid buildup of current takes place. When voltage produced by the stator windings is greater than the voltage of the battery, current flows to the battery and the alternator warning light is extinguished to show that battery charging is taking place. The diode pack in the rectifier changes the alternating current (A.C.) generated in the stator windings so that direct current (D.C.) is supplied to the battery and rotor windings.
