Case 580C Loader Backhoe Service Manual Workshop Guide

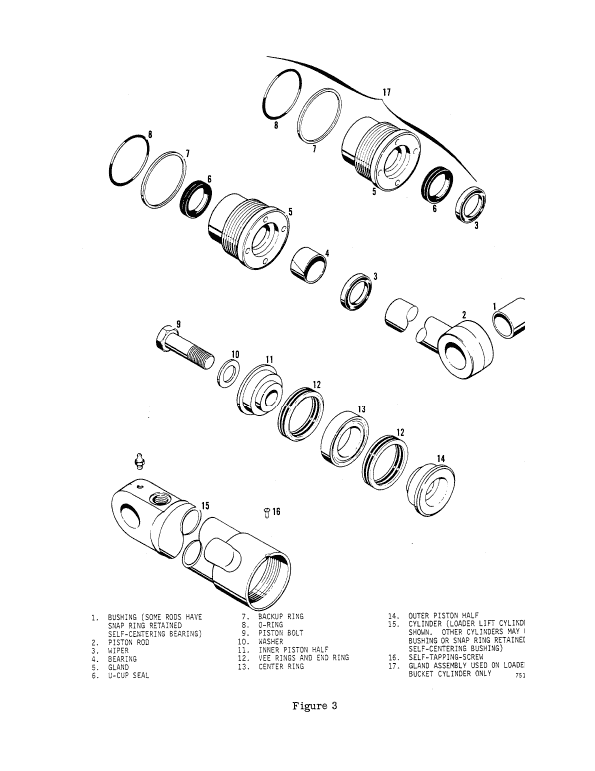

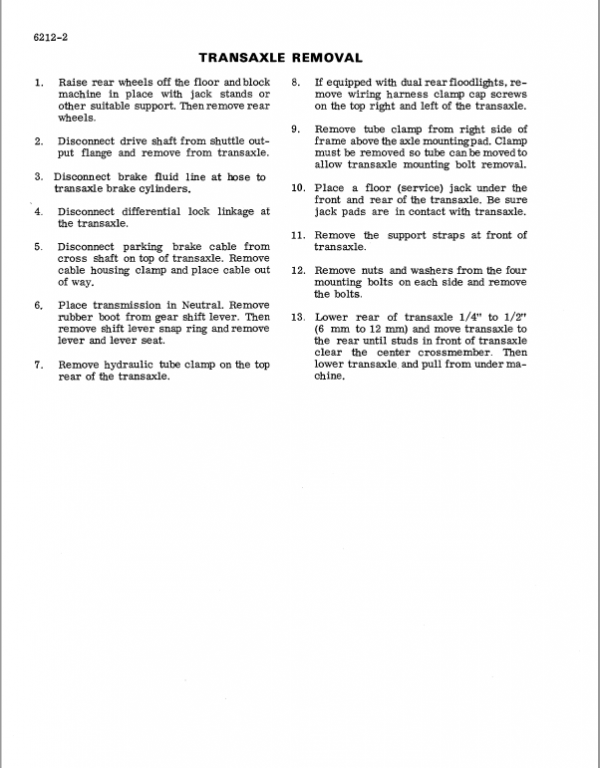

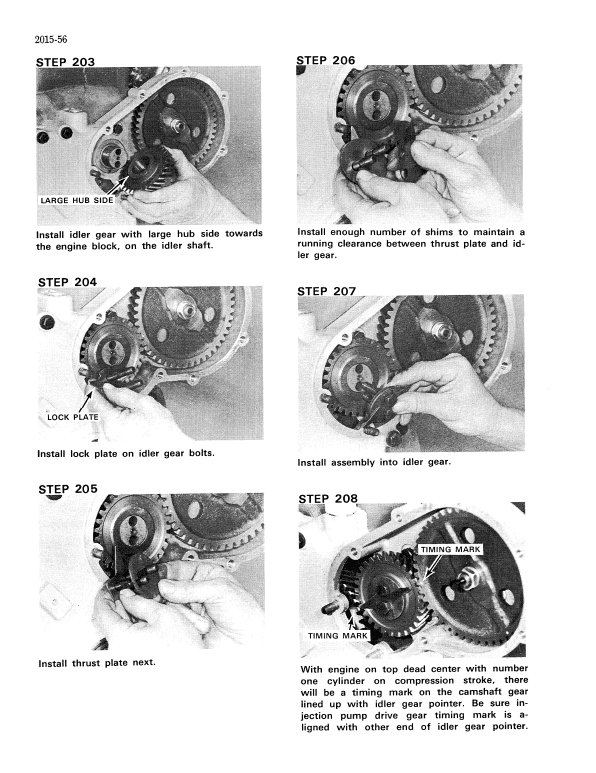

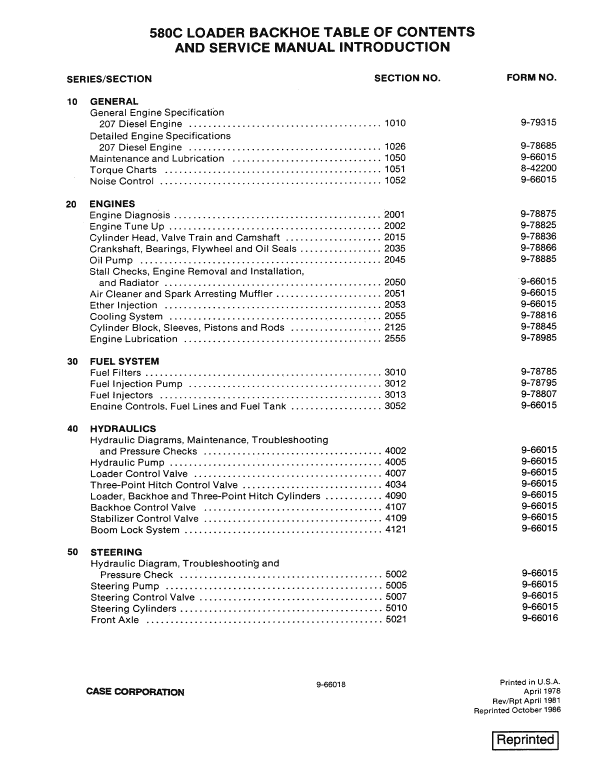

Manual Included: Service Manual: 831 pages Specifications: Brand: Case Model: 580C Type: Loader Manuals: Service Manual Publication Numbers: 9-78885 (October 1996) Language: English Format: PDF Description Table of Contents General Engines Fuel System Hydraulics Steering Power Train Brakes Electrical Mounted Equipment Manual Extract Radiator Removal and Installation 1. Remove grille and drain radiator. 2. Remove lower guard (or cover plate i f equipped with a counterweight). 3. Disconnect oil cooler lines at hose connections. Plug oil cooler to prevent oil loss and keep machine clean. Plug cooling lines to prevent entry of dirt. 4. Remove bottom radiator support to frame nuts, washers and bolts. 5. Remove the upper and lower radiator hoses. 6. Remove a i r cleaner intake tube i f so equipped. 7. Remove the rear mounting bolt on each side of shroud. 8. Attach chain hoist to shroud. Move shroud forward to clear the fan blades and lift shroud from machine. Set shroud on blocks. 9. Remove nuts and lock washers from studs on bottom of radiator. 10. Remove the radiator mounting strap to shroud nuts, washers and bolts on each side. Then remove radiator f r o m shroud. 11. I f radiator is being sent to a repair shop, use a sharp putty knife and remove the foam rubber baffles f r o m the radiator. Also remove the oil cooler. 12. Radiator installation is the reverse of removal. 13. Use a good grade of contact cement according to the manufacturer's instructions and cement baffles to radiator. The baffles must not be left off. 14. I f permanent antifreeze is not used in the cooling system be sure to use a rust. inhibitor and water pump lubricant. Also add anticavitation inhibitor, part number 331-508
