Case 580K Loader Backhoe Service Manual Workshop Guide

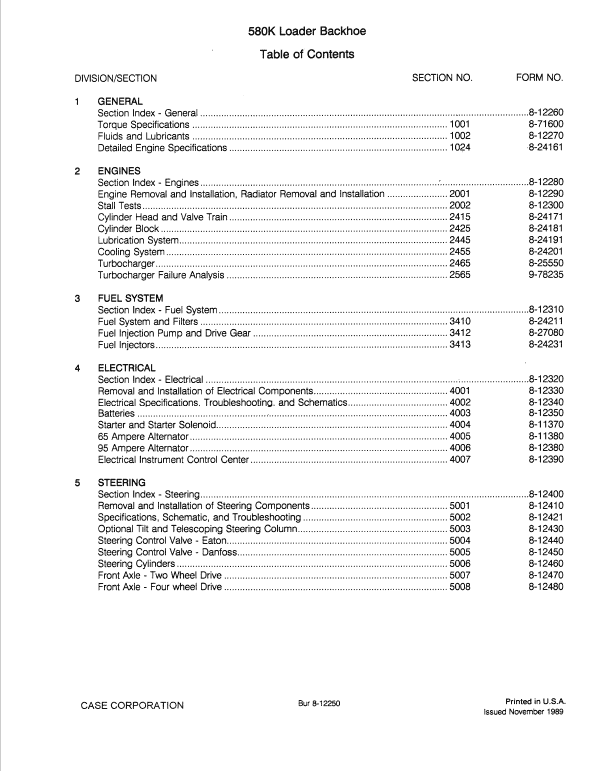

Manual Included: • Service Manual: 1447 pages Specifications: • Brand: Case • Model: 580K • Type: Loader • Manuals: Service Manual • Publication Numbers: 8-12250 (Nov 1989) • Language: English • Format: PDF Description Table of Contents General Engine Fuel System Electrical Steering Power Train Brakes Hydraulics Mounted Equipment Manual Extract Measuring Toe-In 1. Raise the front of the machine until the front wheels are free of the floor. 2. Hold a tool that has a sharp point against the center of the tire tread. 3. Hold the tool in one place and rotate the wheel to make a fine line around the tire. Repeat this procedure for the other front wheel. 4. Lower the front wheels to the floor. 5. Turn the steering wheel as needed to put the front wheels in the straight position. 6. Measure the distance between the marks at the front and rear of the tires. 7. The measurement at the rear of the tires must be 0 to 3/16 inch (Oto 5 mm) more than the measurement at the front of the tires.
