Case 580LE, 580SLE, 580LSP, 590SLE, 590LSP Loader Backhoe Service Manual Workshop Guide

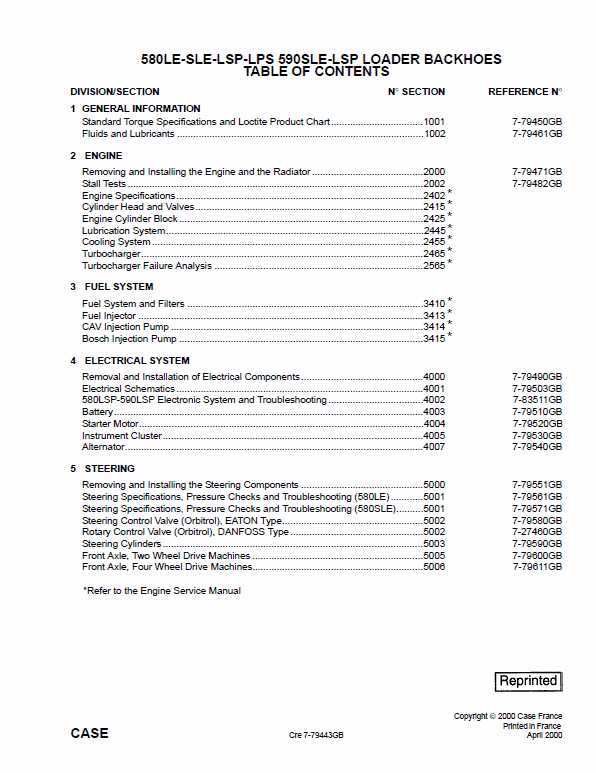

Manual Included: • Service Manual: 1492 pages Specifications: • Brand: Case • Model: 580LE, 580SLE, 580LSP, 590SLE, 590LSP • Type: Loader • Manuals: Service Manual • Publication Numbers: 7-79443GB (Apr 2000) • Language: English • Format: PDF Description Table of Contents Engine Electrical System Steering Transmission Brakes Hydraulic System Chassis/Attachment Manual Extract: TORQUE CONVERTER INLET PRESSURE CHECK Tools required CAS-1804 Pressure Test Kit Test procedure 1. Engage the parking brake. 2. Start the engine. 3. Oil at operating temperature. 4. 20 bar pressure gauge connected to test point M5. 5. All transmission controls in neutral. 6. Engine running at 2350 rpm. 7. Read gauge and record pressure. 8. See page 3 for specifications. CHECKING PRESSURE AT TORQUE CONVERTER OUTLET Tools required CAS-1804 Pressure Test Kit Test procedure 1. Engage the parking brake. 2. Start the engine. 3. Oil at operating temperature. 4. 20 bar pressure gauge connected to test point M7. 5. All transmission controls in neutral. 6. Engine running at 2200 rpm. 7. Read gauge and record pressure. 8. See page 3 for specifications.
