Case 588 Excavator Service Manual Workshop Guide

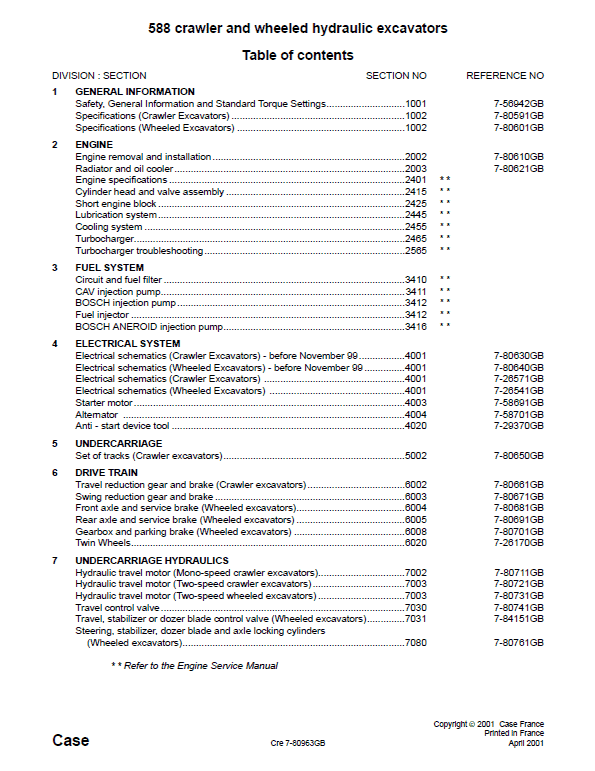

Manual Included: Service Manual: 762 pages Specifications: Brand: Case Model: Case 588 Type: Excavator Manuals: Service Manual Publication Numbers: 7-80591GB (November 1999) Language: English Format: PDF Description Table of Contents GENERAL INFORMATION ENGINE FUEL SYSTEM ELECTRICAL SYSTEM UNDERCARRIAGE DRIVE TRAIN UNDERCARRIAGE HYDRAULICS UPPERSTRUCTURE HYDRAULICS UPPERSTRUCTURE Manual Extract: Engine Make and model ……………………………………………………………………………………………………………………CASE 4T 390 Total SAE power rating at 2800 rpm…………………………………………………………………………………… 79.8 kW (108 hp) 4 stroke, 4 cylinder diesel engine ……………………………………………………………………………………………..turbocharged Displacement…………………………………………………………………………………………………………………………….. 3920 cm3 Bore…………………………………………………………………………………………………………………………………………….102 mm Stroke ………………………………………………………………………………………………………………………………………….120 mm Cooling ………………………………………………………………………………………………………………………………… water-cooled Battery start …………………………………………………………………………………………… Two 12-volt batteries, 24 V, 100 Ah Hydraulic system Variable flow circuit with all fuinctions independent and simultaneous. Working pressure …………………………………………………………………………………………………………………………..350 bar Total capacity of hydraulic reservoir ……………………………………………………………………………………………………. 115 L Total capacity of system …………………………………………………………………………………………………………………….184 L 2-body pump : 1 variable displacement body for the attachment and travel circuits …………………………………………….flow 210 L/min 1 fixed flow body for the upperstructure frame swing …………………………………………………………………..flow 44 L/min
