Case 621C, 721C Loaders Service Manual Workshop Guide

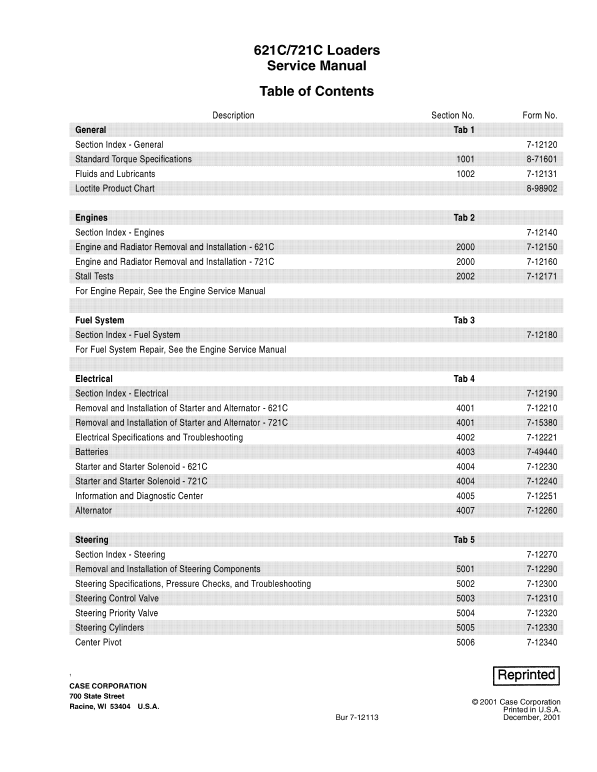

Manual Included: • Service Manual: 824 pages Specifications: • Brand: Case • Model: 621C, 721C • Type: Loader • Manuals: Service Manual • Publication Numbers: 7-12113 (Dec 2001) • Language: English • Format: PDF Description Table of Contents General Engines Electrical Steering Power Train Brakes Electric Schematics Hydraulic Schematics Manual Extract Transmission Filter Restriction Switch Check Do the following procedures to check the transmission filter restriction indicator light and the transmission filter restriction switch. 1. Press the program/reset switch to program. 2. Press the up/down count switch to up count until the display reads 026. The transmission filter restriction indicator light will flash intermittently. 3. Place the program/reset switch in the OFF (center) position. 4. The Information Center will display 00, when the machine is being checked, if the transmission filter restriction switch is not activated. If the transmission filter restriction switch is activated, the Information Center will display 01 while the transmission filter restriction switch is being checked. The transmission filter restriction indicator light will flash intermittently on the Information Center.
