Case 650H, 750H, 850H Crawler Dozer Service Manual Workshop Guide

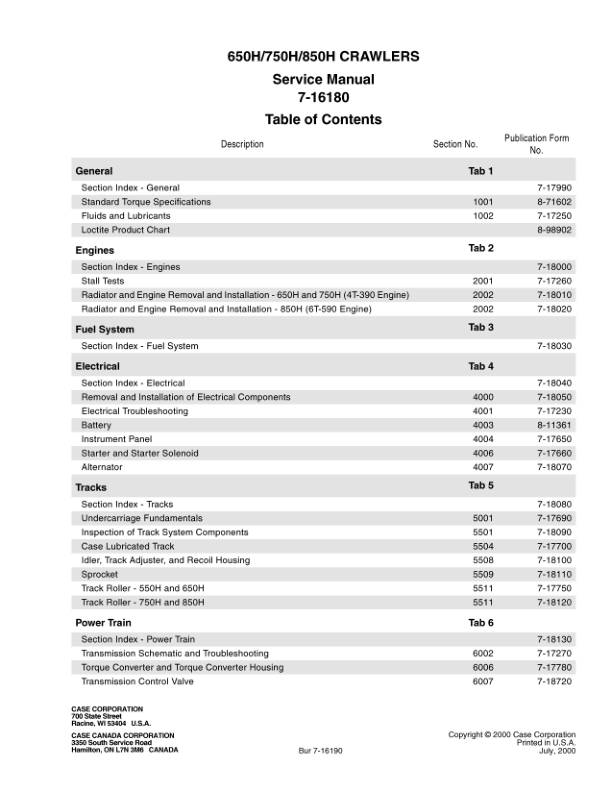

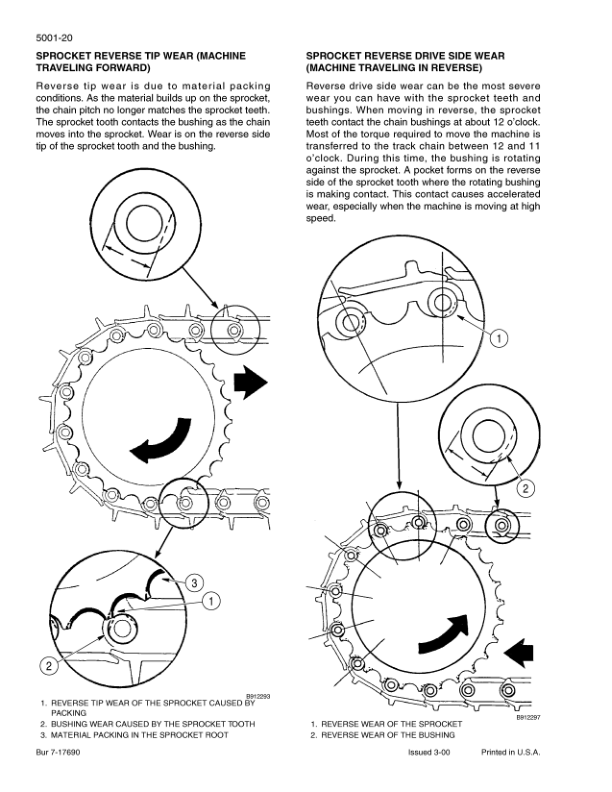

Manual Included: • Service Manual – 795 Pages Specifications: • Brand: Case • Model: 650H, 750H, 850H • Type: Dozer • Manuals: Service Manual • Publication Numbers: 7-16180 • Language: English • Format: PDF Description Table of Contents General Section Index – General Standard Torque Specifications Fluids and Lubricants Loctite Product Chart Engines Section Index- Engines Stall Tests Description Radiator and Engine Removal and Installation • 650H and 750H (4T-390 Engine) Radiator and Engine Removal and Installation – 850H (6T-590 Engine) Fuel System Section Index – Fuel System Electrical Section Index – Electrical Removal and Installation of Electrical Components Electrical Troubleshooting Battery Instrument Panel Starter and Starter Solenoid Alternator Tracks Section Index – Tracks Undercarriage Fundamentals Inspection of Track System Components Case Lubricated Track Idler, Track Adjuster, and Recoil Housing Sprocket Track Roller – 550H and 650H Track Roller – 750H and 850H Power Train Section Index – Power Train Transmission Schematic and Troubleshooting Torque Converter and Torque Converter Housing Transmission Control Valve High/Low Range Control Valve Transmission Final Drives Brakes Section Index- Brakes Table of Contents Removal and Installation of Brake Valve and Removing Air from Brake System Brake Valve Brakes Hydraulics Section Index – Hydraulics Removal and Installation of Dozer Control Valve and Equipment Pump Hydraulic Schematic and Troubleshooting Cleaning the Hydraulic System Equipment Pump Dozer Control valve Cylinders Mounted Equipment Section Index – Mounted Equipment Pedals, Levers, and Linkages Air Conditioning Troubleshooting and System Checks for Systems with HFC134a Refrigerant Air Conditioning System Service• Refrigerant Recovery, System Evacuation, and Recharging for Systems with HFC134a Refrigerant Removal and Installation of Air Conditioning System Components for Systems with HFC134a Refrigerant Air Conditioning Compressor and Clutch for Systems with HFC134a Refrigerant Dozer Blade ROPS Cab, ROPS Canopy, Seat Mounting, and Seat Belts Ripper Schematic Set Electrical and Hydraulic Schematic Foldout
