Case 888 Excavator Service Manual Workshop Guide

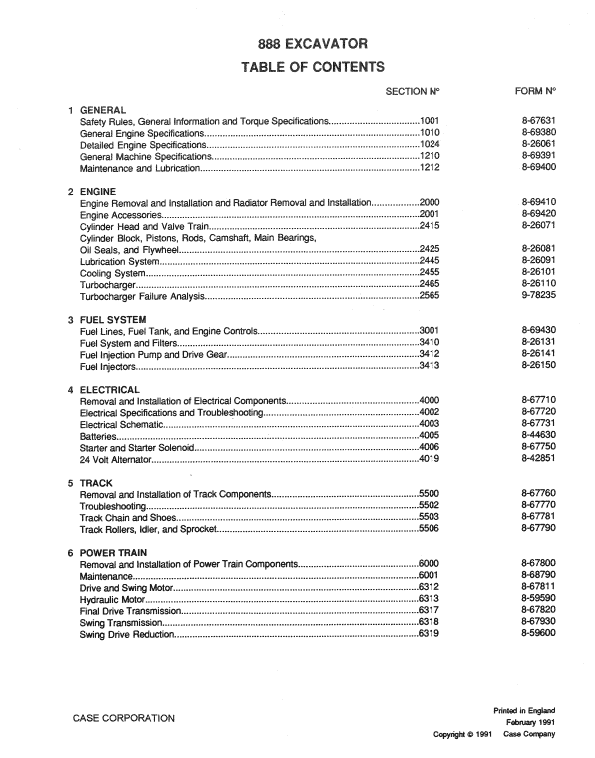

Manual Included: Service Manual: 981 pages Specifications: Brand: New Holland Model: 888 Type: Excavator Manuals: Service Manual Publication Numbers: 8-88642 (June 1990) Language: English Format: PDF Description Table of Contents General Engines Fuel System Electrical Track and Suspension Power Train Brakes Hydraulics Mounted Equipment Manual Extract: Engine Lubrication Fill the engine crankcase with CD service classification oil that has the correct viscosity rating for the ambient air temperature. Refer to Engine Lubrication on page 8. Install new oil filters, after the engine has been rebuilt. Run-In Procedure For Rebuilt Engine STEP 1 Disconnect the wire to the electric shut-off on the injection pump so that the engine will not start. Crank the engine for 30 seconds until there is oil pressure, then reconnect the wire. STEP 2 Remove the air from the cooling system at the temperature sending unit. STEP 3 Run the engine at 1000 rpm minimum load for 5 minutes and check for oil leaks. STEP 4 During the Run-In, continue to check the oil pressure, coolant level, and coolant temperature. Run-In Procedure For Rebuilt Engine (With A Dynamometer) The following procedure must be followed when using a PTO dynamometer to Run-In the engine. The dynamometer will control the engine load at each speed and will remove stress on new parts during Run-In.
