Case 9060B Excavator Service Manual Workshop Guide

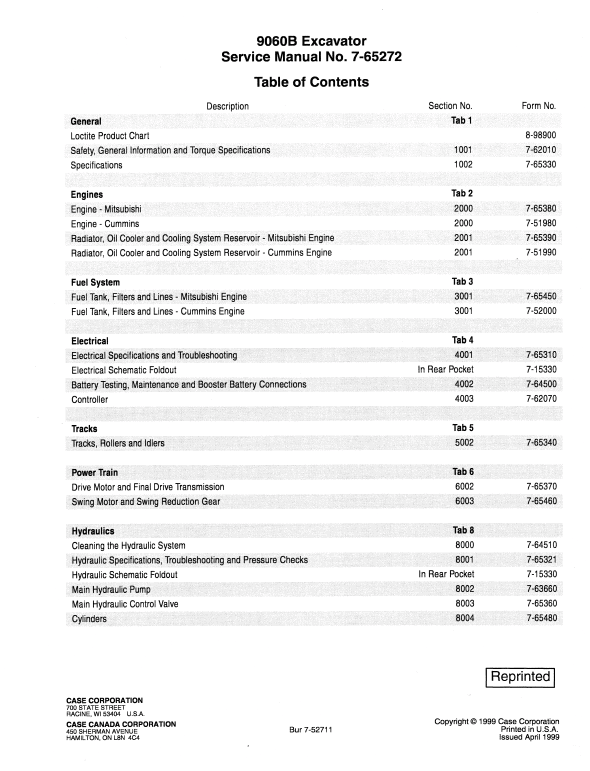

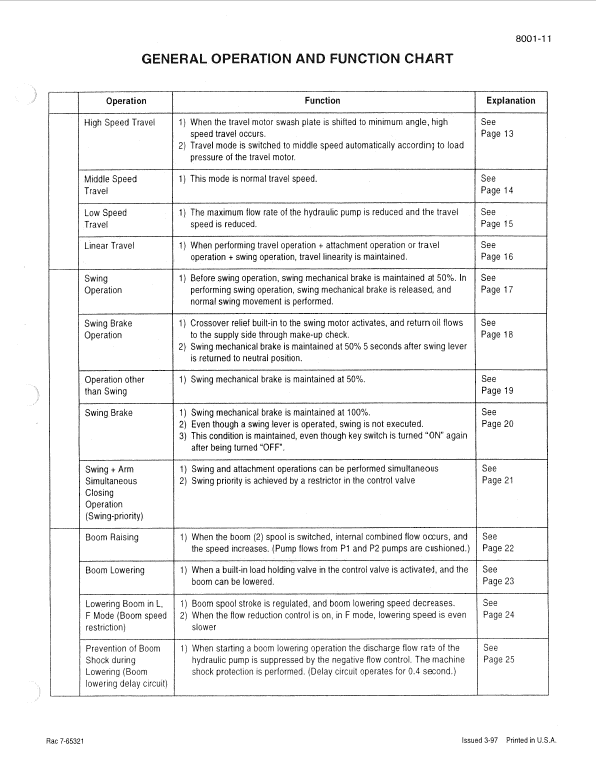

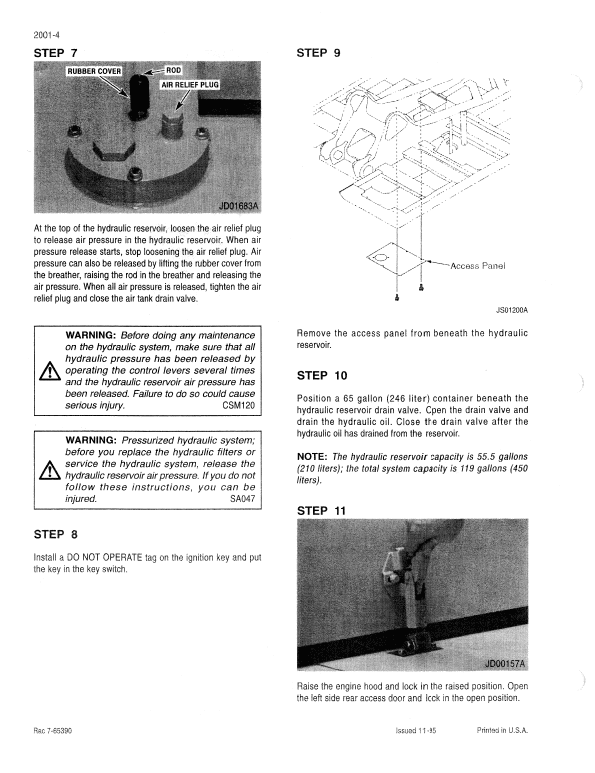

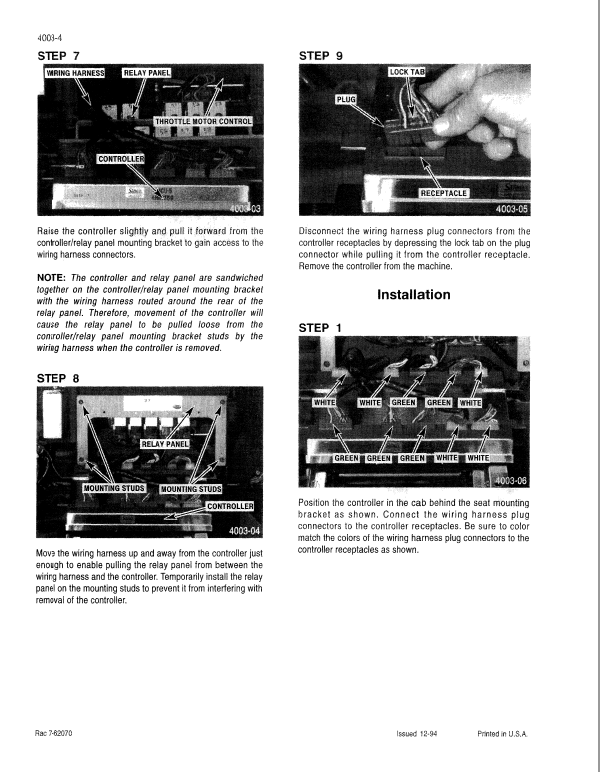

Manual Included: • Service Manual: 803 pages Specifications: • Brand: Case • Model: 9060B • Type: Excavator • Manuals: Service Manual • Publication Numbers: 7-52711 (Apr 1999) • Language: English • Format: PDF Description Table of Contents Specification Maintenance System Disassembling Troubleshooting Engine Installation Procedures for Optional Attachments Manual Extract Arm Cylinder NOTE: The numbers in parentheses;; in the following steps refer to the Arm Cylinder illustration on page 38. 1. Install the clamp (13} on the cylinder and secure with the cap screw ( 11) and washer ( 12). Tighten the cap screw to 25 lb-ft (32 Nm). 2. Install the hydraulic tubes (5) in the clamp (9) and secure the clamp with the lock washer (8) and cap screw (7). Tighten the cap screw to 31 lb-.ft (51 Nm). 3. Install two new 0-rings (6) on the cylinder. Connect the two tubes (5) to the cylinder and secure with eight socket head cap screws (4). Tighten the cap screws to 72 lb-ft (92 Nm). 4. Install a new 0-ring (3) in the end of the tube. Install the plug (2) in the end of the tube. Tighten the plug to 176 lb-ft (226 Nm). 5. Install the lubrication fitting (1) in the cylinder.
