Case CX130B Crawler Excavator Service Manual Workshop Guide

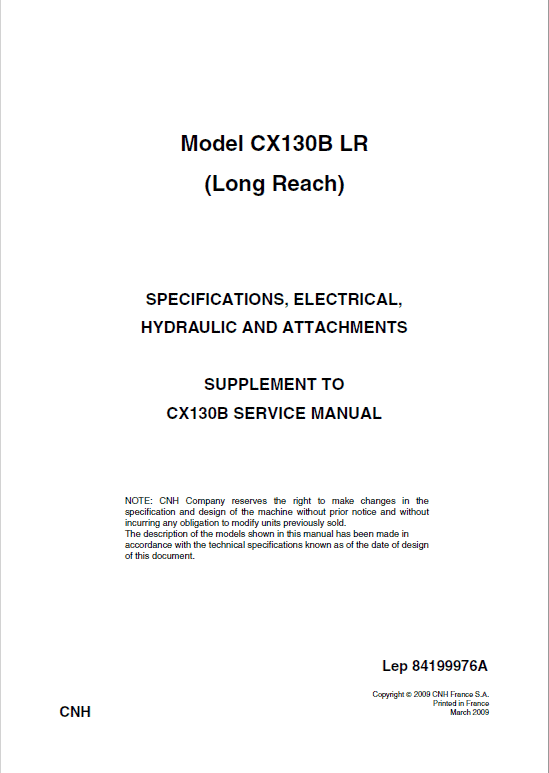

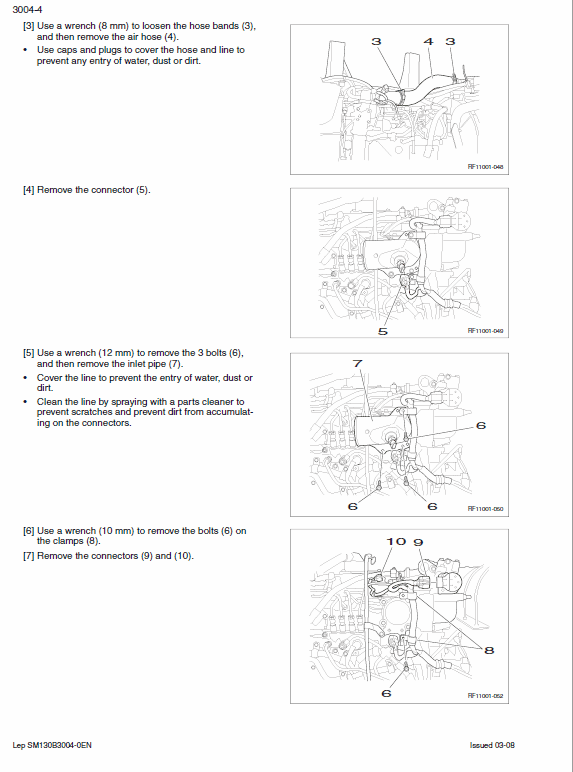

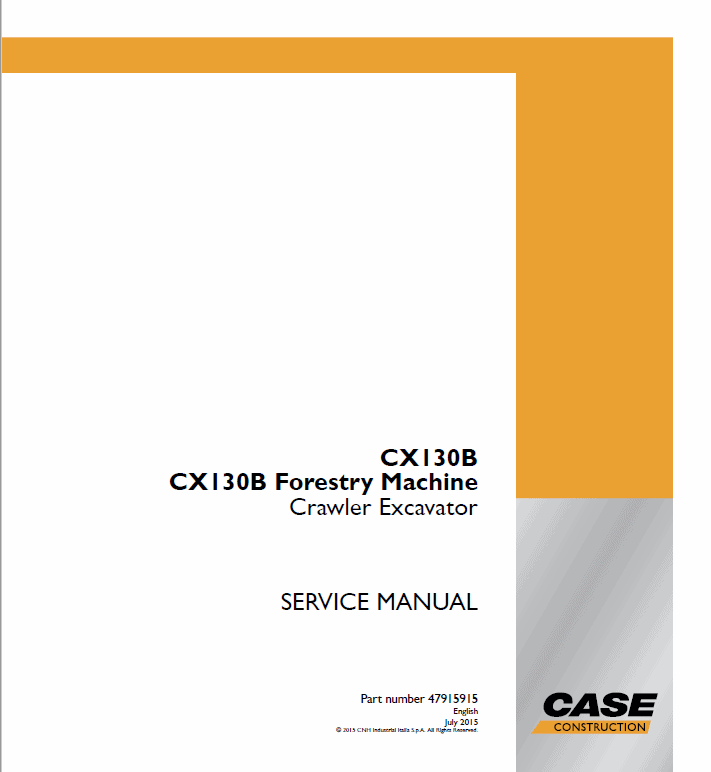

Manual Included: • Service Manual: 2081 Pages and 34 Pages Specifications: • Brand: New Holland • Model: CX130B  LR • Type: Excavator • Manuals: Service Manual • Publication Numbers: 47915915 (Jul 2015) and 84199976A (Mar 2009) • Language: English • Format: PDF Description Table of Contents General Information Engine Fuel System Electrical System Undercarriage Drive Train Upper structure Hydraulics Hydraulic Schematics Electrical Schematics Manual Extract: Coolant temperature sensor The coolant temperature sensor is installed on the engine block, and the thermistor changes the resistance in accordance with the temperature. Resistance is low when the engine coolant temperature is high and high when engine coolant temperature is low. The engine control module (ECM) applies 5 V to the coolant temperature sensor through pull-up resistance, calculates the engine coolant temperature from the voltage change, and this is used in various types of control such as fuel injection control. Voltage is low if the resistance is small (high temperature) and high if the resistance is large (low temperature).
