Case CX14 Excavator Service Manual Workshop Guide

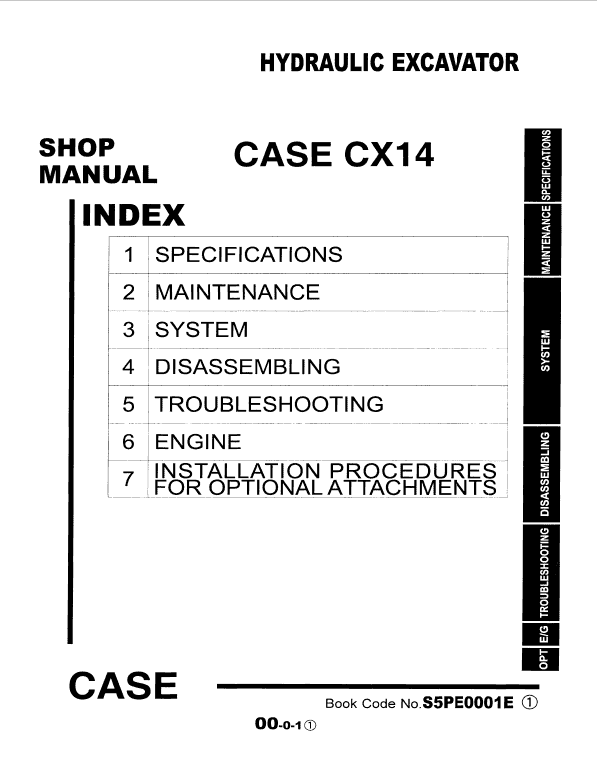

Manual Included: Service Manual: 497 pages Specifications: Brand: Case Model: Case CX14 Type: Excavator Manuals: Service Manual Publication Numbers: S5PE0001E Language: English Format: PDF Description Table of Contents Specification Maintenance System Disassembling Troubleshooting Engine Installation Procedures for Optional Attachments Manual Extract: DISASSEMBLING AND ASSEMBLING HYDRAULIC EQUIPMENT Removing hydraulic equipment 1) Before disconnecting pipes, release the hydraulic pressure of the system, or open the return side cover and take out the filter. 2) Carefully drain oil of the removed pipes into a containers without spilling on the floor. 3) Apply plugs or caps on the pipe ends to avoid oil spillage and dust intrusion. 4) Clean off the external surface of the equipment before disassembling, and drain hydraulic and gear oil before placing it on the workbench. Disassembling hydraulic equipment 1) Do not disassemble, reassemble or modify the hydraulic equipment without the permission of the manufacturer, who is not responsible for the performance and function of the product after reassembling. 2) When disassembling and reassembling for unavoidable reason, refer the work to qualified personnel who have the specific knowledge or completed the parts service training. 3) Provide matching marks to facilitate reassembling work. 4) Before starting the work, read the manual of disassembling procedure, if it is provided, and decide whether the work can be performed by yourself.
