Case CX145C SR Excavator Service Manual Workshop Guide

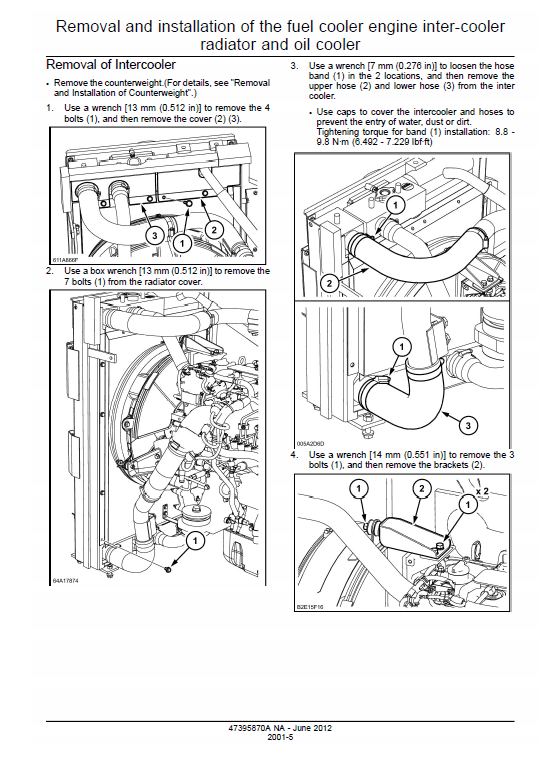

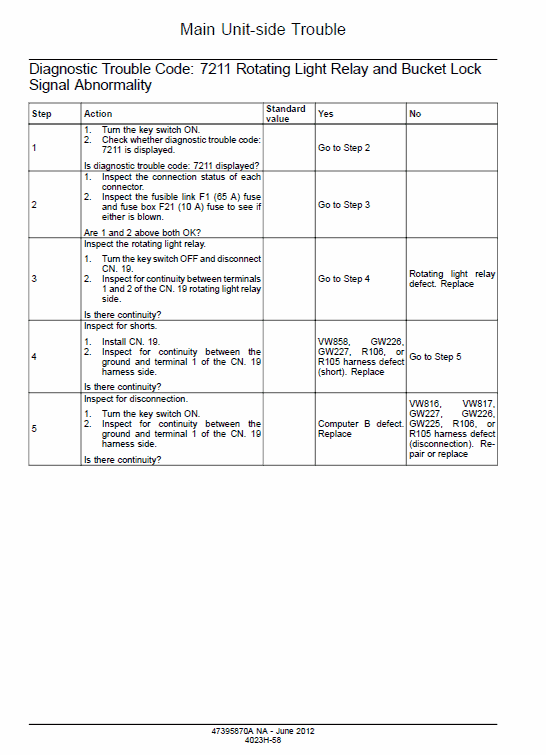

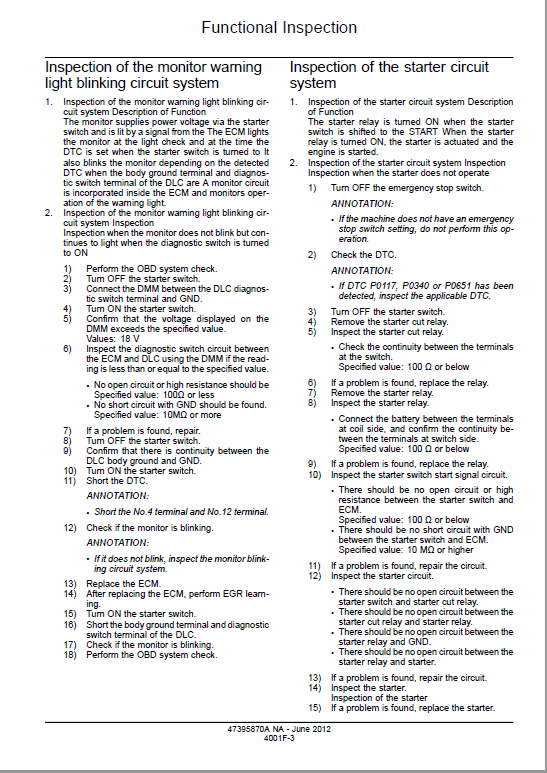

Manual Included: Service Manual: 2051 pages Specifications: Brand: Case Model: CX145C SR Type: Excavator Manuals: Service Manual Publication Numbers: 47395870A (July 2012) Language: English Format: PDF Description Table of Contents General Information Engine Fuel System Electrical System Undercarriage Drive Train Hydraulics Upper structure Electrical Schematics Hydraulic Schematics Manual Extract Description of functions and operations Engine electronic control The control provided by the control unit applies to the range from injection to air intake and exhaust including fuel injection amount, injection timing, air intake restriction, EGR and idling speed. Cylinder block The cylinder block is made of cast iron, and it has the equal center distance for each bore and a high rigidity, and the center of the crankshaft matches the center of the block. Piston The piston is a strut cast thermal flow piston made of aluminum alloy, and the combustion chamber is the round re-entrant type. Cylinder head The cylinder head is made of cast iron, and has four valves per each cylinder. The angle tightening method has been adopted to the cylinder head bolt to further improve its reliability and durability. Crankshaft The crankshaft is not to be polished for reuse, as it has TUFFTRIDE treatment applied. If a problem is found, replace with a new one. EGR system The EGR system is controlled by the engine control module (ECM) according to various data including the water temperature, engine RPM, and engine load to recirculate the exhaust gas for purification. The primary components are the EGR valve, EGR cooler, and various sensors. Identify the Tier Level of your Equipment (Read our Article on Tier Level )
