Case CX145D SR Crawler Excavator Service Manual Workshop Guide

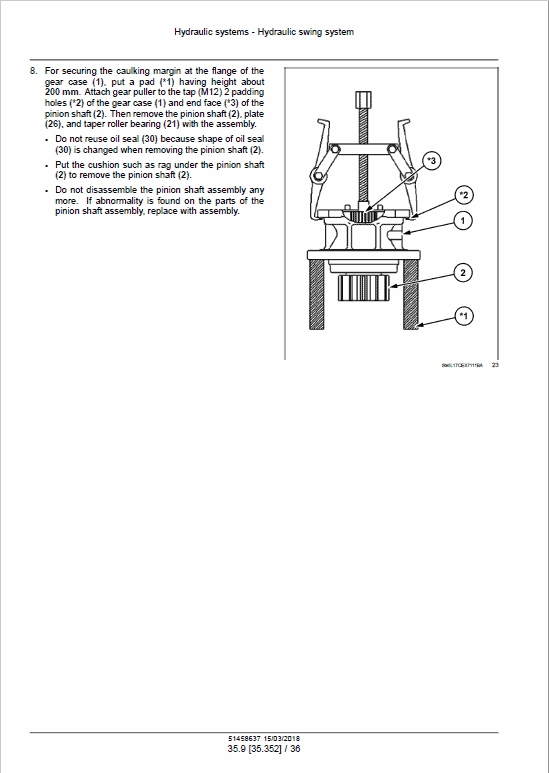

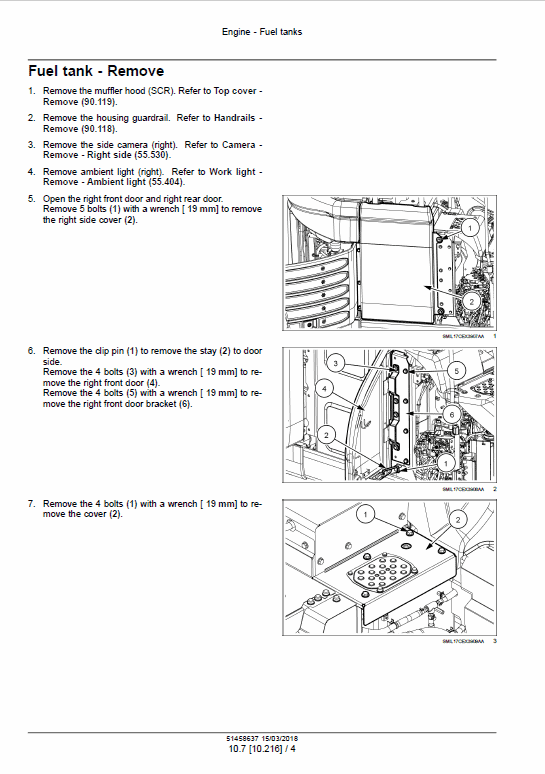

Manual Included: • Service Manual: 4446 Pages & 3656 Pages Specifications: • Brand: New Holland • Model: CX145D SR • Type: Excavator • Manuals: Service Manual • Publication Numbers: 51458637 (Mar 2018) & 51458821 • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Hydraulics System Frames and Ballasting Tracks and Track Suspension Cab Climate Control Electrical System Booms, dippers and buckets Dozer Blade and Arm Platform, cab, bodywork and decals Special Tools Index Hydraulic Schematics Electrical Schematics Manual Extract: Link between rear flange and spindle 1. Fit the O-rings (32) and (33) (2 pieces) into the O-ring grooves in spindle (2). NOTE: when fitting the O-rings (32) and (33), do not apply grease to them.If they are reassembled with grease applied, the grease may ooze from the mating surface between rear flange (301) and spindle (2) while the travel motor is running. This may be mistaken for oil leakage; therefore, do not apply any grease. 2. Put 1.0 L (0.26 US gal) of hydraulic fluid in the spindle (2). 3. Aligning the parallel pins (34) (2 pieces) inserted in the spindle (2) with the pin holes in rear flange (301), fit the rear flange (301) into the spindle (2). 4. Temporarily tighten the hexagon socket head bolts (343) (10 pieces) to the spindle (2) with a hexagon wrench. NOTE: make sure the hexagon socket head bolts (343) (10 pieces) are tightened evenly so that the rear flange may not be inclined, because the internal springs (113) will make it float gradually from the mating surface.
