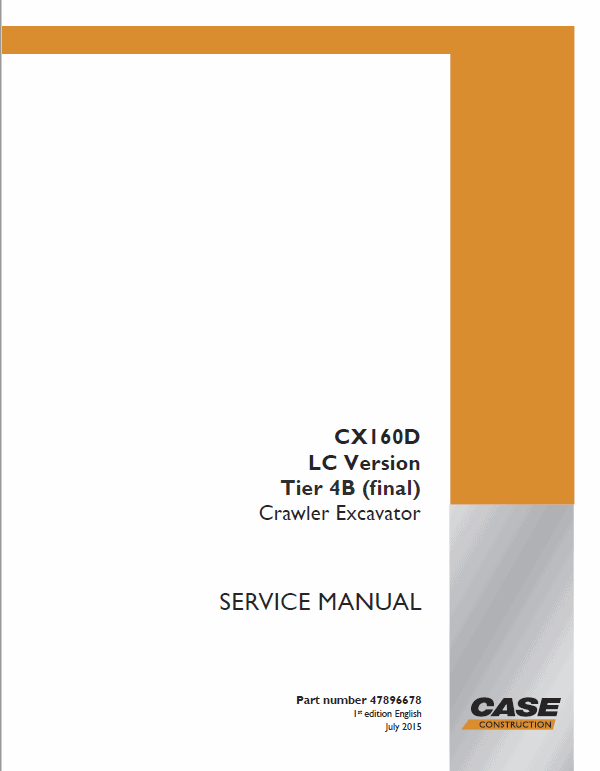

Case CX160D Crawler Excavator Service Manual Workshop Guide

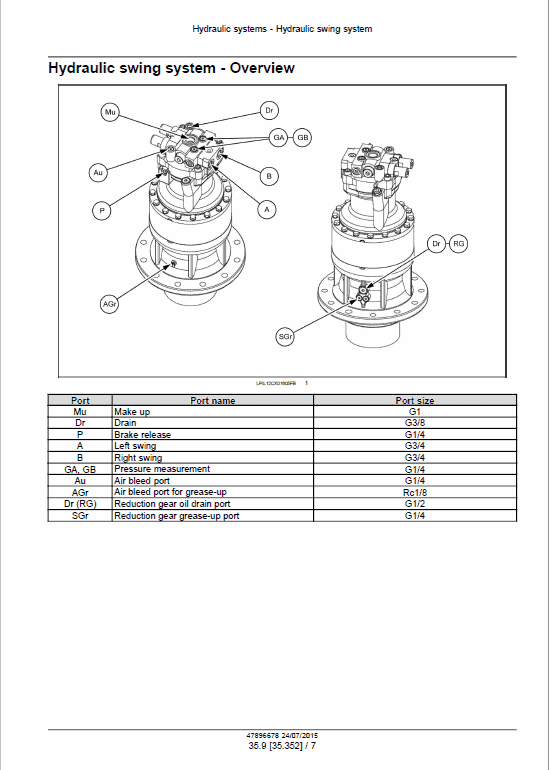

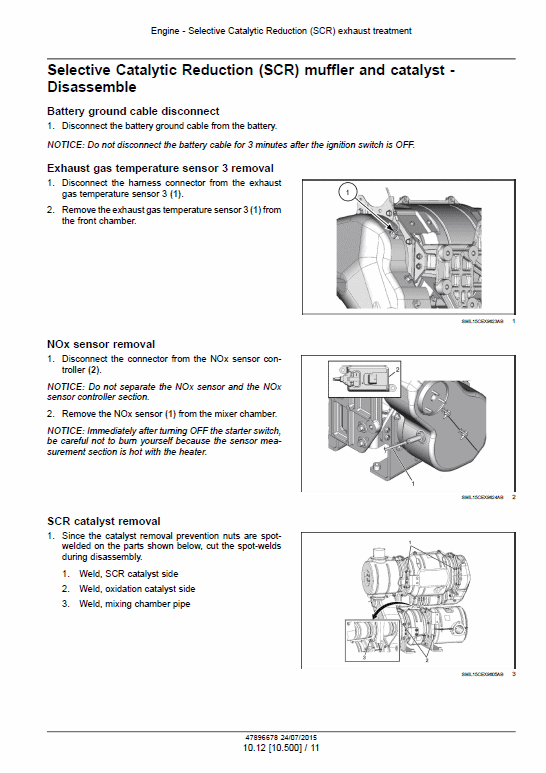

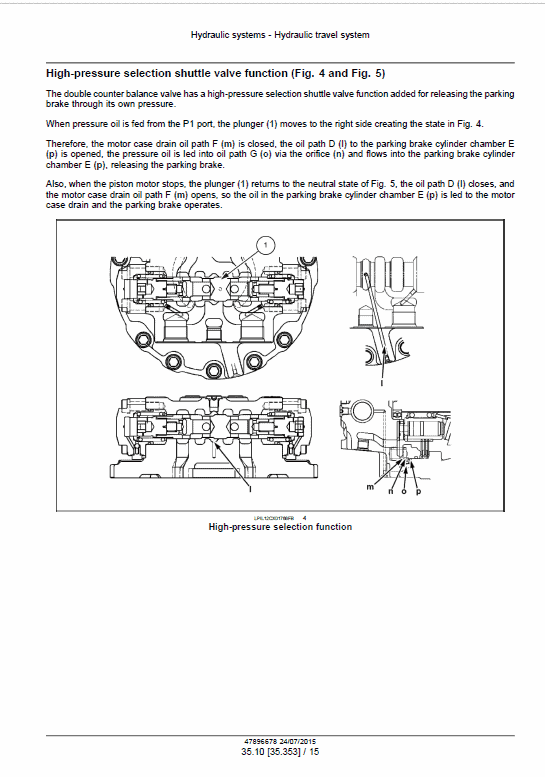

Manual Included: • Service Manual: 3121 Pages & 3207 Pages Specifications: • Brand: New Holland • Model: CX160D • Type: Excavator • Manuals: Service Manual • Publication Numbers: 47996196 & 47896678 (Jul 2015) • Language: English • Format: PDF Description Table of Contents Contents Introduction Engine Hydraulic systems Frames and ballasting Tracks and track suspension Cab climate control Electrical systems Booms, dippers and buckets Plateform, cab, bodywork and decals Special Tool index Hydraulic Schematics Electrical Schematics Manual Extract: Cooling fan belt adjustment 1. Adjust the cooling fan belt. • Loosen the adjust plate lock bolt and the mounting bolt at the bottom side of the generator (3). • Turn the adjust bolt (4) to adjust the belt. • Press the specified position on the belt with the specified load to inspect the amount of belt flex (7). Load: 98 N (22 lb) • Verify whether precise tension has been set using a sonic tension meter. Amount of deflection New: 4.2 – 5.0 mm (0.1654 – 0.1969 in) When adjusting the tension: 6.6 – 7.4 mm (0.2598 – 0.2913 in) Frequency of vibrations New: 220 – 244 Hz When adjusting the tension: 182 – 206 Hz 1. Crankshaft pulley 2. Installation bolt 5. Lock nut 6. Fan pulley
