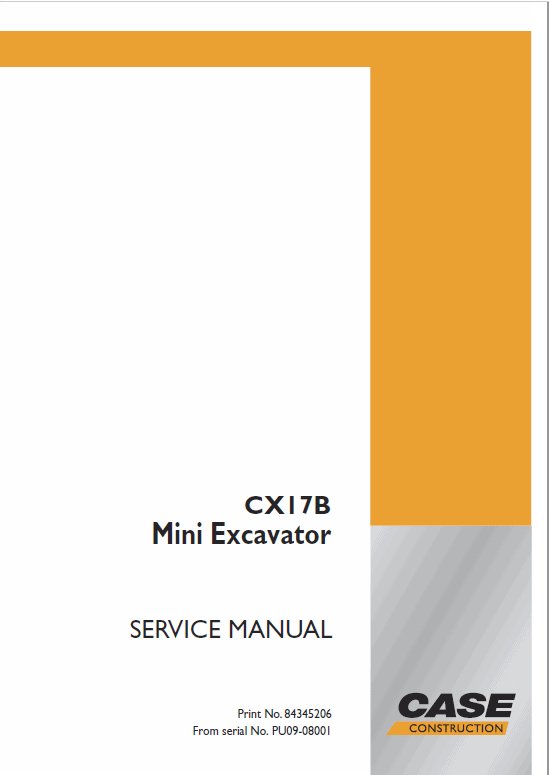

Case CX17B Mini Excavator Service Manual Workshop Guide

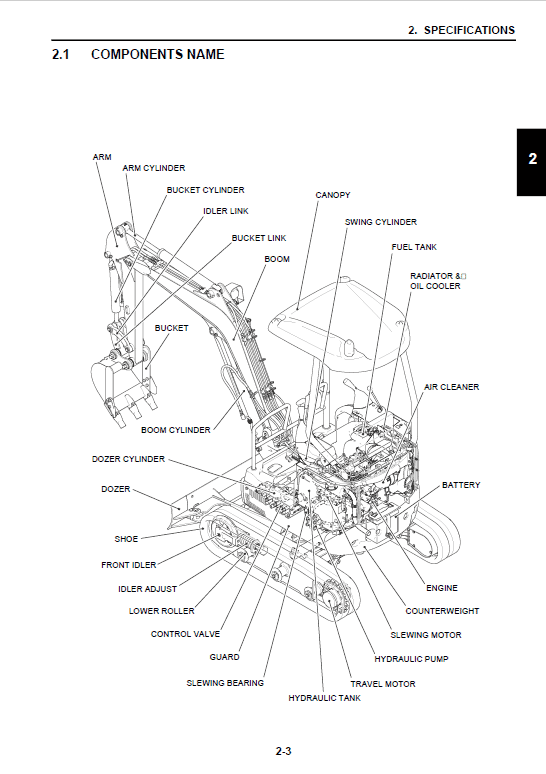

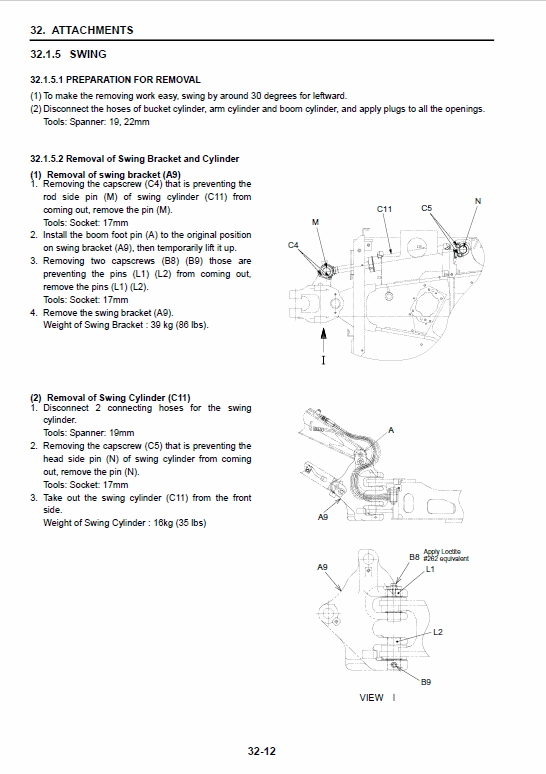

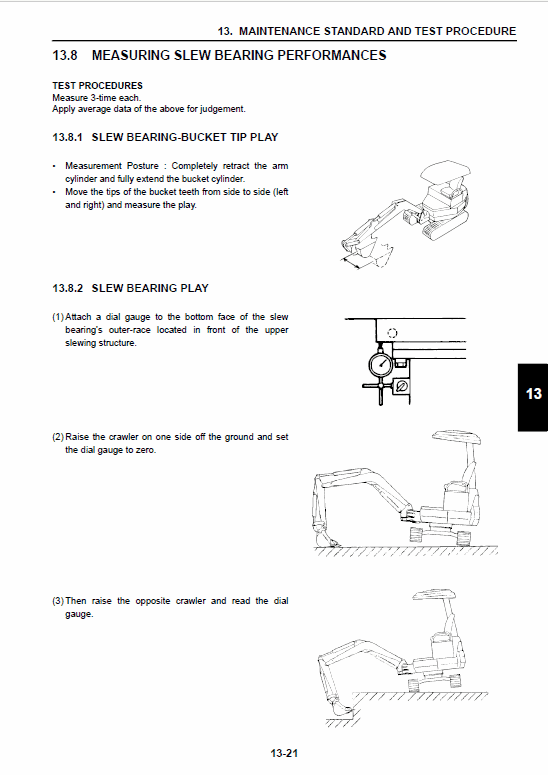

Manual Included: • Service Manual: 695 pages Specifications: • Brand: New Holland • Model: CX17B • Type: Mini Excavator • Manuals: Service Manual • Publication Numbers: 84345206 • Language: English • Format: PDF Description Table of Content ( Service Manual) Index Specification Maintenance System Disassembling Troubleshooting E/G Manual Extract: SLEW OPERATING CIRCUIT Pilot oil hydraulic system with operating lever 22.3.4.1 Slew (left) Operating Circuit (1) Pilot Circuit 1. Slew Valve Spool Shifting With operation for slew (left), the pilot secondary pressure oil is generated from the pilot valve (11), and led to the Pa1 port of control valve (2) to shift the slew valve spool. (2) Main Circuit 1. Supply Circuit for Slewing Motor (3) The oil delivered from the P3 port on hydraulic oil pump (1) is supplied to the A port on slewing motor (3) through the P3 port on control valve (2) and slew valve to drive the slewing motor. 2. Slewing Motor (3) a. The relief valve (304) relieves rapidly increased pressure at start and stop of the machine to ease shock. b. The make-up valve (check valve) (305) has a function to replenish oil from the return oil circuit that is led to the tank [T2 port on control valve (2)] to the slewing motor, to prevent the slewing motor from the cavitation due to negative pressure generated in it because of inertia on the slewing mass.
