Case CX17C Mini Excavator Service Manual Workshop Guide

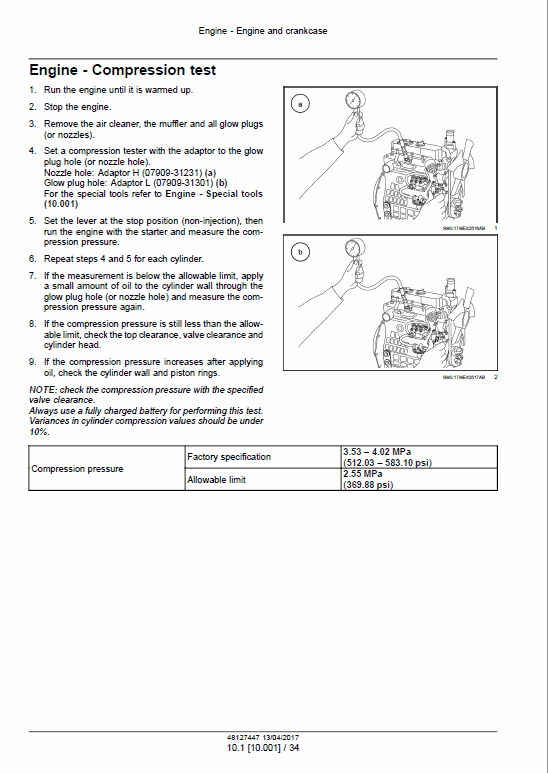

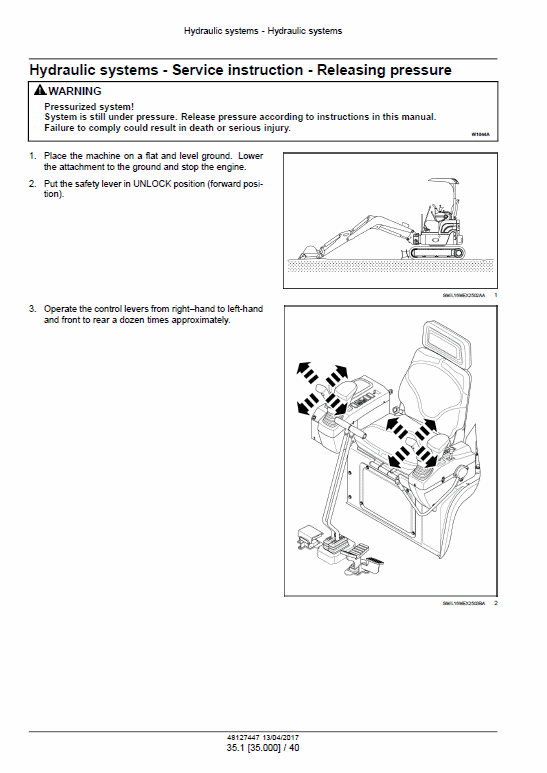

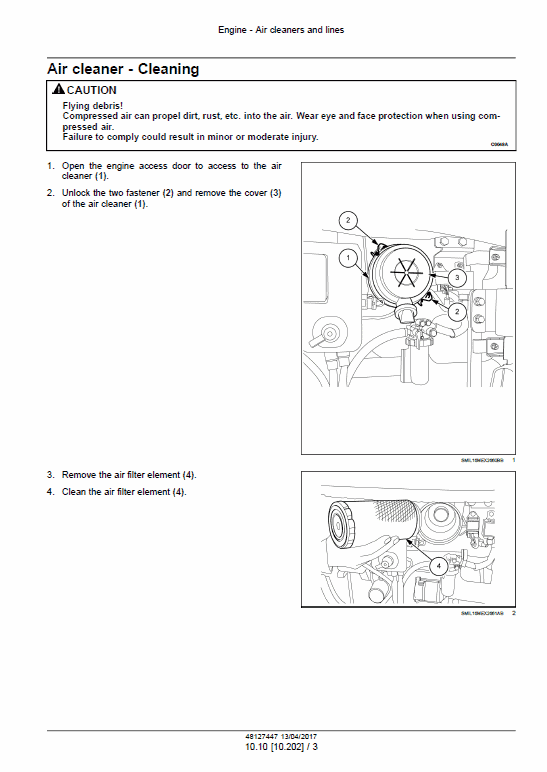

Manual Included: • Service Manual: 1072 pages Specifications: • Brand: New Holland • Model: CX17C • Type: Mini Excavator • Manuals: Service Manual • Publication Numbers: 48127447 (April 2017) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Hydraulics System Frames and Ballasting Tracks and Track Suspension Electrical System Booms, dippers and buckets Dozer Blade and Arm Platform, cab, bodywork and decals Special Tools Index Electrical Schematic Hydraulic Schematic Manual Extract: Camshaft alignment 1. Support the camshaft with V blocks on the surface plate at both end journals. 2. Set a dial indicator with its tip on the intermediate journal. 3. Measure the camshaft alignment. 4. If the measurement exceeds the allowable limit, replace the camshaft. Camshaft alignment Allowable limit: 0.01 mm (0.0004 in) SMIL17MEX0580AB 4 Cam height 1. Measure the height of the cam at its highest point with an outside micrometer. 2. If the measurement is less than the allowable limit, replace the camshaft. Cam height (intake and exhaust) Factory specification: 26.88 mm (1.058 in) Allowable limit: 26.83 mm (1.056 in)
