Case CX180D Crawler Excavator Service Manual Workshop Guide

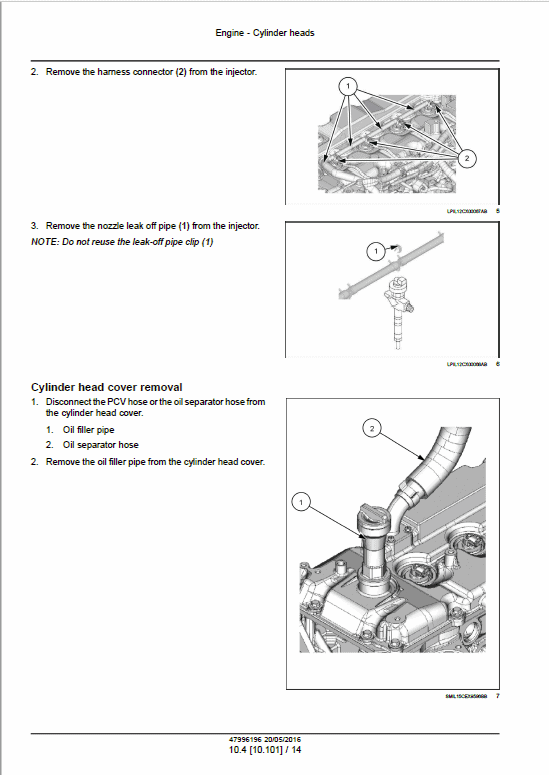

Manual Included: • Service Manual: 3207 pages Specifications: • Brand: New Holland • Model: CX180D • Type: Excavator • Manuals: Service Manual • Publication Numbers: 47996196 (May 2016) • Language: English • Format: PDF Description Table of Contents Contents Introduction Engine Hydraulic systems Frames and ballasting Tracks and track suspension Cab climate control Electrical systems Booms, dippers and buckets Platform, cab, bodywork and decals Special Tool index Hydraulic Schematics Electrical Schematics Manual Extract: Glow plug removal 1. Remove the glow plug connector from the glow plug. 2. Remove the glow plug from the cylinder head assembly. Injection pipe removal 1. Remove the clip from the inlet pipe. 2. Remove the injection pipe from the injector and the common rail assembly (7). NOTE: Do not reuse the removed injection pipe. NOTICE: Seal the common rail and injector to prevent foreign material from entering. 1. No.1 injection pipe 2. No.2 injection pipe 3. No.3 injection pipe 4. No.4 injection pipe 5. Fuel leak-off pipe 6. Fuel pipe
