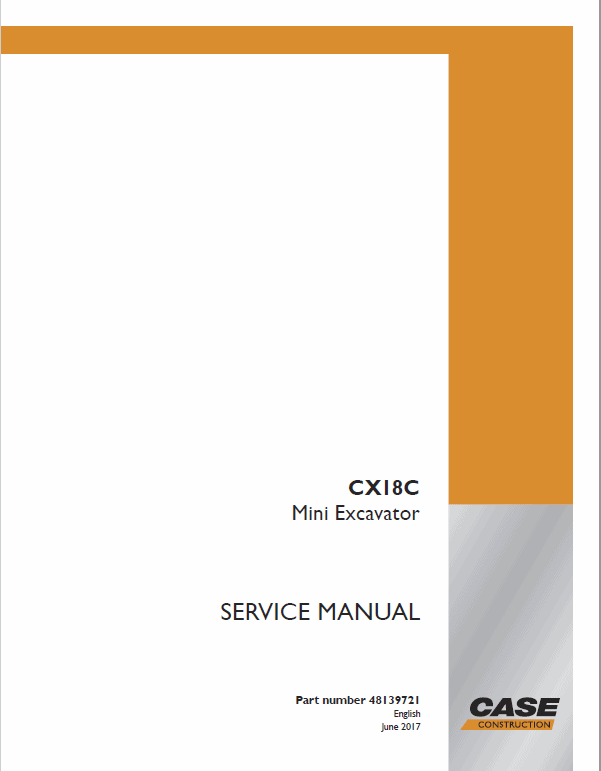

Case CX18C Mini Excavator Service Manual Workshop Guide

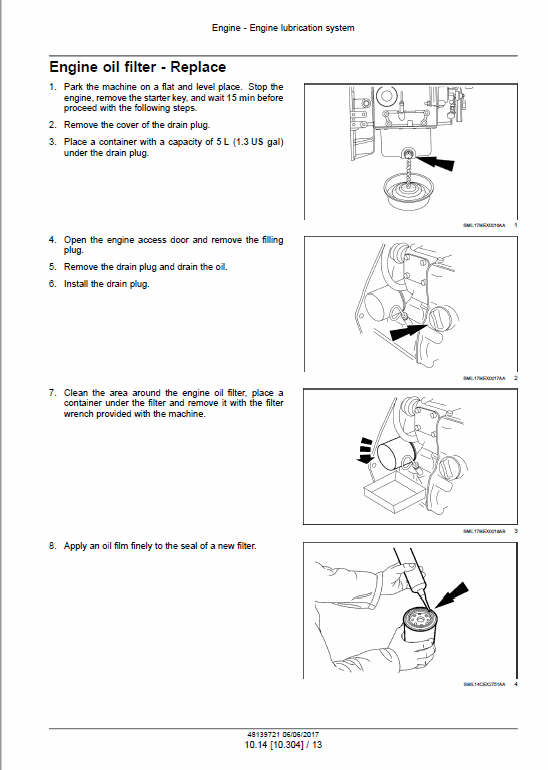

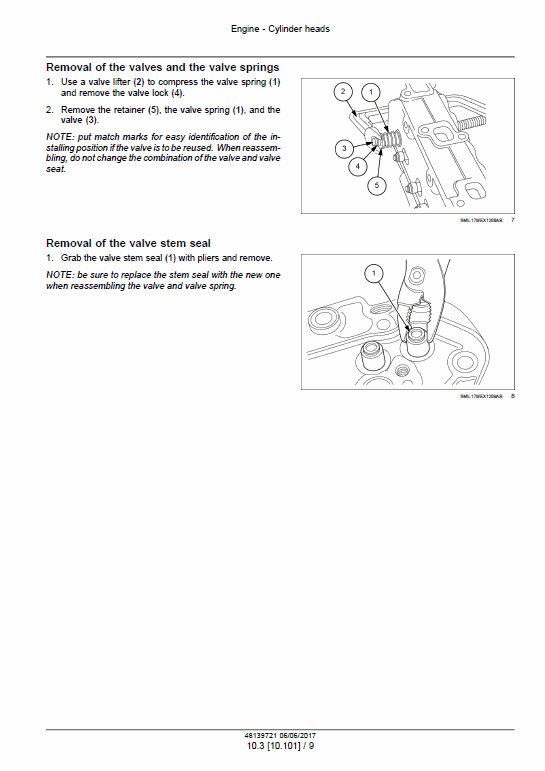

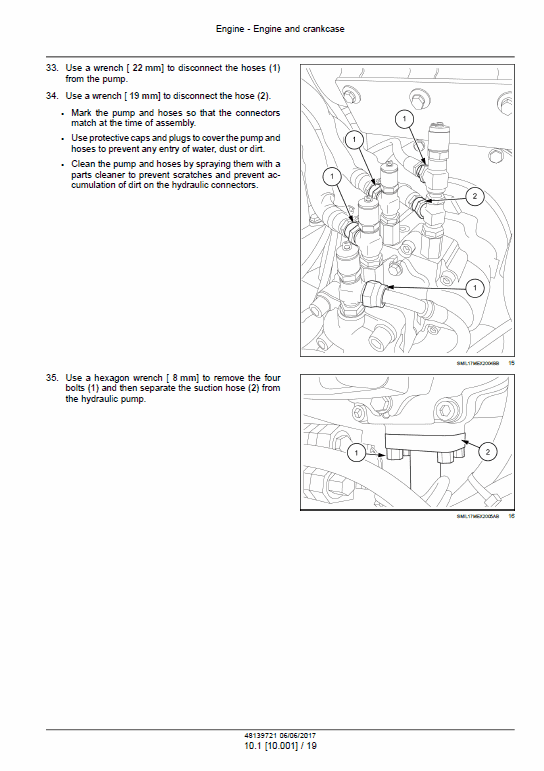

Manual Included: • Service Manual: 1183 pages Specifications: • Brand: New Holland • Model: CX18C • Type: Mini Excavator • Manuals: Service Manual • Publication Numbers: 48139721 (June 2017) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Hydraulics System Frames and Ballasting Tracks and Track Suspension Electrical System Booms, dippers and buckets Dozer Blade and Arm Platform, cab, bodywork and decals Electrical Schematic Hydraulic Schematic Manual Extract: Radiator – Engine – Disassemble 1. Prepare a clean, flat working surface on a workbench large enough to accommodate the engine components. 2. Discard all used gaskets, O-rings and seals. Use new gaskets, O-rings and seals during reassembly of engine. 3. Identify all parts and their location using an appropriate method. It is important that all parts are returned to the same position during the reassembly process. 4. Remove the electrical connections, the intake and exhaust system connections, and fuel supply lines from the engine. 5. Drain the engine coolant from the radiator and cylinder block. 6. Remove the engine from the machine. Mount the engine to a suitable engine repair stand having adequate weight capacity. NOTICE: be sure to secure the engine solidly to prevent injury or damage to parts due to the engine falling during work on the engine. 7. Clean the engine by washing with solvent, air or steam cleaning. Carefully operate so as to prevent any foreign matter or fluids from entering the engine or any fuel system or electrical components remaining on the engine. 8. Drain the engine oil into a suitable container. 9. Remove the cylinder head (refer to Cylinder heads Disassemble (10.101)).
