Case CX220C Series 2 Crawler Excavator Service Manual Workshop Guide

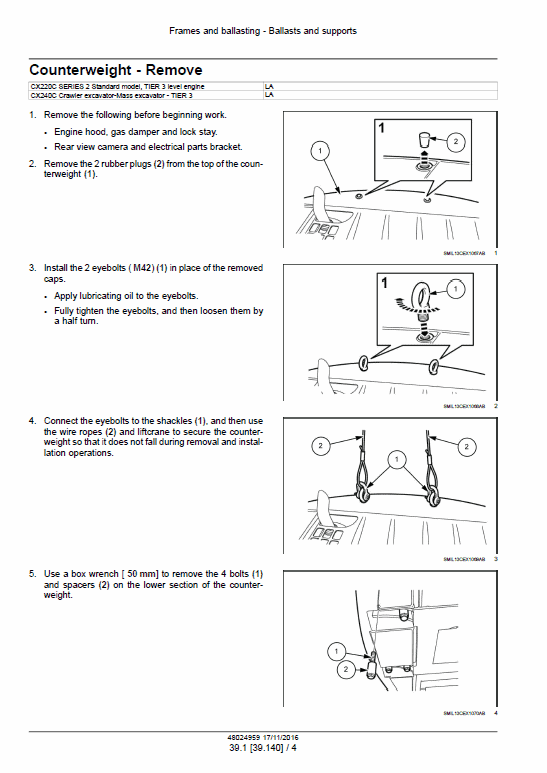

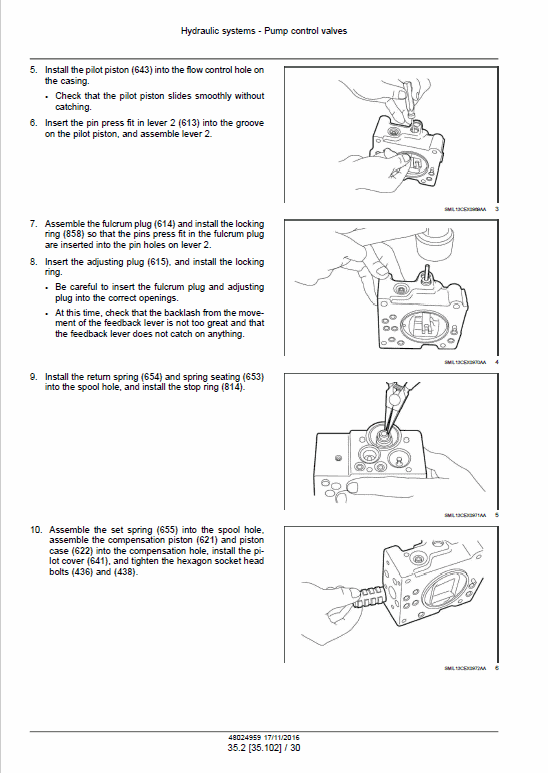

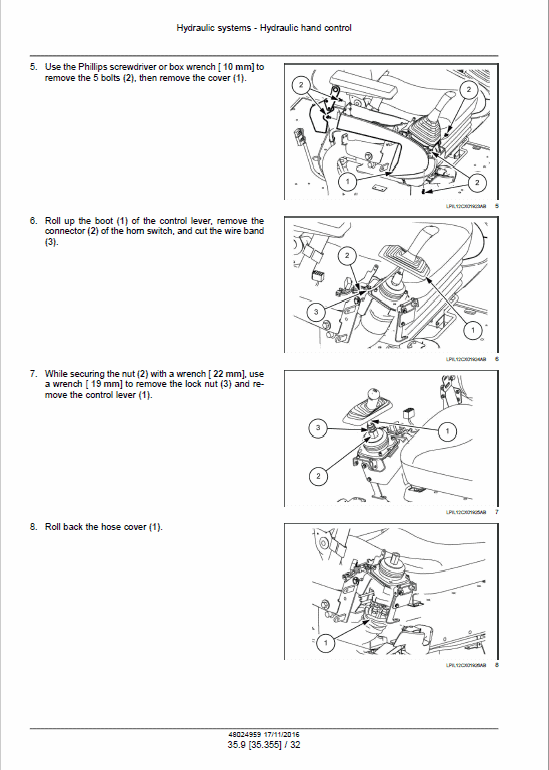

Manual Included: • Service Manual: 2319 Pages Specifications: • Brand: New Holland • Model: CX220C Series 2 • Type: Excavator • Manuals: Service Manual • Publication Numbers: 48024959 (Nov 2016) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Hydraulics System Frames and Ballasting Tracks and Track Suspension Cab Climate Control Electrical System Booms, dippers and buckets Platform, cab, bodywork and decals Special Tools Index Manual Extract: Stacked control valves – Inspect Inspect all surfaces of each part for burrs, scratches, gouges, and other defects. 1. Inspect the valve housing load check seat surface for scratches, gouges, and also for debris, dents, rust. Repair any minor scratches with an oilstone. 2. Check that there are no scratches, dents, etc. on the outer edge of the spool. Repair any small scratches with an oilstone. 3. Sliding parts must all move easily. Also, all grooves and paths must be free of foreign matter. 4. If a spring is broken or extremely deformed or worn, replace it. 5. If relief valve operation is poor, inspect according to "Troubles and countermeasures relief valve". 6. Replace all O-rings and backup rings from disassembled parts. 7. After removing caps or plugs, check for any paint fragments around the body opening or plug seating surface. (If paint fragments were to get inside the valve, they could jam up or clog up the valve,
