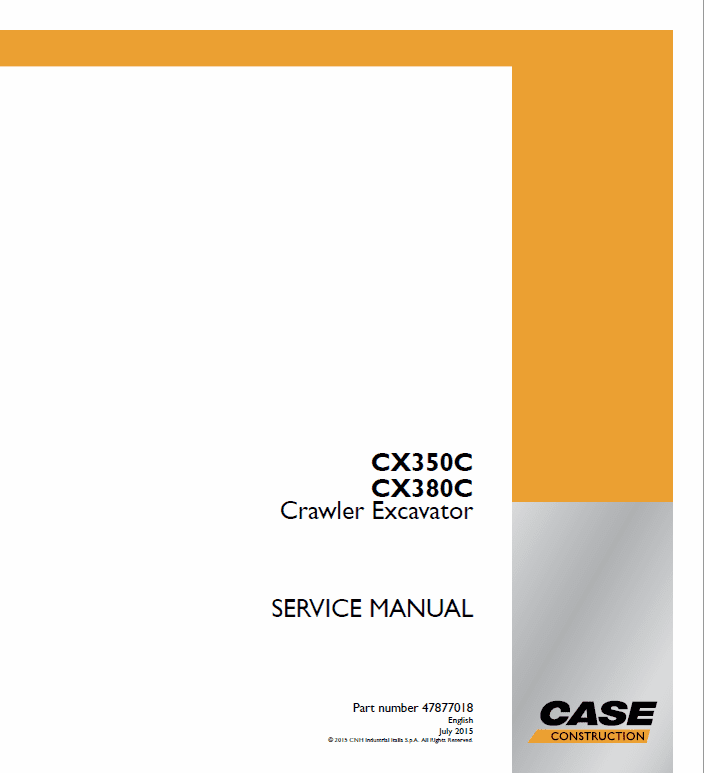

Case CX350C, CX370C, CX380C Excavator Service Manual Workshop Guide

Manual Included: • Service Manual: 2645 Pages, 3067 Pages And 1963 Pages Specifications: • Brand: New Holland • Model: CX350C, CX380C and CX350C, CX370C • Type: Excavator • Manuals: Service Manual • Publication Numbers: 84402827B (May 2011), 47877018 (Jul 2015), 48063132, 47795406 (Oct 2015) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Hydraulics System Frames and Ballasting Tracks and Track Suspension Cab Climate Control Electrical System Booms, dippers and buckets Dozer Blade and Arm Platform, cab, bodywork and decals Special Tools Index Hydraulic Schematics Electrical Schematics Manual Extract: Bucket – Install 1. Clean each pin and pin hole. 2. Place the back of the bucket parallel to the ground. Use a hammer (4) to push in the bucket side pin (3) and arm side pin (2), and then install the bucket (1). • If the pin is hard to insert, there is a load on the pin. Do not force it in. Adjust the bucket installation position. • When inserting the pin, be careful not to damage the installed O-rings or dust seals. 3. Install the bolts (1) and nuts (2) to the bucket and arm side pins. • When installing the pin bolts, leave about 1 – 2 mm (0.039 – 0.079 in) of gap between both nuts and the retaining ring. • Grease up. Identify the Tier Level of your Equipment (Read our Article on Tier Level )
