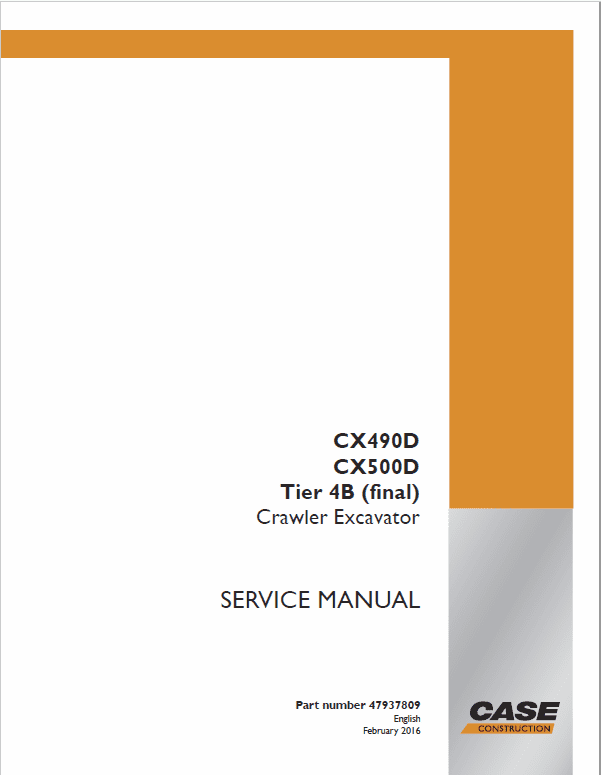

Case CX490D, CX500D Crawler Excavator Service Manual Workshop Guide

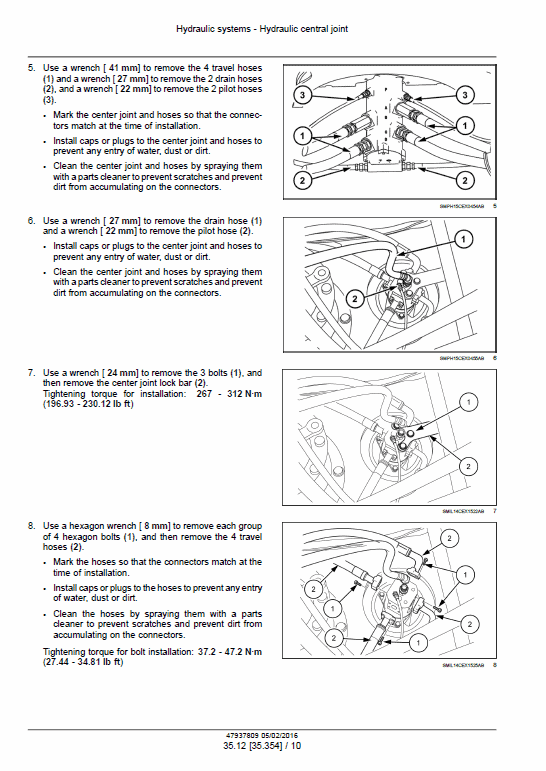

Manual Included: • Service Manual: 3480 pages Specifications: • Brand: New Holland • Model: CX490D, CX500D • Type: Excavator • Manuals: Service Manual • Publication Numbers: 47937809 (Feb 2016) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Hydraulics System Frames and Ballasting Tracks and Track Suspension Cab Climate Control Electrical System Booms, dippers and buckets Platform, cab, bodywork and decals Special Tools Index Hydraulic Schematics Electrical Schematics Manual Extract: EGR cooler removal 1. Disconnect the air leak pipe (3) from the engine assembly. 2. Disconnect the water charge pipe from the EGR cooler duct. 3. Disconnect the EGR cooler water hose (1) from the EGR cooler. 4. Remove the water return pipe (2) from the EGR cooler. 5. Remove the EGR cooler A (6) from the EGR cooler duct A (7) and the EGR cooler D (5). 6. Remove the EGR cooler B (2) from the EGR cooler duct B (1) and the EGR cooler C (3). 7. Remove the EGR cooler duct A (7) from the exhaust manifold and the bracket. 8. Remove the EGR cooler duct B (1) from the exhaust manifold and the bracket. 9. Remove the bracket from the cylinder head. 10. Remove the EGR cooler D (5) from the EGR valve duct (4). 11. Remove the EGR cooler C (3) from the EGR valve duct (4). 12. Remove the EGR valve duct (4) from the EGR valve
