Case CX700B Crawler Excavator Service Manual Workshop Guide

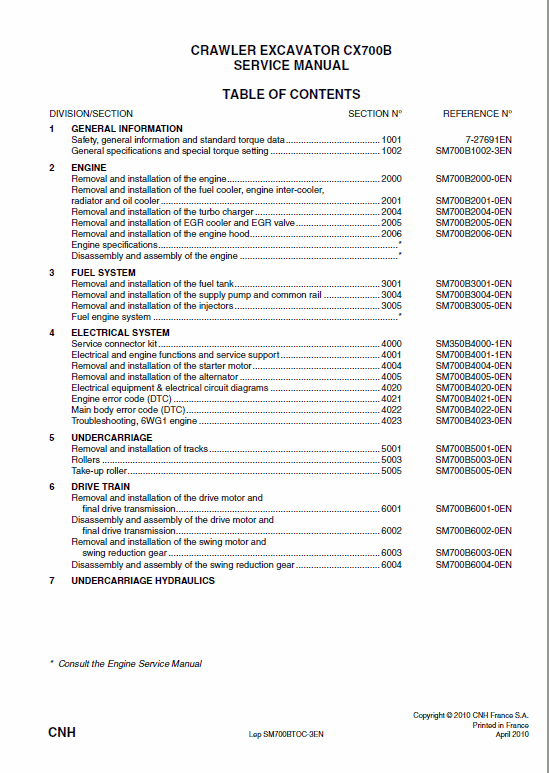

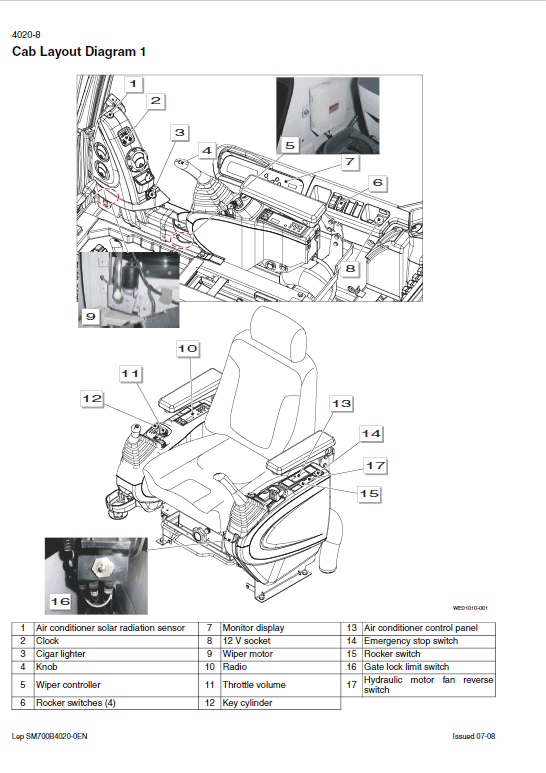

Manual Included: • Service Manual: 1488 Pages Specifications: • Brand: New Holland • Model: CX700B • Type: Excavator • Manuals: Service Manual • Publication Numbers: 84124939D (April 2010) • Language: English • Format: PDF Description Table of Contents General Information Engine Fuel System Frames and ballasting Electrical systems Undercarriage Drive Train Upper structure Hydraulics Upper structure Manual Extract: REMOVAL OF TAKE-UP ROLLER 1 Removal of take-up roller [1] Remove the shoe assembly. See the "Removal and Installation of Shoe Assembly" procedure. [2] Use a crowbar (3) to pull off the take-up roller (1) from the side frame (2). [3] Install the lifting equipment (4) on the take-up roller (1) and hang it from the side frame (2) with the crane. [4] Place the take-up roller (1) onto wood planks (6) as in the diagram. Use a wrench to remove the bolt (5) and separate the take-up roller and the grease cylinder (4).
