Case CX750D Crawler Excavator Service Manual Workshop Guide

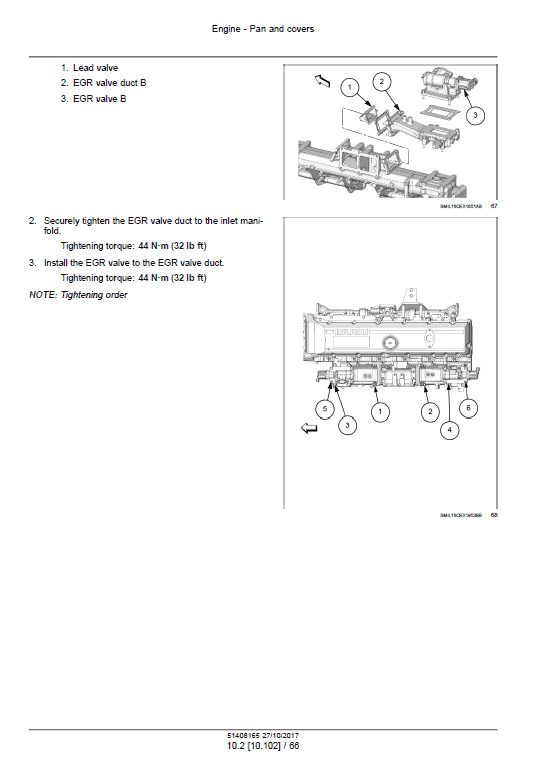

Manual Included: • Service Manual: 4095 Pages Specifications: • Brand: New Holland • Model: CX750D • Type: Excavator • Manuals: Service Manual • Publication Numbers: 51408165 (Oct 2017) • Language: English • Format: PDF Description Table of Contents Contents Introduction Machine completion and equipment Engine Hydraulic systems Frames and ballasting Tracks and track suspension Cab climate control Electrical systems Booms, dippers and buckets Plateform, cab, bodywork and decals Special Tool index Hydraulic Schematics Electrical Schematics Manual Extract:  Fuel filter installation 1. Install the fuel filter to the cylinder head assembly. NOTE: It varies depending on the actual machine. Fuel pipe installation 1. Temporarily tighten the fuel pipe onto the fuel supply pump. 2. Temporarily tighten the fuel pipe onto the fuel filter. 3. Securely tighten the fuel pipe onto the fuel supply pump. Tightening torque: 41 N·m (30 lb ft) 4. Securely tighten the fuel pipe onto the fuel filter. Tightening torque: 41 N·m (30 lb ft) 5. Install the clip to the fuel feed pipe. Tightening torque: 9 N·m (80 lb in)
