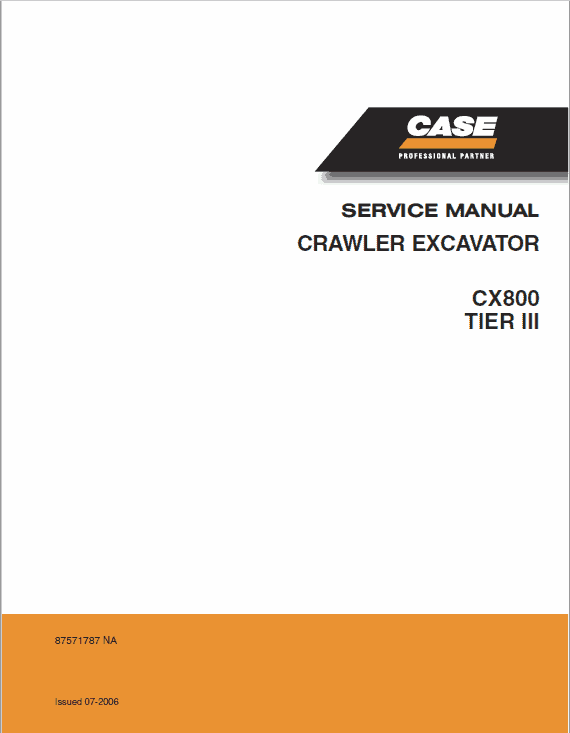

Case CX800 Excavator Service Manual Workshop Guide

Manual Included: Service Manual: 618 pages and 1094 pages Specifications: Brand: Case Model: CX800 Tier 3 Type: Excavator Manuals: Service Manual Publication Numbers: 87571787 NA (JUL 2006) Language: English Format: PDF Description How to Use this Manual The Case CX800 Excavator manual is in different Sections. Each Section is then divided into Chapters. Contents pages are available at the beginning of the manual, then inside every Section and inside every Chapter. An alphabetical Index is use as guide at the end of a Chapter. Page number references are present for every piece of technical information mention in the Chapter Contents or Chapter Index. Each Chapter details are into four Information types: Technical Data (specifications) for all the mechanical, electrical or hydraulic devices, components and, assemblies. Functional Data (how it works) for all the mechanical, electrical or hydraulic devices, components and assemblies. Diagnostic Data (fault codes, electrical and hydraulic troubleshooting) for all the mechanical, electrical or hydraulic devices, components and assemblies. Service data (remove disassembly, assemble, install) for all the mechanical, electrical or hydraulic devices, components and assemblies. All maintenance and repair interventions listed in this Case CX800 Service Manual must be performed exclusively by the Service Network of the Manufacturer or a repair professional who will comply strictly with the indications herein and using, when required, the prescribed special tools. Whoever performs service operations described herein without complying strictly with the instructions becomes solely responsible for any consequential damage that could occur.
