Case DV207, DV207HF Vibratory Roller Service Manual Workshop Guide

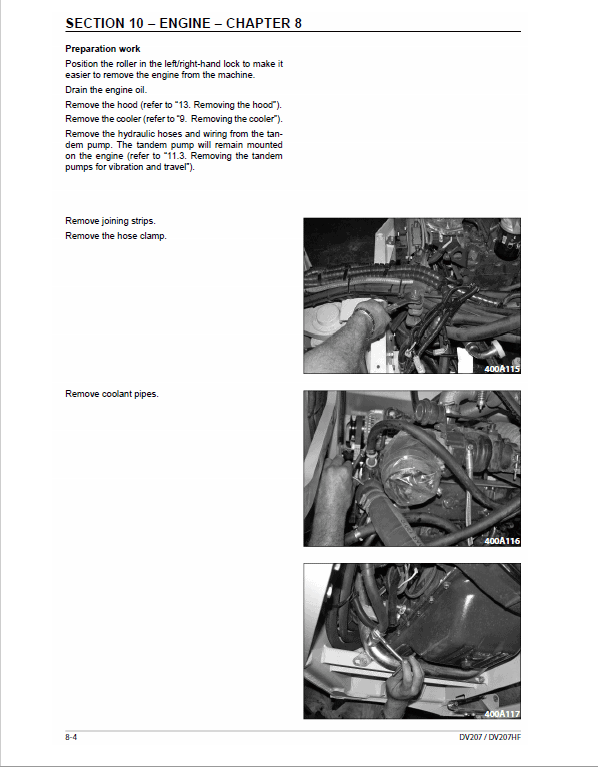

Manual Included: • Service Manual: 216 Pages & 218 Pages Specifications: • Brand: New Holland • Model: DV207, DV207HF • Type: Roller • Manuals: Service Manual • Publication Numbers: 47508259 (Feb 2013) • Language: English • Format: PDF Description Table of Contents Maintenance Engine Hydraulic System Frames Steering Axle and Wheels Cab Climate Control Electrical System Cab Index Manual Extract: Safety precautions during work on hydraulic circuits – Check that hydraulic circuits have been depressurized before removing them. Hydraulic oil that leaks under pressure could cause serious skin injury. – Mark parts, hoses and pipes before removing them. – Do NOT operate hydroelectric generators or hydro motors with no oil. – There is a scalding hazard when handling hot oil. – Do NOT heat oil over 160°C (320°F) – oil or its vapors could flame up. – Use lint-free cloth when wiping and cleaning hydraulic parts. – Use hydraulic oil – not lube grease – as lubricating agent during parts installation work. – Thoroughly clean the bolting before installation work; flush and blow out the hoses and pipes with air. – It is important to ALWAYS use new gaskets. – After hydraulic set replacement, flush the hydraulic circuit and clean the hydraulic tank. – Replace the oil filter element. – Fill the hydraulic circuit with clean oil of the specified viscosity – only with the engine switched off! – Wipe up any spilled oil. – Confirm that connections are tight with no oil leaks before pressurizing the system. – Upon completion of all of the work, check all connections. – Do NOT adjust the relief valves. – Reinstall all protective elements after the work is completed
